Wilwood Red Dynapro 6 Front Brake Package for Mazda 3 (Selected 2004–2013), Drilled and Slotted Rotors with Included Flexlines

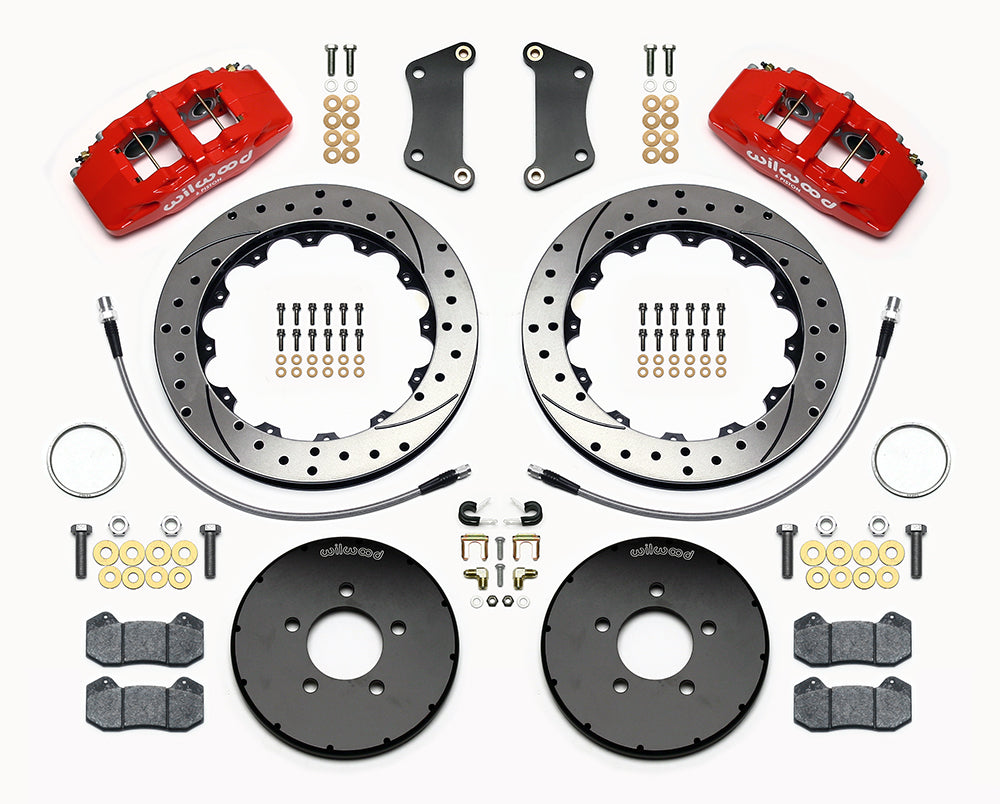

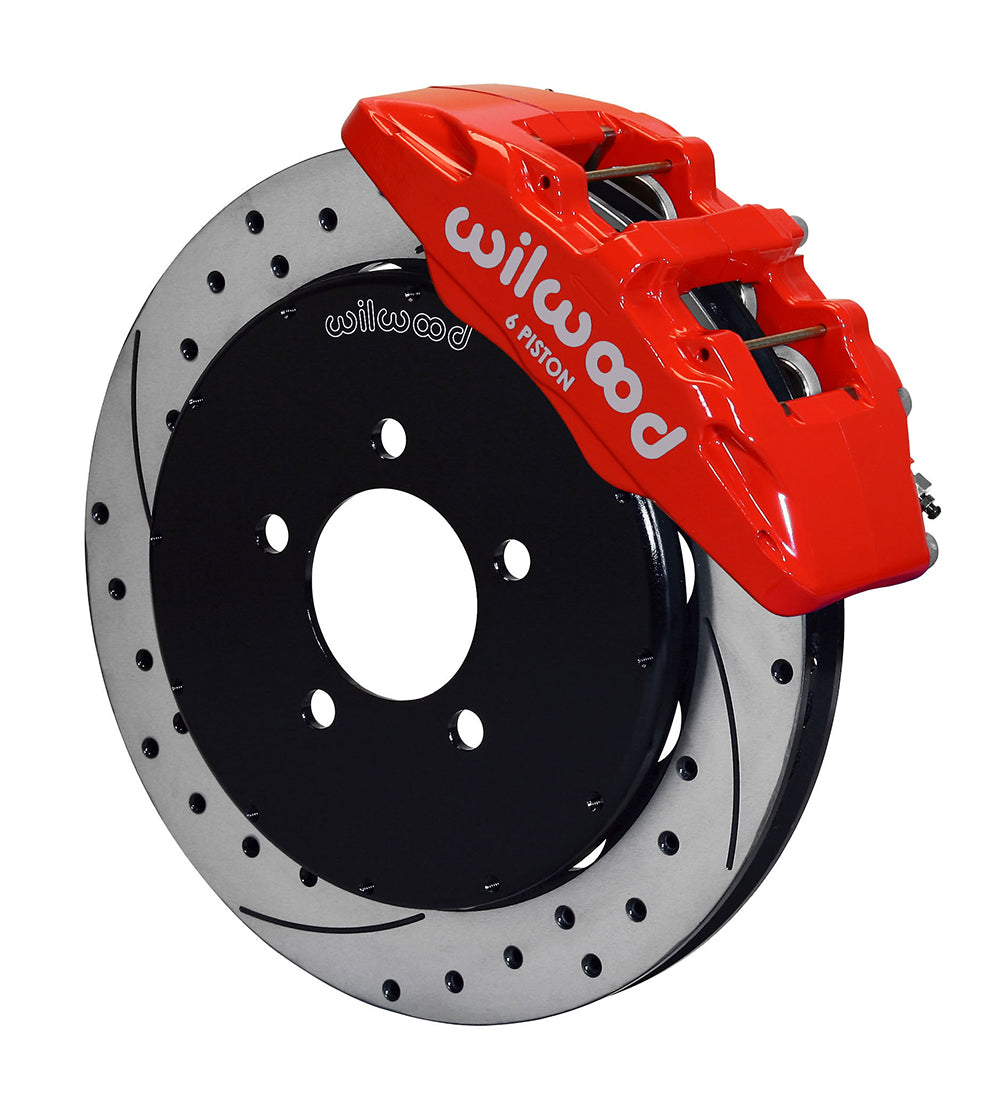

Red powder-coated Dynapro 6 calipers distinguish this front kit, which uses drilled-and-slotted 12.88-inch rotor rings on separate aluminum hats. The retained factory hubs, hydraulic output and ABS arrangement must match the Mazda 3 application identified for the package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It develops disc brake systems and components, designing and manufacturing calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. A correct conversion matches those individual components to the complete braking system.

Technical Details

• Wheel interface: 5 X 4.5 in; 5 X 114.3 mm. Rotor/hat wheel-stud clearance: 0.580 in; 14.73 mm.
• Nominal minimum wheel diameter: 17 in; 431.8 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

• Calipers: 6 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: Dynapro 6. Brake-pad compound: BP-10.

• Manufacturer: Wilwood; manufacturer part number: 140-13581-DR. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: Yes; matched line kit 220-13667, 20.00 inches nominal length.

• Rotor: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness. Material: Spec-37 Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
• Rotor-hat material: Aluminum. Hat offset: 0.470 inches; this hat dimension is separate from axle offset.
• Rotor surface finish: Black Electro Coat.

Fitment & Compatibility

Review the specific i, S, SP23, Mazdaspeed and other trim/year rows below. Confirm the wheel barrel and spokes clear the six-piston calipers and route the included hoses without stretching or contact at full lock. No master cylinder or replacement hub is supplied.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

PMB Performance can help work through the mounting and wheel-clearance details before purchase. Our parts and fitment support is backed by over 20 years of experience; include measurements of any modified axle or spindle.
