Wilwood Drilled Front Disc and Hub Conversion for Selected AMC Javelin/AMX/Ambassador/Rambler/Rebel/Matador/Hornet/Gremlin/Javelin AMX, Black Dynapro 6 Calipers (1969–1976)

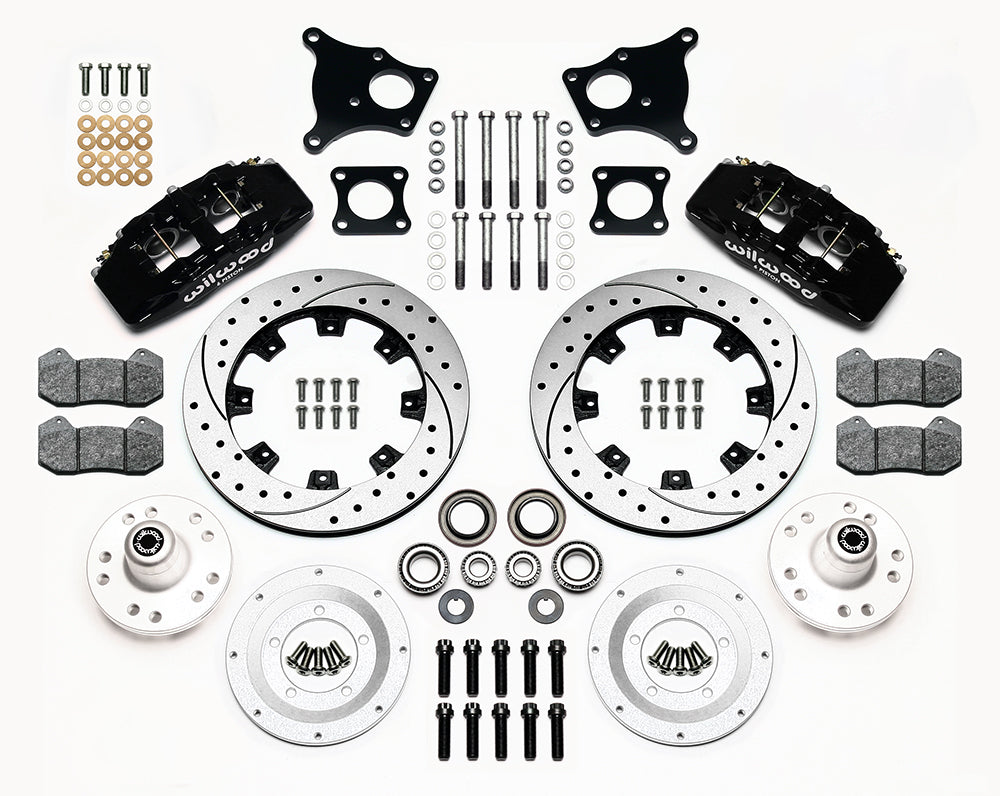

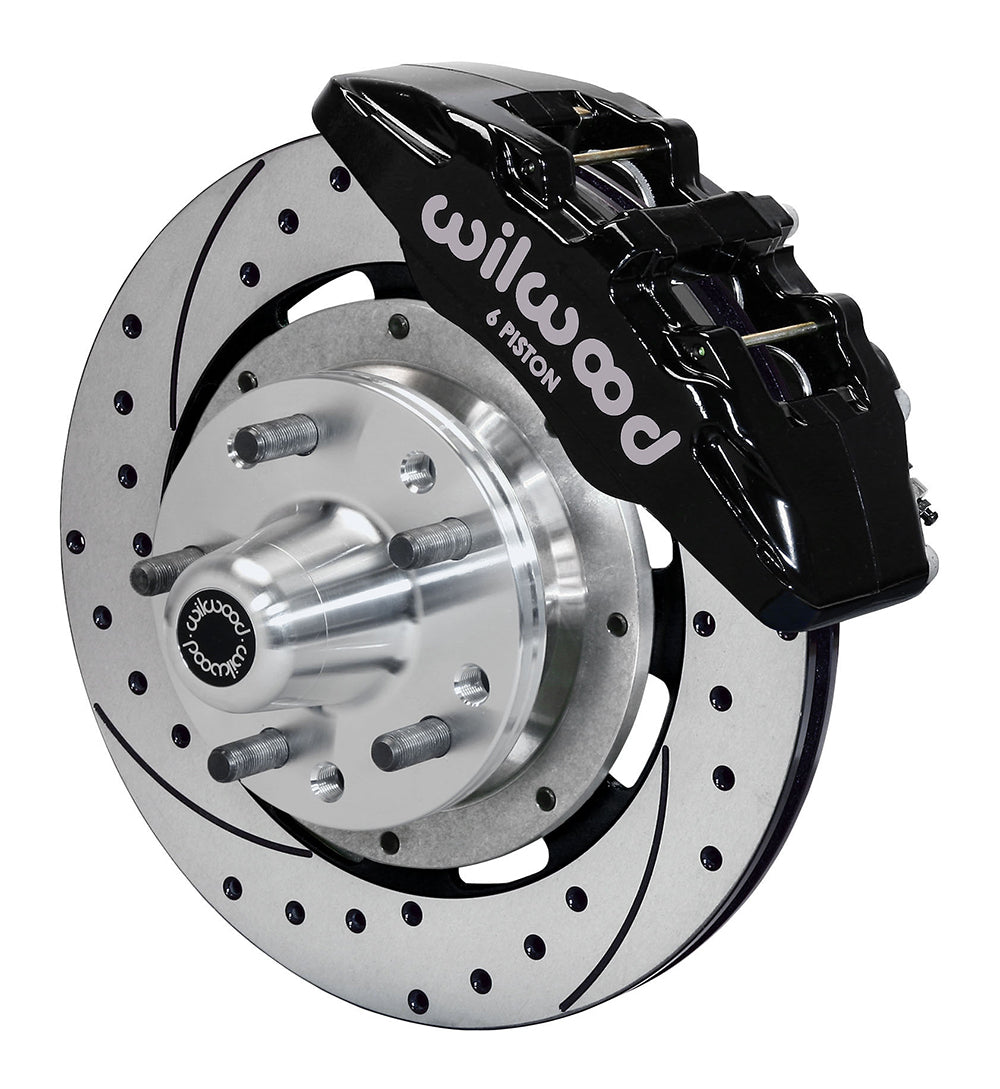

The SRP drilled-and-slotted rotor option pairs black six-piston calipers with separate aluminum hubs in this AMC front package. Correct spindle bearing journals are essential: sharing the AMC model name or wheel pattern does not make the Bendix version interchangeable. For this conversion, component matching remains essential. Its manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems for motorsport, street-performance and specialized applications; its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines selected to work within a complete system.

Technical Details

• Rotor: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
• Rotor surface finish: Black Electro Coat.

• Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm. Wheel-stud specification: 1/2-20 in.
• Nominal minimum wheel diameter: 15 in; 381 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

• Manufacturer: Wilwood; manufacturer part number: 140-13554-D. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Separate wheel hubs included: Yes.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: No. Select the vehicle-end connection and routing separately.

• Calipers: 6 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: Dynapro 6. Brake-pad compound: BP-10.

Fitment & Compatibility

Confirm the Kelsey-Hayes bearing sizes given in DS1036 and the original disc-spindle condition for the exact model below. The kit may fit some 15-inch wheels after a diagram check. Flexible hoses are purchased separately; the listed front line reference is not an included hose set.

The separate front flexline reference is 220-8307 (18 inches). Some 15-inch wheels may clear this kit, subject to the installation drawing; the minimum diameter is not a universal wheel-fit claim.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

For help matching the conversion to your existing hardware, contact PMB Performance with the vehicle details and the relevant measurements. Our parts and fitment work draws on over 20 years of experience.
