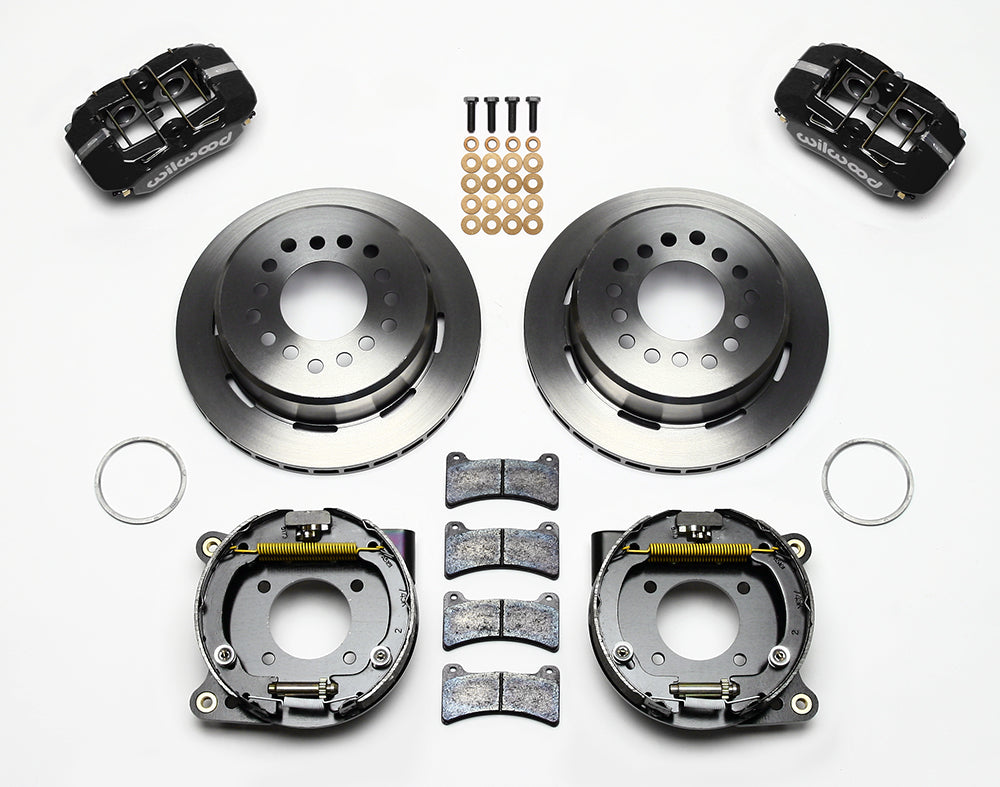

Wilwood BOP rear Dynapro Low-Profile parking-brake kit laid out with black calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts

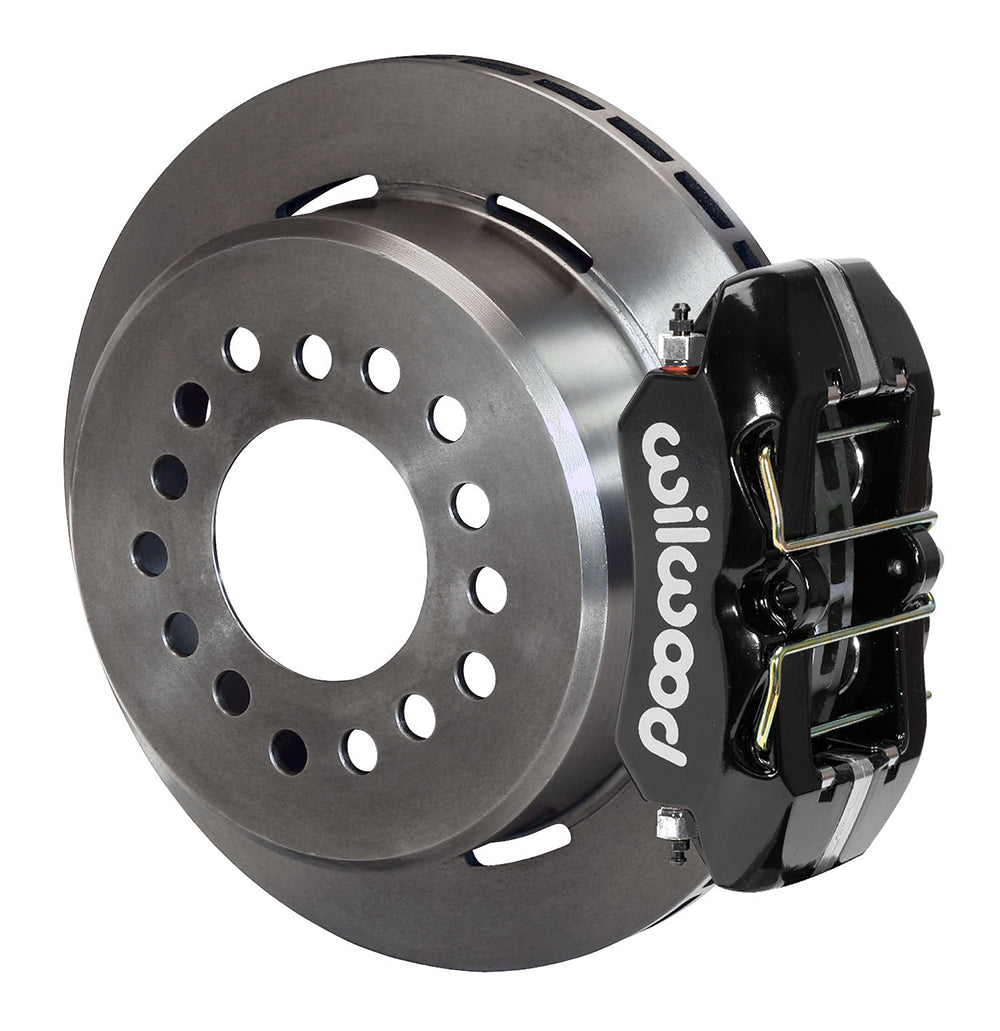

Wilwood BOP rear Dynapro Low-Profile parking-brake kit assembly example, showing a black caliper positioned over the plain-face rotor and mounting hat
Wilwood BOP rear Dynapro Low-Profile parking-brake kit laid out with black calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts
Wilwood BOP rear Dynapro Low-Profile parking-brake kit assembly example, showing a black caliper positioned over the plain-face rotor and mounting hat

Wilwood Black Dynapro Low-Profile Rear Parking-Brake Kit, Plain 11-Inch Rotors, BOP 2.75-Inch Bearing and 2.75-Inch Axle Offset

SKU: 140-13513

$1,114.44 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Low-profile Dynapro calipers allow this BOP rear conversion to use an 11-inch rotor package where wheel space is limited. The black four-piston service calipers work with BP-10 pads, and the separate internal-shoe assemblies provide mechanical parking-brake operation. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines, with each component chosen to suit the complete brake system.

Technical Details

  • Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm. Rotor/hat wheel-stud clearance: 0.52 in; 13.21 mm.
  • Nominal minimum wheel diameter: 14 in; 355.6 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: BOP 2.75. Flange/axle offset: 2.75 in; 69.85 mm.
  • Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Forged Dynapro Low Profile. Brake-pad compound: BP-10.
  • Manufacturer: Wilwood; manufacturer part number: 140-13513. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Rotor: 11.00 in; 279.4 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: Plain Face.
  • Rotor surface finish: Plain.

Fitment & Compatibility

Use only with the BOP housing-end configuration, 2.75-inch bearing and 2.75-inch axle offset shown in DS1033. Some 14-inch wheels may clear, but their barrel and spokes must match the diagram. Hoses and vehicle-specific parking-cable connections are separate.

Manufacturer Documents

Ask PMB Performance for assistance if the installed hardware differs from the documented application. With over 20 years of parts and fitment experience, we can help identify the measurements needed to check the conversion.
