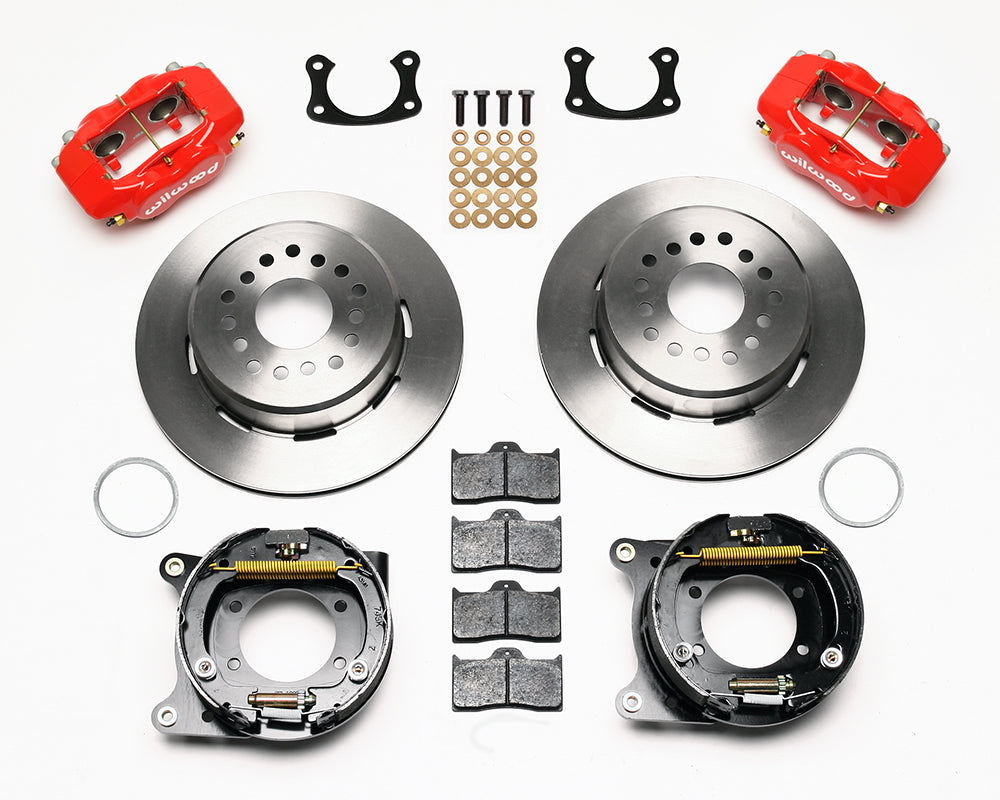

Wilwood BOP rear Dynalite parking-brake kit laid out with red calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts

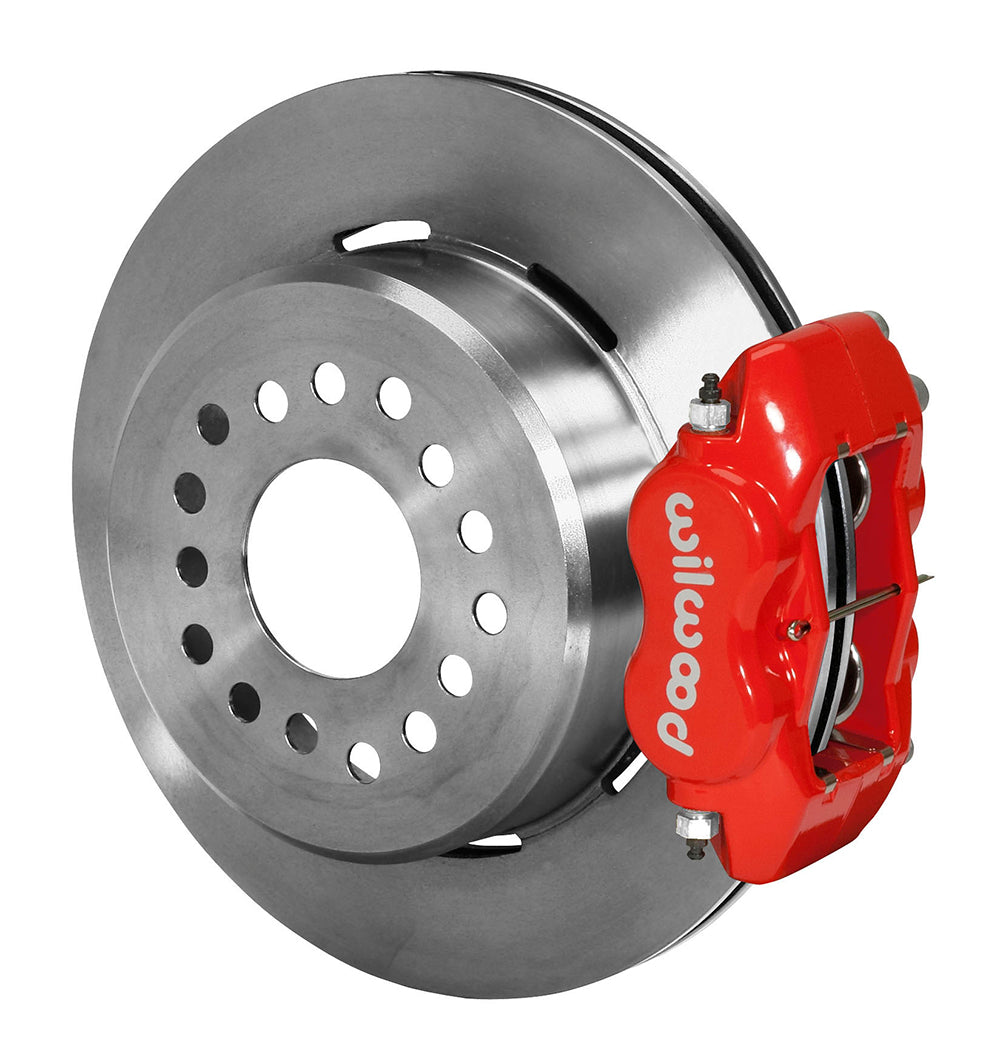

Wilwood BOP rear Dynalite parking-brake kit assembly example, showing a red caliper positioned over the plain-face rotor and mounting hat
Wilwood BOP rear Dynalite parking-brake kit laid out with red calipers, plain-face rotors, internal parking-shoe assemblies and mounting parts
Wilwood BOP rear Dynalite parking-brake kit assembly example, showing a red caliper positioned over the plain-face rotor and mounting hat

Wilwood Plain-Face Rear Brake Package with Red Dynalite Calipers and Parking Shoes for BOP 2.75-Inch Bearing, 2.75-Inch Offset Axles

SKU: 140-13511-R

$1,132.36 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red Dynalite Internal calipers are paired with plain iron rotors in this rear disc-and-parking-brake conversion. The concealed mechanical shoes act inside the drum portion of the rotors, leaving the red hydraulic calipers dedicated to the service-brake circuit. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components serving motorsport, street-performance and specialized applications. The range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines; their individual specifications must be matched to the complete brake system.

Technical Details

  • Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Forged Dynalite Internal. Brake-pad compound: BP-10.
  • Rotor: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: Plain Face.
  • Rotor surface finish: Plain.
  • Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm. Rotor/hat wheel-stud clearance: 0.52 in; 13.21 mm.
  • Nominal minimum wheel diameter: 15 in; 381 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: BOP 2.75. Flange/axle offset: 2.75 in; 69.85 mm.
  • Manufacturer: Wilwood; manufacturer part number: 140-13511-R. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.

Fitment & Compatibility

Verify the BOP 2.75-inch-bearing housing end and 2.75-inch axle offset using the installation drawing and worksheet. Check the chosen lug pattern and wheel-stud size. Cable adaptation and flexible brake lines are additional installation requirements, not included kit contents.
