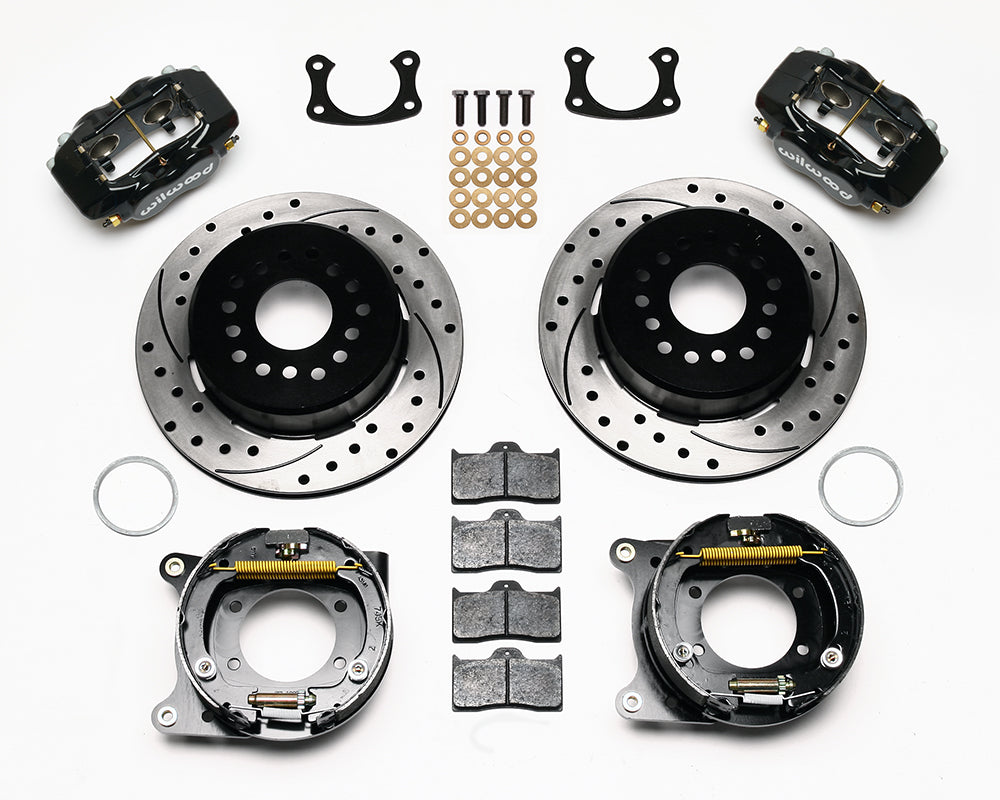

Wilwood BOP rear Dynalite parking-brake kit laid out with black calipers, drilled and slotted rotors, internal parking-shoe assemblies and mounting parts

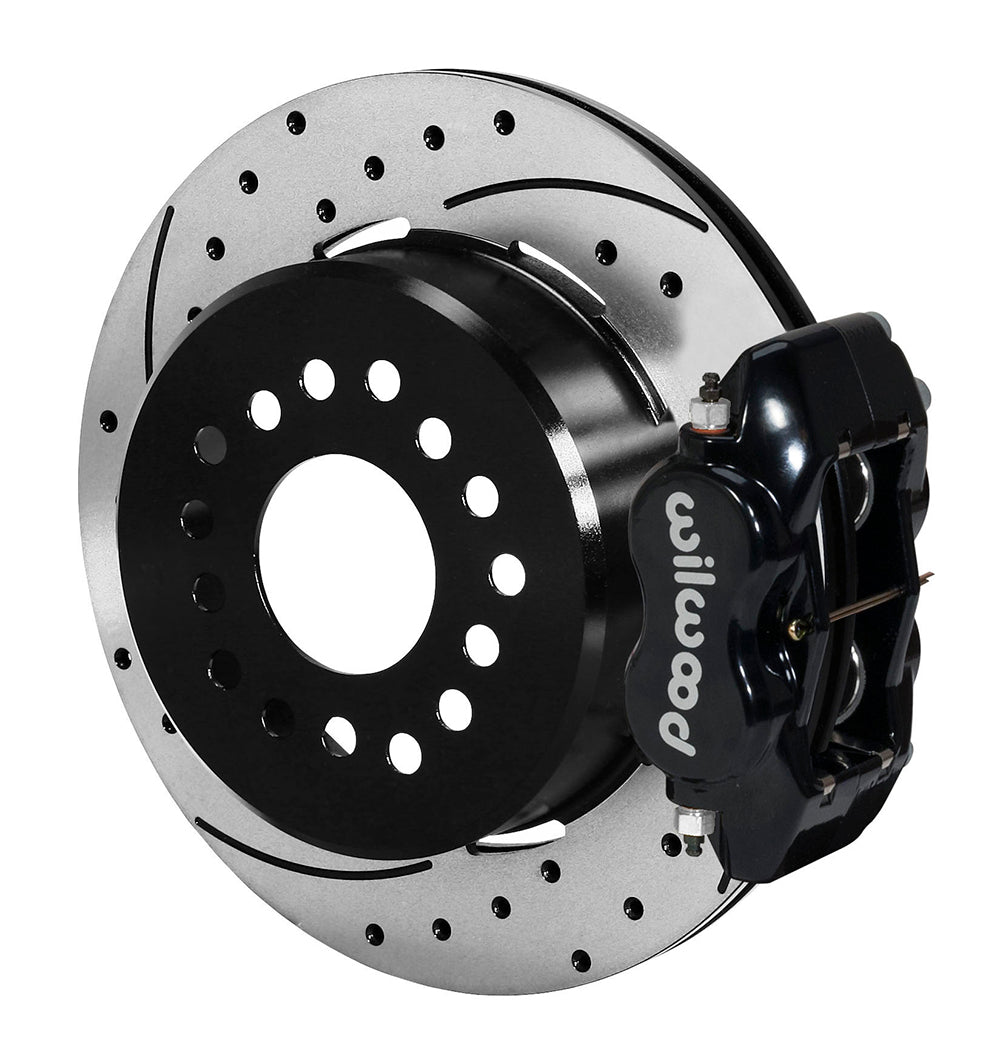

Wilwood BOP rear Dynalite parking-brake kit assembly example, showing a black caliper positioned over the drilled and slotted rotor and mounting hat
Wilwood BOP rear Dynalite parking-brake kit laid out with black calipers, drilled and slotted rotors, internal parking-shoe assemblies and mounting parts
Wilwood BOP rear Dynalite parking-brake kit assembly example, showing a black caliper positioned over the drilled and slotted rotor and mounting hat

Wilwood Drilled 12.19-Inch Rear Parking-Brake Conversion, Black Dynalite Calipers, for BOP Axles with 2.75-Inch Bearing and Offset

SKU: 140-13511-D

$1,274.68 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The drilled-and-slotted rotor option retains the internal-shoe parking brake and black Dynalite calipers of this BOP axle package. Each rotor's drum section encloses the parking shoes; the four-piston hydraulic caliper handles normal braking through BP-10 pads. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It develops disc brake systems and components, designing and manufacturing calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. A correct conversion matches those individual components to the complete braking system.

Technical Details

  • Manufacturer: Wilwood; manufacturer part number: 140-13511-D. Supplied quantity: Sold as a kit.
  • Application category: Rear Brake Kits - Street Performance. Axle/spindle category: Rear Kits. Brake function: Disc; Parking.
  • Separate wheel hubs included: No. Retain only the hub arrangement specified for this kit.
  • Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
  • Flexible brake lines included: No. Select the vehicle-end connection and routing separately.
  • Internal parking-shoe assemblies are included. The vehicle cable/clevis connection is separate; parking cable kit 330-9371 is a separately selected option, not included.
  • Rotor: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness. Material: Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
  • Rotor surface finish: Black Electro Coat.
  • Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Black. Finish: Black Powder Coat. Inlet thread: 1/8-27 NPT.
  • Caliper family: Forged Dynalite Internal. Brake-pad compound: BP-10.
  • Wheel interface: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm. Rotor/hat wheel-stud clearance: 0.52 in; 13.21 mm.
  • Nominal minimum wheel diameter: 15 in; 381 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.
  • Housing/spindle flange: BOP 2.75. Flange/axle offset: 2.75 in; 69.85 mm.

Fitment & Compatibility

Confirm that both the bearing diameter and housing-to-axle-flange offset are 2.75 inches; these dimensions describe different interfaces. The kit does not supply hoses or the cable/clevis set. Verify available wheel space using DS1032 rather than wheel diameter alone.
