Wilwood Front Plain-Face Rotor/Hub and Red Dynalite-M Caliper Kit for Selected Mercury Cougar/Montego/Cyclone/Comet and Ford Mustang/Maverick/Falcon/Fairlane/Torino/Ranchero (1970–1974)

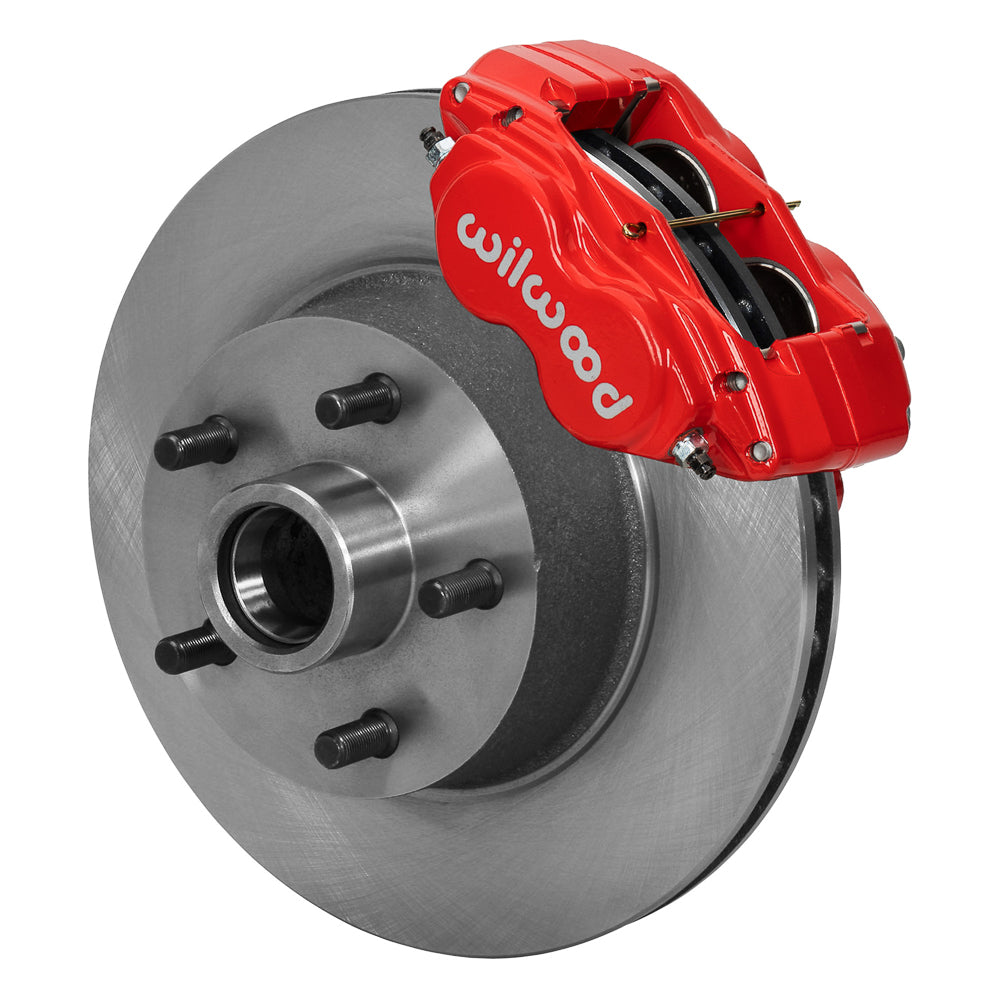

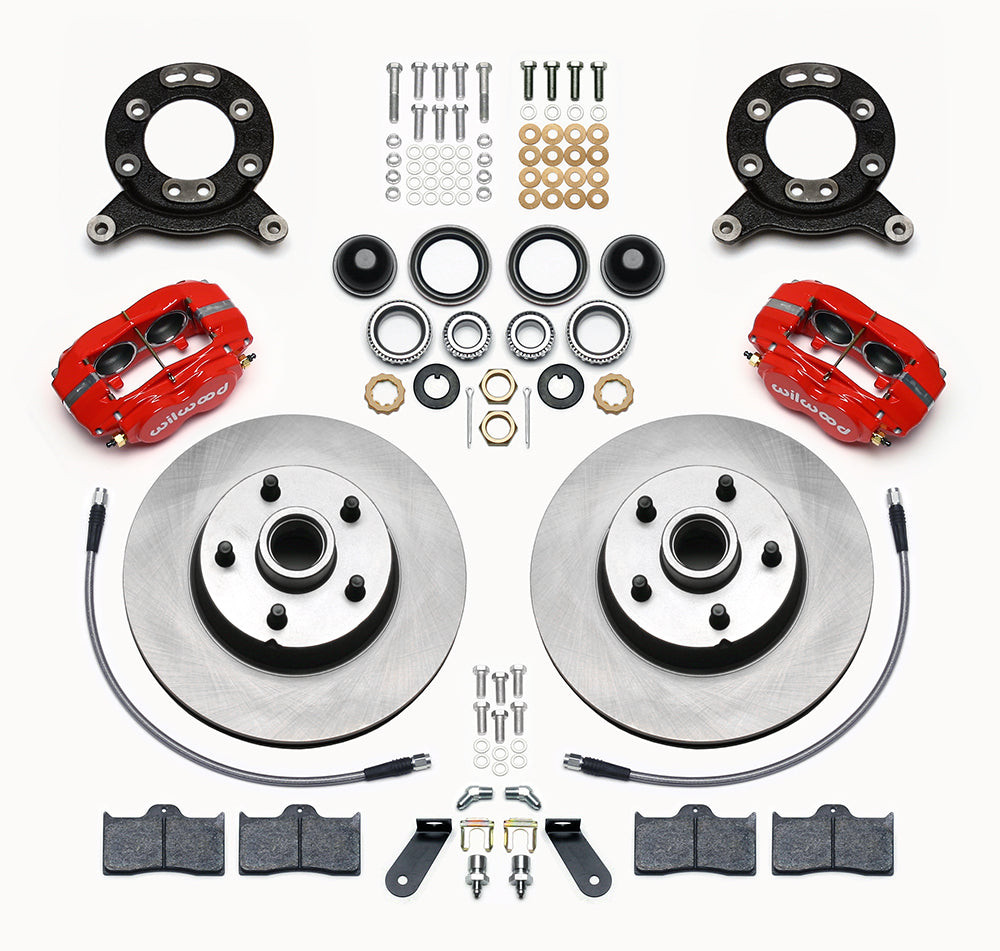

Plain iron friction faces and red powder-coated calipers identify this version of the later-spindle front kit. The rotor and hub are a single casting, with the mounting brackets, pads, bearing hardware and flexlines supplied to complete the specified two-wheel conversion. Bill Wood established Wilwood Engineering in 1977; the company is based in Camarillo, California. Its disc brake design and manufacturing range covers calipers, rotors, master cylinders, valves, fittings and brake lines, as well as complete systems. Those products serve motorsport, street-performance and specialized applications, with the individual components selected to match the braking system as a whole.

Technical Details

• Manufacturer: Wilwood; manufacturer part number: 140-13477-R. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Hubs are integral with the one-piece iron rotor castings. No separate hub assemblies are supplied; the rotor/hubs include the wheel-hub function.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: Yes; matched line kit 220-9195, 18.00 inches nominal length.

• Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: Forged Dynalite-M. Brake-pad compound: BP-10.

• Rotor: 11.29 in; 286.77 mm outside diameter; 0.94 in; 23.88 mm thickness. Material: Iron. Construction: Vented. Friction-face style: Plain Face.
• Rotor surface finish: Plain.

• Wheel interface: 5 X 4.5 in; 5 X 114.3 mm. Wheel-stud specification: 0.50 in; 12.70 mm.
• Nominal minimum wheel diameter: 14 in; 355.6 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

Fitment & Compatibility

Retain only the factory spindle configuration documented for the exact model and year below. The kit may clear suitable 14-inch disc-brake wheels after a diagram check; it does not fit factory drum-brake wheels. A car fitted with replacement spindles needs its spindle identity checked separately.

A master-cylinder change can require modification of the existing pushrod assembly. The separate universal parking-cable note applies only if the rear brakes are also being converted; this front kit does not supply a rear parking-brake conversion.

Where a different chassis connection or length is needed, universal flexline references are 220-7056 (14 inches), 220-7699 (16 inches) and 220-8307 (18 inches). These are alternatives to assess, not additional sets included in the kit.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

PMB Performance can help work through the mounting and wheel-clearance details before purchase. Our parts and fitment support is backed by over 20 years of experience; include measurements of any modified axle or spindle.
