Wilwood Red Four-Piston Front Brake Kit for Selected Ford Falcon/Fairlane/Maverick/Mustang/Ranchero/Torino and Mercury Cyclone/Cougar/Comet/Montego, Drilled Dynalite Rotor/Hubs (1970–1974)

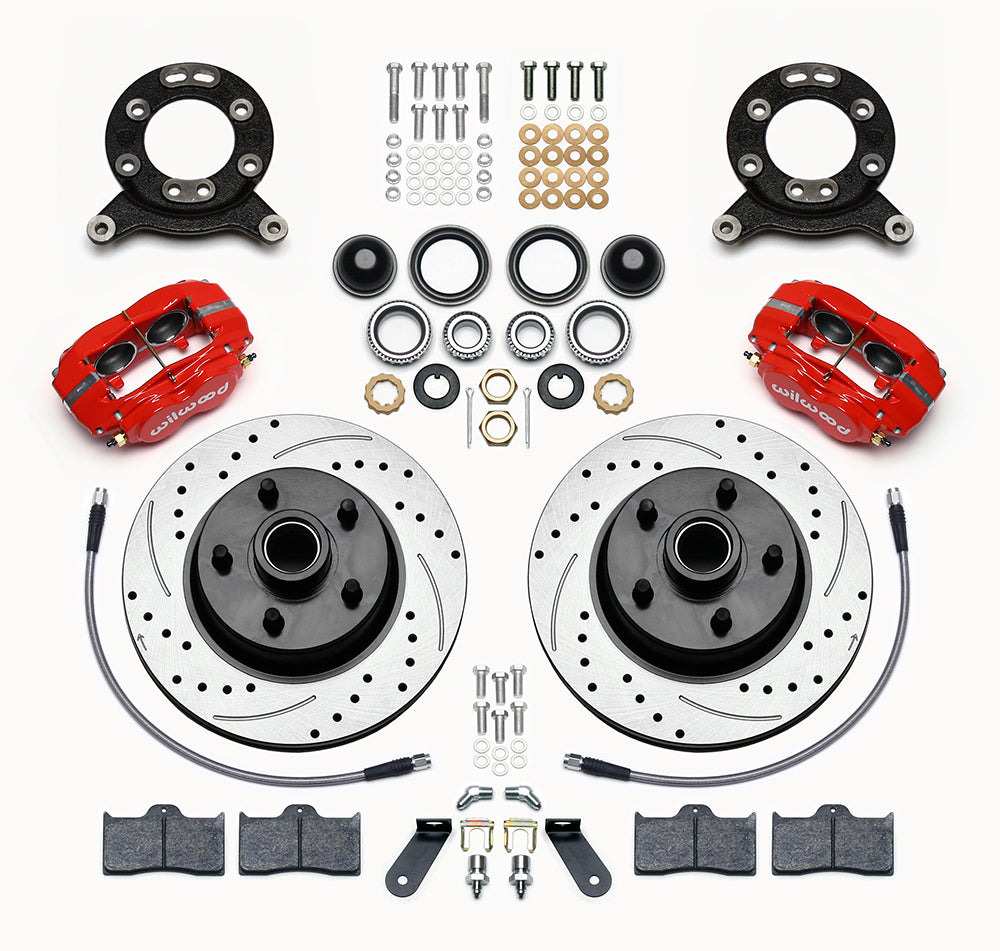

This red-caliper package converts the specified later Ford and Mercury front spindles using drilled-and-slotted rotor/hub assemblies. Four opposed pistons operate each Dynalite-M caliper, while the supplied brackets and line kit provide the mechanical and hydraulic interfaces for the matched installation. The kit comes from Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized installations. Alongside calipers and brake rotors, its range includes master cylinders, valves, fittings and brake lines, all requiring selection around the complete system's operating requirements.

Technical Details

• Wheel interface: 5 X 4.5 in; 5 X 114.3 mm. Wheel-stud specification: 0.50 in; 12.70 mm.
• Nominal minimum wheel diameter: 14 in; 355.6 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

• Manufacturer: Wilwood; manufacturer part number: 140-13477-DR. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Hubs are integral with the one-piece iron rotor castings. No separate hub assemblies are supplied; the rotor/hubs include the wheel-hub function.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: Yes; matched line kit 220-9195, 18.00 inches nominal length.

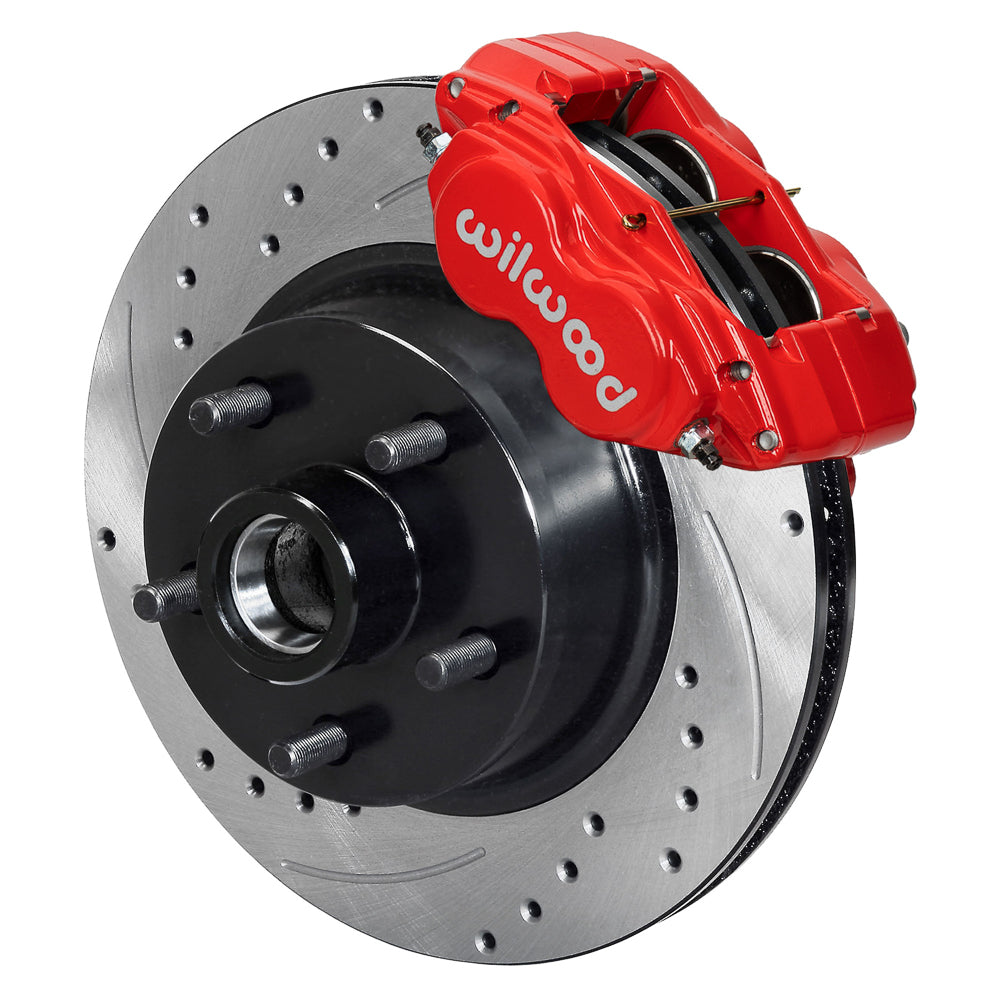

• Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Red. Finish: Red Powder Coat. Inlet thread: 1/8-27 NPT.
• Caliper family: Forged Dynalite-M. Brake-pad compound: BP-10.

• Rotor: 11.29 in; 286.77 mm outside diameter; 0.94 in; 23.88 mm thickness. Material: Iron. Construction: Vented. Friction-face style: SRP Drilled & Slotted.
• Rotor surface finish: Black Electro Coat.

Fitment & Compatibility

The application is defined by the spindle actually on the car. Confirm the later 1970 production arrangement where listed, the Mustang disc-brake exceptions and the mounting-hole pattern. Check full steering movement after routing the hoses and confirm wheel clearance with DS1035.

A master-cylinder change can require modification of the existing pushrod assembly. The separate universal parking-cable note applies only if the rear brakes are also being converted; this front kit does not supply a rear parking-brake conversion.

Where a different chassis connection or length is needed, universal flexline references are 220-7056 (14 inches), 220-7699 (16 inches) and 220-8307 (18 inches). These are alternatives to assess, not additional sets included in the kit.

Use the fitment table below for the complete model, year, submodel and brake-option conditions; every listed condition must match the installed vehicle.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

Supply the vehicle details and current brake configuration when contacting PMB Performance for fitment help. Our team brings over 20 years of parts experience to checking the combination.
