Wilwood Front Dynalite Brake Conversion, Plain Rotor/Hubs and Anodized Calipers, for Selected Ford Mustang/Falcon/Maverick/Fairlane/Ranchero/Torino and Mercury Cougar/Cyclone/Montego/Comet (1970–1974)

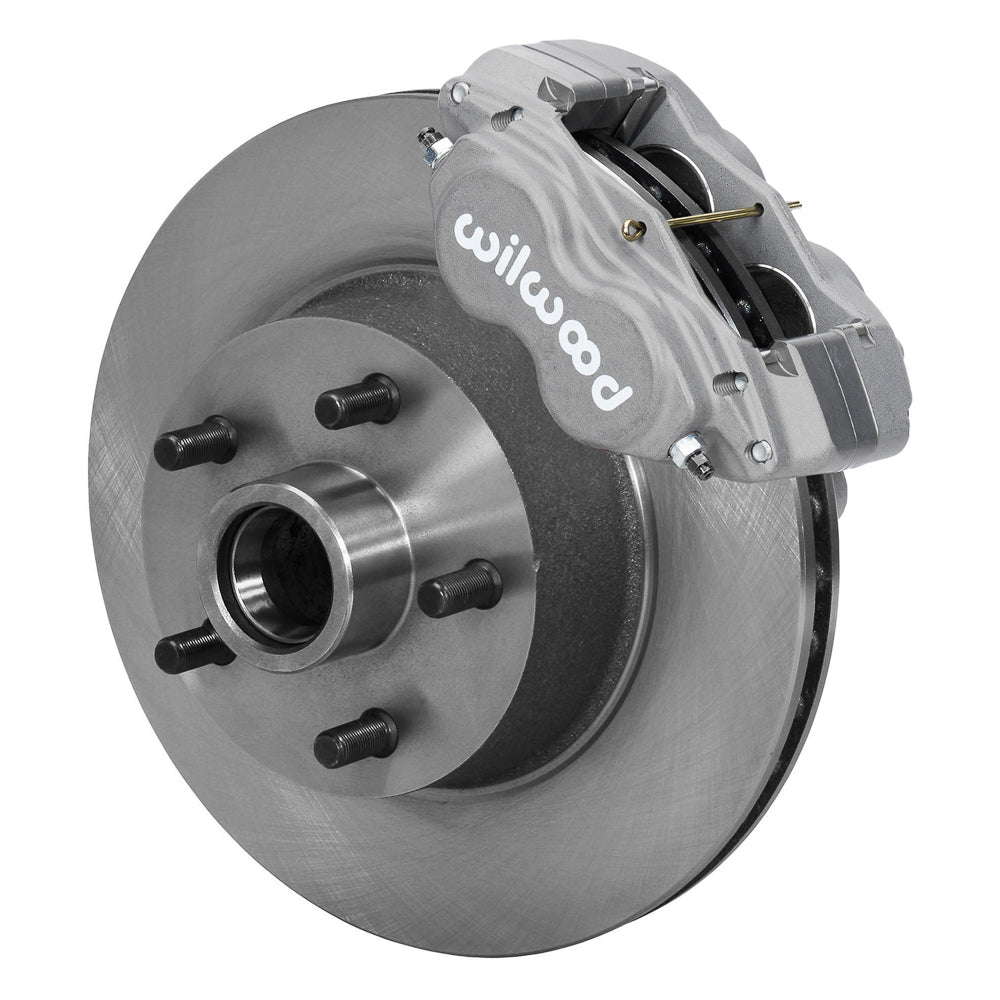

Designed around the later spindle group, this front kit uses the 11.30-inch nominal integral-hub rotor with anodized four-piston Dynalite-M calipers. Its bearing and mounting configuration must be matched to the original spindle, not substituted for the earlier kit on the basis of rotor diameter. Wilwood Engineering is based in Camarillo, California. Bill Wood founded its disc brake system and component business in 1977. The manufacturer designs and produces calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses. Each item must suit the rest of the brake system.

Technical Details

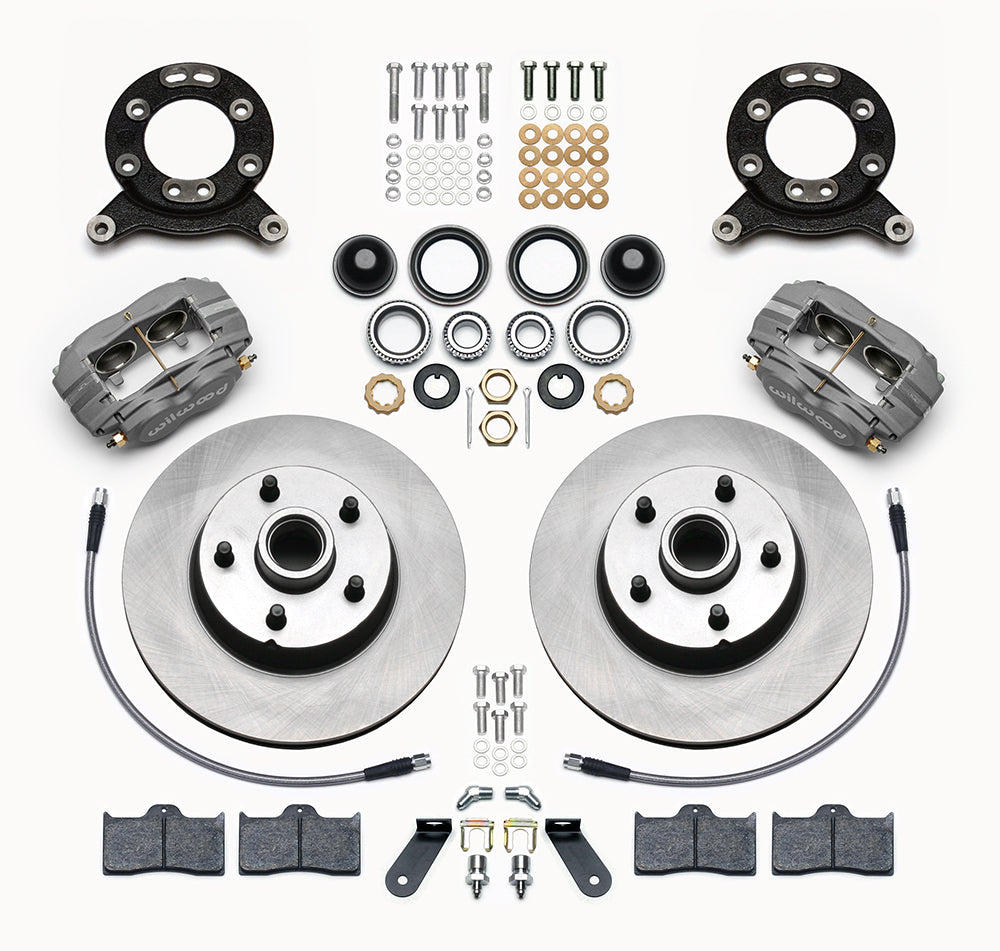

• Manufacturer: Wilwood; manufacturer part number: 140-13477. Supplied quantity: Sold as a kit.
• Application category: Front Brake Kits - Street Performance. Axle/spindle category: Front Kits. Brake function: Disc.
• Hubs are integral with the one-piece iron rotor castings. No separate hub assemblies are supplied; the rotor/hubs include the wheel-hub function.
• Mounting hardware included: Yes. Spindles included: No. Master cylinder included: No. Brake booster included: No.
• Flexible brake lines included: Yes; matched line kit 220-9195, 18.00 inches nominal length.

• Wheel interface: 5 X 4.5 in; 5 X 114.3 mm. Wheel-stud specification: 0.50 in; 12.70 mm.
• Nominal minimum wheel diameter: 14 in; 355.6 mm. Verify the full wheel-clearance drawing; diameter alone does not establish barrel or spoke clearance.

• Calipers: 4 stainless pistons per caliper; lug mounting; forged aluminium bodies. Color: Anodize. Finish: Type III Anodize. Inlet thread: 1/8-27 NPT.
• Caliper family: Forged Dynalite-M. Brake-pad compound: BP-10.

• Rotor: 11.29 in; 286.77 mm outside diameter; 0.94 in; 23.88 mm thickness. Material: Iron. Construction: Vented. Friction-face style: Plain Face.
• Rotor surface finish: Plain.

Fitment & Compatibility

The 1970 Falcon/Maverick drum application begins August 25, 1969. The 1970 Mustang disc row excludes GT350/GT500; later Mustang, Cougar, Comet and Maverick entries have their own year and spindle limits in the table. Check each condition before choosing the conversion.

A master-cylinder change can require modification of the existing pushrod assembly. The separate universal parking-cable note applies only if the rear brakes are also being converted; this front kit does not supply a rear parking-brake conversion.

Where a different chassis connection or length is needed, universal flexline references are 220-7056 (14 inches), 220-7699 (16 inches) and 220-8307 (18 inches). These are alternatives to assess, not additional sets included in the kit.

Manufacturer Documents

• Wilwood product specifications and wheel-clearance drawing
• Installation instructions

Before ordering, PMB Performance can help assess the application using your vehicle and brake-system details. Over 20 years of parts and fitment experience informs that review.
