Wilwood Rear Red Dynalite Brake Kit with Plain Rotors and Parking Brake, AMC Javelin/Javelin AMX Axles with 2.60-Inch Offset

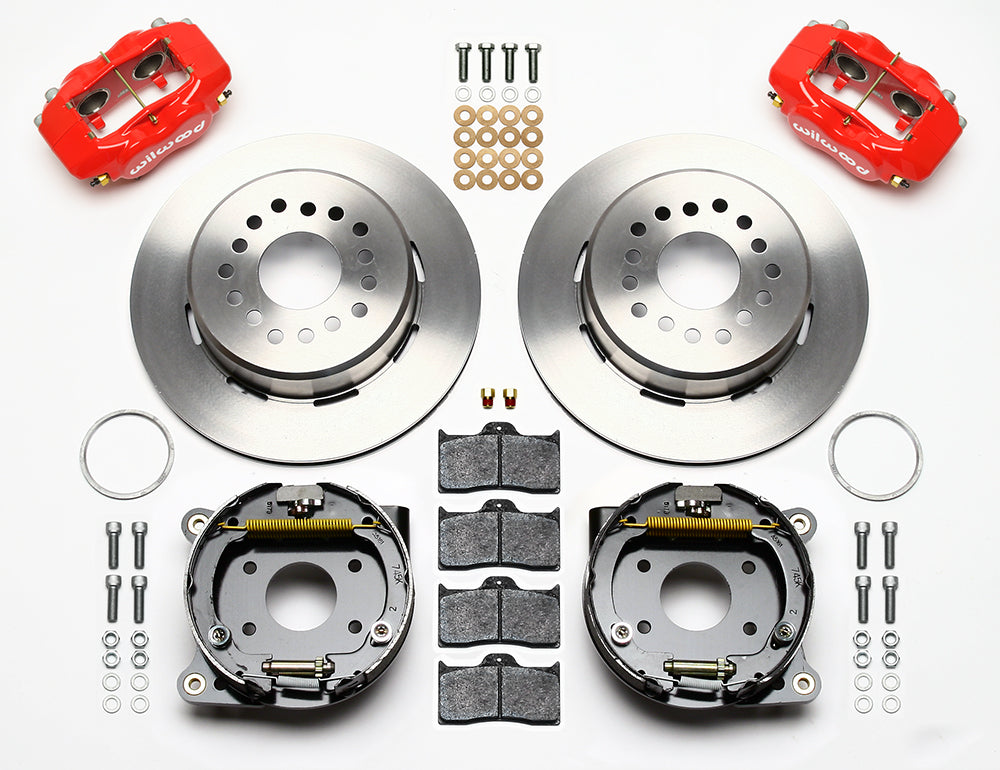

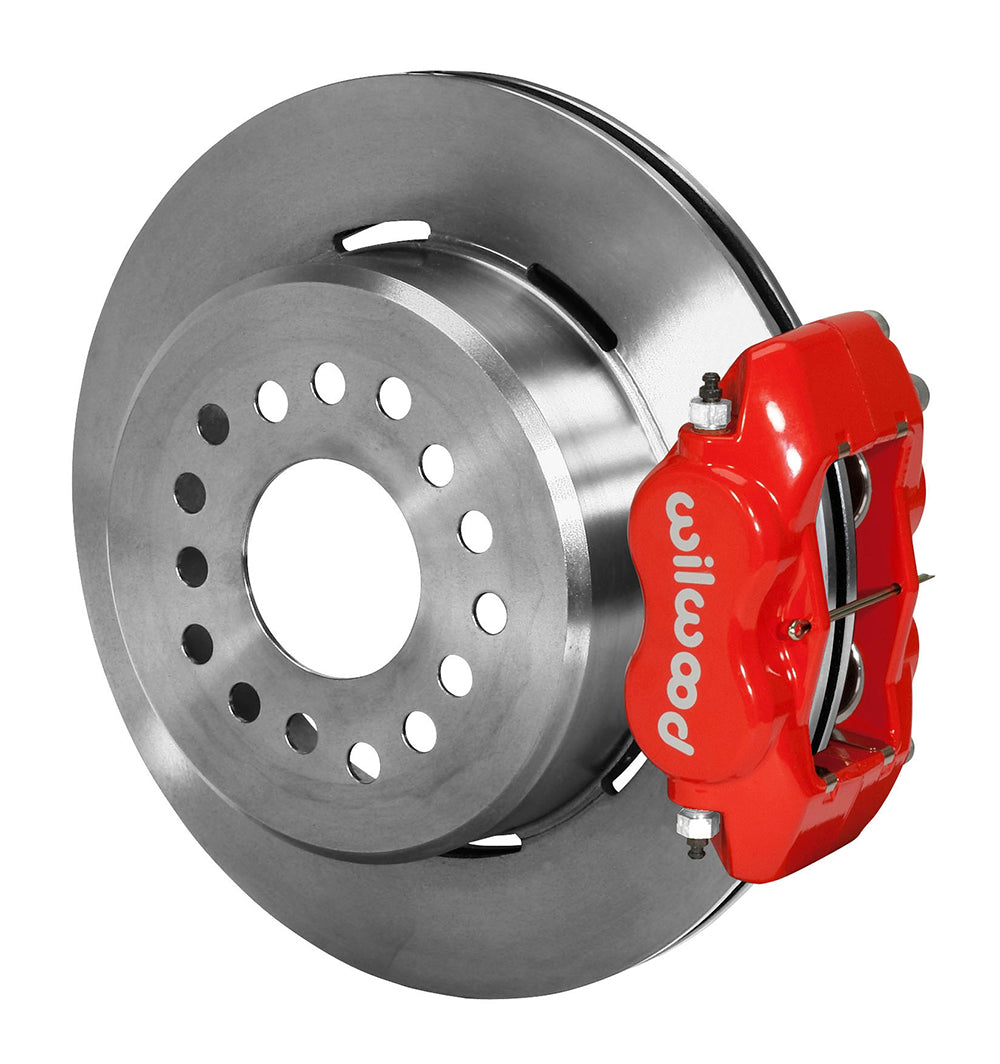

Plain vented iron rotors and red Dynalite calipers form this Javelin/Javelin AMX rear package. Its internal parking brake requires a separate cable system, and the axle flange determines the correct bracket fit. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer part number: 140-13398-R
• Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; Plain Face
• Caliper assembly: Forged Dynalite Internal; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Stud-hole / clearance provision: 0.52 in; 13.21 mm; diameter provision, not a thread designation
• Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
• Rear axle-end interface: AMC; axle/flange offset 2.60 in; 66.04 mm
• Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10

Fitment & Compatibility

Match DS1026 to the actual AMC axle housing and 2.60-inch offset, including existing hub and shim-stack details. Inspect wheel clearance and obtain the required hoses and parking-cable hardware before installation.

Documented model groups, subject to each year, submodel and spindle/axle qualification: American Motors Javelin, Javelin AMX. Application distinctions include AMX / AMX Disc Brake Spindle; AMX / AMX Drum Brake Spindle; Base / Disc Brake Spindle; Base / Drum Brake Spindle; Disc Brake Spindle, Bendix Calipers; Disc Brake Spindle, Kelsey Hayes Calipers; AMX / Disc Brake Spindle; AMX / Drum Brake Spindle.

A maximum flange diameter of 6.61 inches and a 0.050-inch x 45-degree chamfer are specified for rotor clearance. The illustrated register is 2.82 inches; select the documented centering arrangement and match both axle offset and housing-end bolt pattern.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1026
• Axle measurement worksheet

Our team at PMB Performance has over 20 years of parts and fitment experience. The existing component number and brake-system details help us check the match.

Review the complete application table below with the year, submodel and installation qualifications above.
