Wilwood Front Red Dynalite Plain-Rotor Kit, 12.19-Inch Hub Conversion for AMC Kelsey-Hayes Disc Spindles

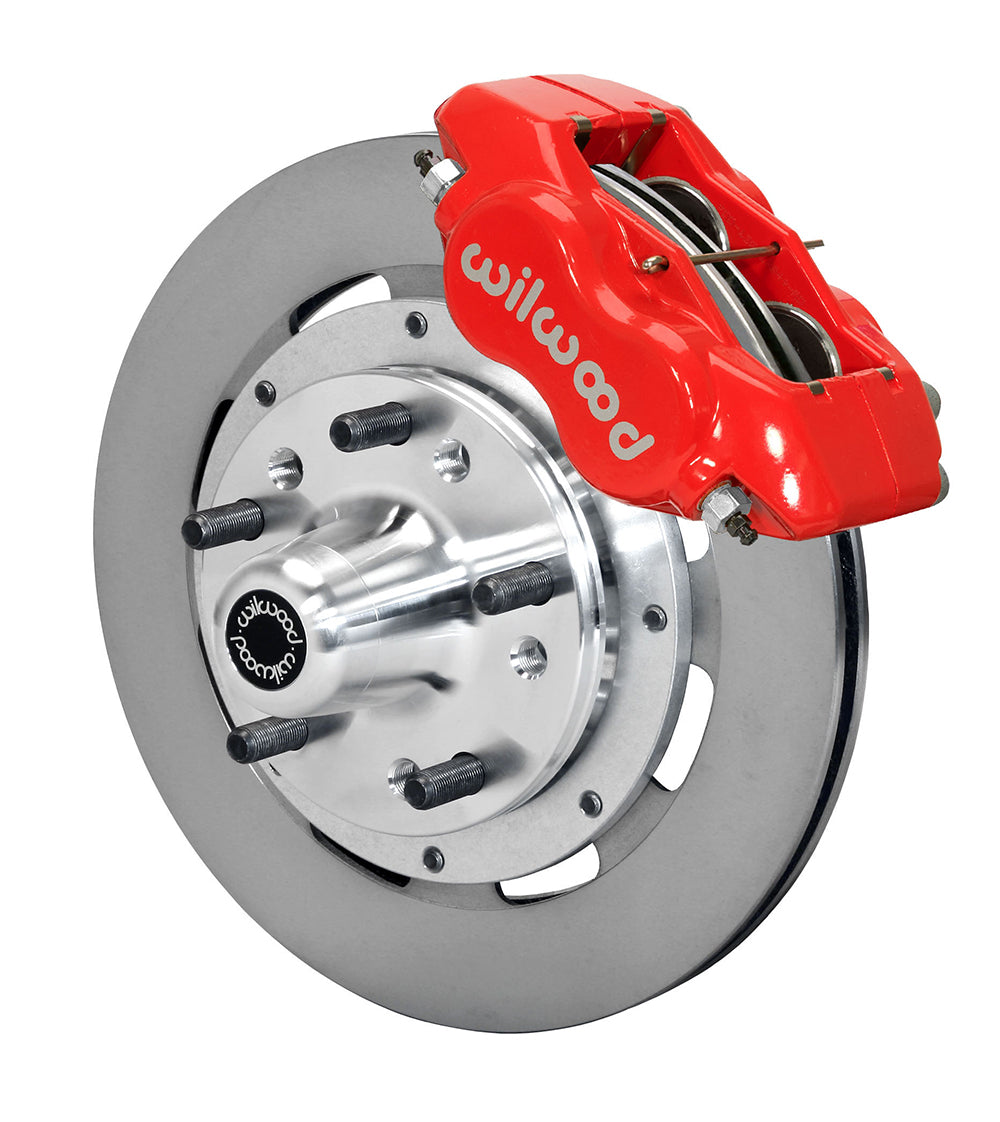

Plain 12.19-inch rotors and red four-piston Dynalite calipers identify this AMC front hub package. The conversion replaces the documented Kelsey-Hayes brake arrangement and retains its specific spindle requirements. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.

Technical Details

• Manufacturer part number: 140-13395-R
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Caliper assembly: Forged Dynalite Internal; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-stud thread: 1/2-20 in
• Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing

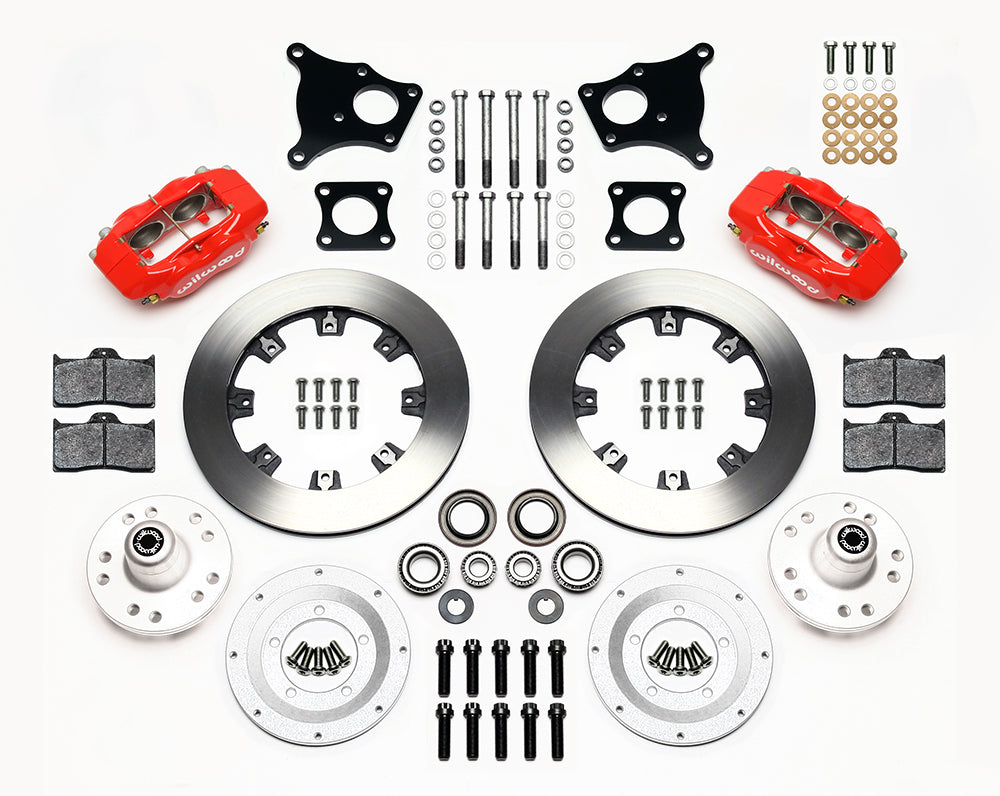

• Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; Plain Face

Fitment & Compatibility

Confirm the 1.25-inch inner and 0.75-inch outer bearing journals using DS1025. Inspect bracket spacing and wheel support, and compare the exact model-year row before dismantling the existing non-Bendix brakes.

Documented model groups, subject to each year, submodel and spindle/axle qualification: American Motors Ambassador, AMX, Javelin, Rambler, Rebel, Hornet, Gremlin, Matador, Javelin AMX. Application distinctions include Disc Brake Spindle; AMX / AMX Disc Brake Spindle; Base / Disc Brake Spindle; Disc Brake Spindle, Kelsey Hayes Calipers; AMX / Disc Brake Spindle.

The installation reference distinguishes wheel-pad overhang from a supported stamped steel wheel. Overhang requires a 0.20-inch-thick steel spacer, 6.60 inches in diameter, part 300-11961 (sold separately). A stamped wheel without overhang should instead use the separate 0.09-inch-thick, 6.15-inch-diameter shield 300-10716.

Kelsey-Hayes disc-spindle configuration only, with 1.25-inch inner and 0.75-inch outer bearing journals. Bendix equipment is excluded. Use the DS1025 spacer arrangement to obtain its specified bracket stand-off.

DS1025 specifies 1.25 inches from the spindle backing-plate face to the back of the caliper mounting bracket; use the required spacer arrangement to establish that distance.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1025

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.

Review the complete application table below with the year, submodel and installation qualifications above.
