Wilwood Red Front Dynalite Brake Conversion, 12.19-Inch SRP Rotors for Listed AMC Kelsey-Hayes Disc Spindles

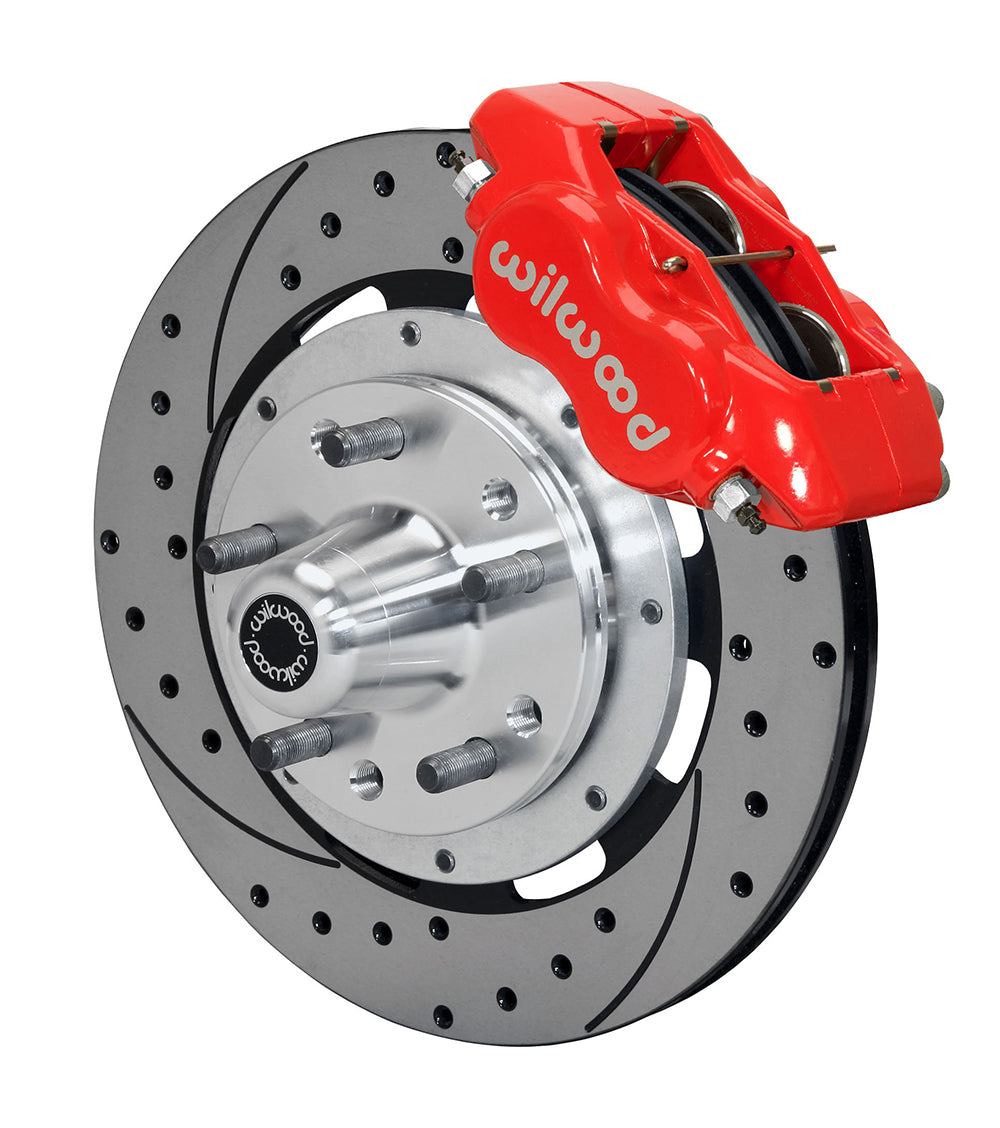

Red Dynalite calipers operate against 12.19-inch drilled-and-slotted rotors in this AMC front conversion. The included hubs and mounting hardware must be matched to the documented disc spindle and bearing arrangement. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

• Manufacturer part number: 140-13395-DR
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; SRP Drilled & Slotted
• Caliper assembly: Forged Dynalite Internal; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-stud thread: 1/2-20 in
• Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing

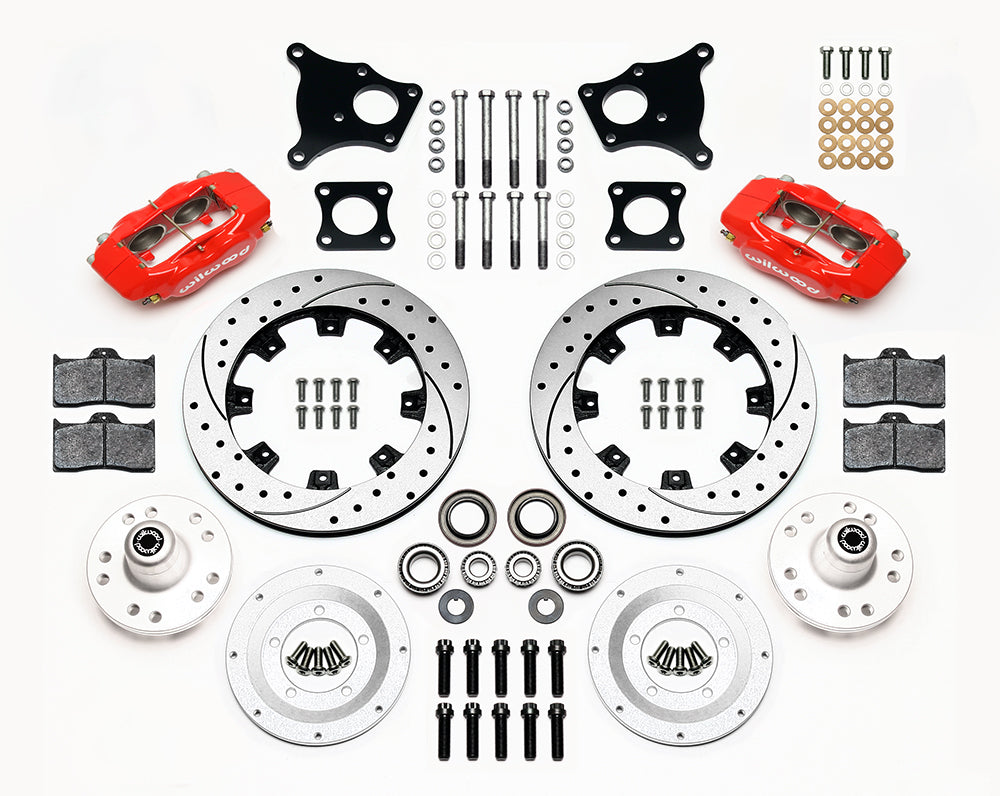

• Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10

Fitment & Compatibility

Use DS1025 to confirm Kelsey-Hayes equipment, the 1.25/0.75-inch bearing journals and the required bracket stand-off. A matching model badge does not make Bendix spindle hardware compatible.

Documented model groups, subject to each year, submodel and spindle/axle qualification: American Motors Ambassador, AMX, Javelin, Rambler, Rebel, Hornet, Gremlin, Matador, Javelin AMX. Application distinctions include Disc Brake Spindle; AMX / AMX Disc Brake Spindle; Base / Disc Brake Spindle; Disc Brake Spindle, Kelsey Hayes Calipers; AMX / Disc Brake Spindle.

The installation reference distinguishes wheel-pad overhang from a supported stamped steel wheel. Overhang requires a 0.20-inch-thick steel spacer, 6.60 inches in diameter, part 300-11961 (sold separately). A stamped wheel without overhang should instead use the separate 0.09-inch-thick, 6.15-inch-diameter shield 300-10716.

Kelsey-Hayes disc-spindle configuration only, with 1.25-inch inner and 0.75-inch outer bearing journals. Bendix equipment is excluded. Use the DS1025 spacer arrangement to obtain its specified bracket stand-off.

DS1025 specifies 1.25 inches from the spindle backing-plate face to the back of the caliper mounting bracket; use the required spacer arrangement to establish that distance.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1025

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.

Review the complete application table below with the year, submodel and installation qualifications above.
