Wilwood Mazda MX-5 Miata Front Brake Package, Red Dynapro 6 Calipers and 11-Inch Slotted Rotors

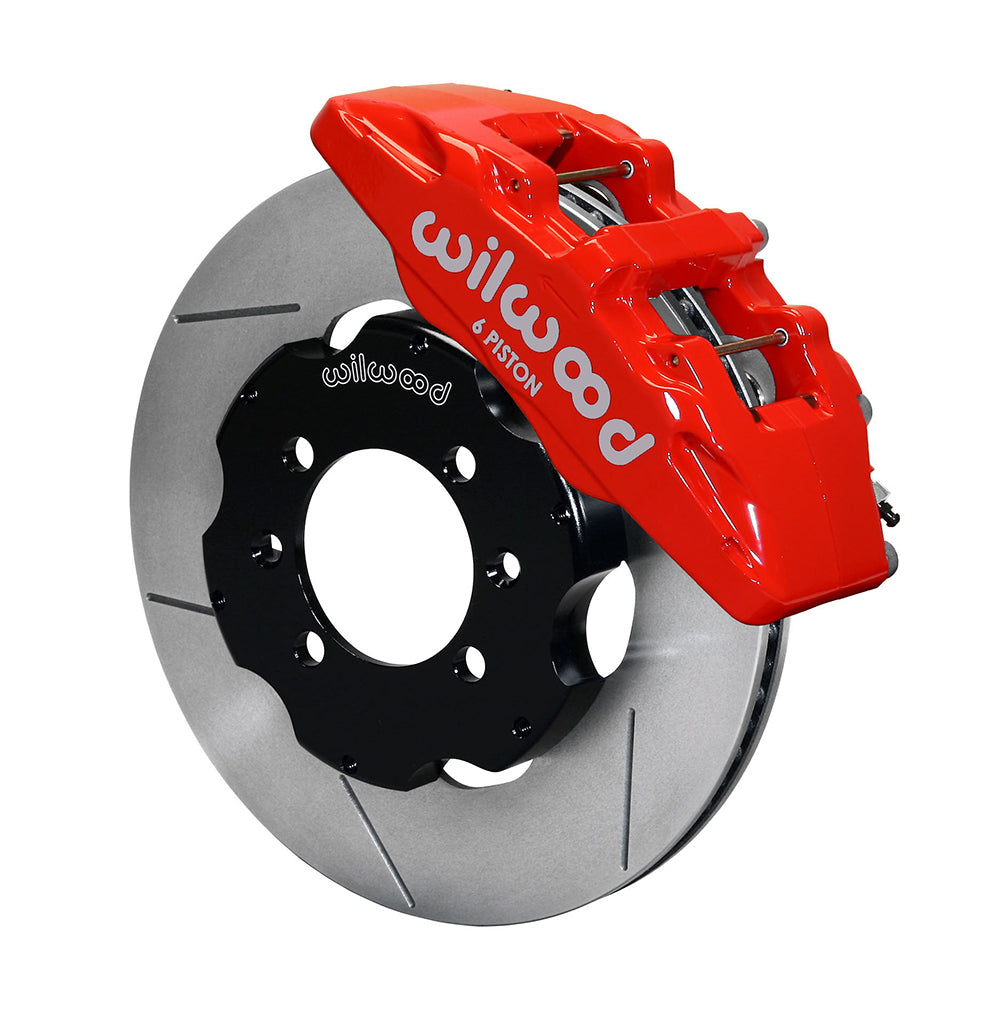

Red six-piston Dynapro calipers and slotted Spec-37 rotor rings provide this Miata front conversion. The kit retains the documented hubs through aluminum hats, while the flexible hydraulic lines are separate. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.

Technical Details

• Manufacturer part number: 140-13380-R
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 4 x 3.93 in; 4 x 99.82 mm
• Stud-hole / clearance provision: 0.500 in; 12.70 mm; diameter provision, not a thread designation
• Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing

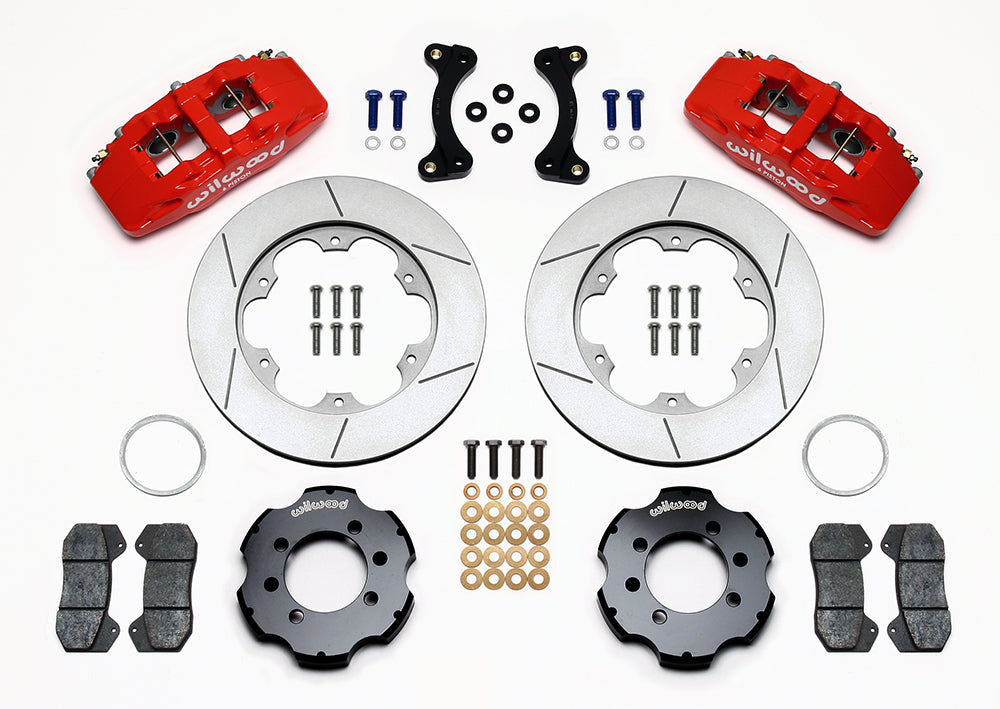

• Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Separate rotor-hat specification: Aluminum; Black E-Coat; offset 0.750 inch; part 170-11682
• Rotor dimensions: 11.00 in; 279.4 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Spec-37 Iron; Vented; GT Slotted
• Caliper assembly: Dynapro 6; 6 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat

Fitment & Compatibility

Check the Miata sports-suspension and 2001 VIN qualifications against DS1022 and the application rows. Confirm early-year coverage where the broader instruction heading differs, together with the actual wheel profile.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Mazda Miata. Application distinctions include All except Sports Suspension; w/ Sports Suspension from VIN 206467; w/ Sports Suspension to VIN 206466; w/ Sports Suspension.

The application list covers 1991–1997 and 1999–2000, plus 2001–2005 with the stated sports-suspension qualifications. The 2001 sports-suspension rows split at VIN 206466/206467; do not collapse these into an unsupported 1990–2005 direct-fit claim.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1022

Our team at PMB Performance has over 20 years of parts and fitment experience. The existing component number and brake-system details help us check the match.

Review the complete application table below with the year, submodel and installation qualifications above.
