Wilwood Front Dynapro Kit for Mustang II, Pinto and Bobcat Disc Spindles, Black, 11-Inch Rotors and Five-Lug Hubs

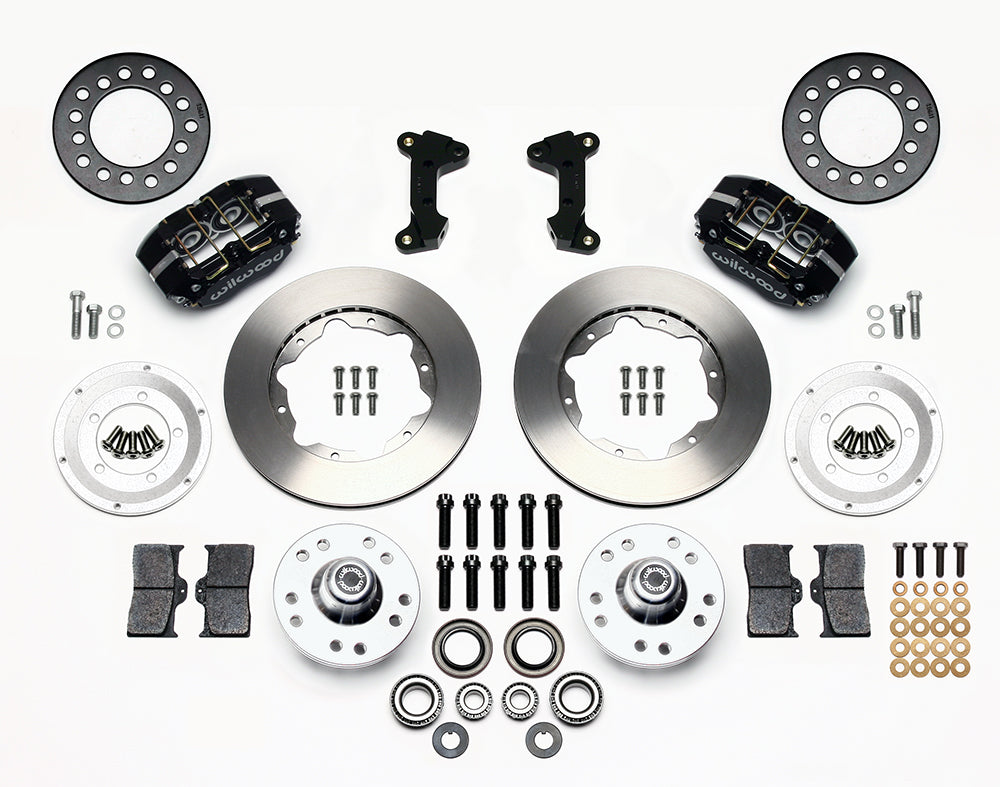

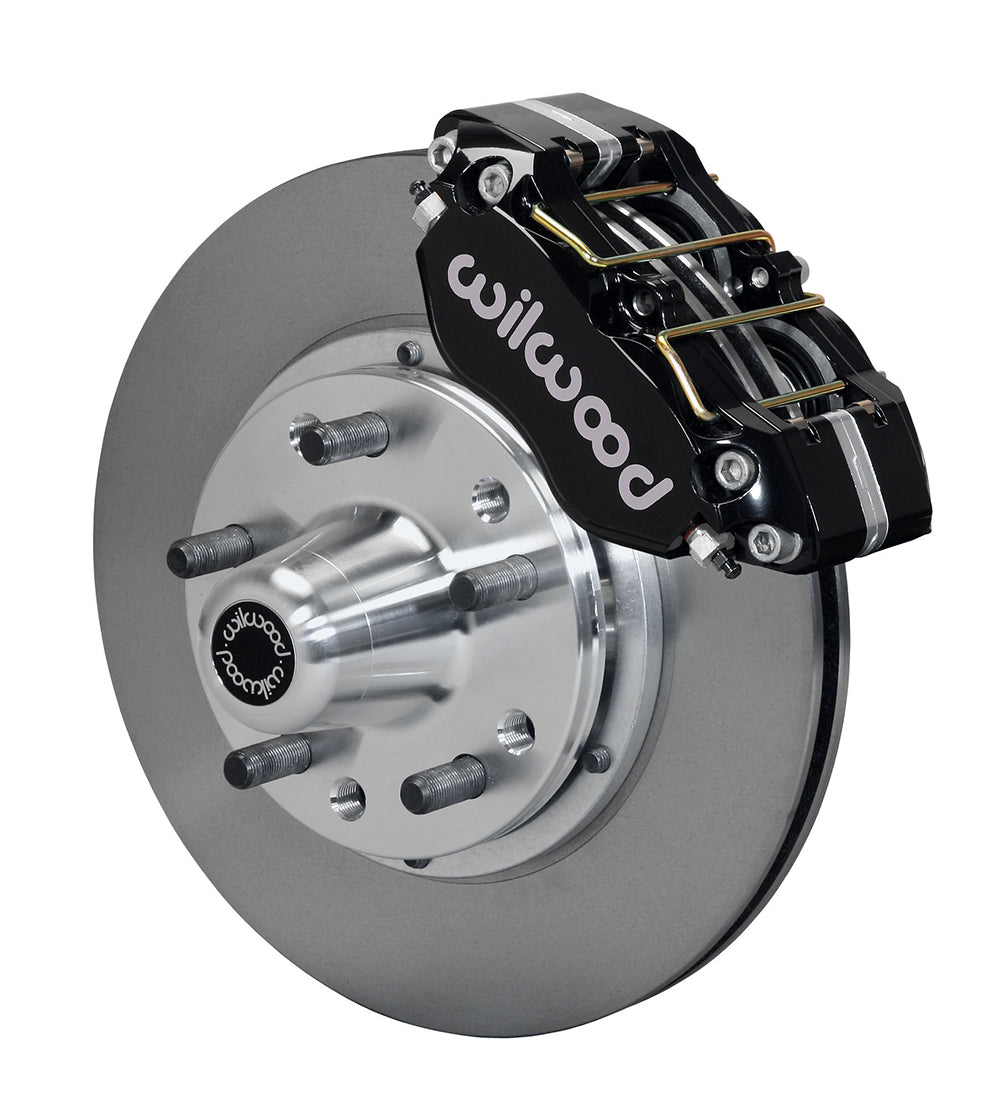

Black Dynapro dust-boot calipers, 11-inch plain rotors and five-lug hubs convert the documented Mustang II, Pinto and Bobcat disc-spindle arrangement. The supplied hubs change the wheel attachment from the original four-lug layout. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

• Manufacturer part number: 140-13377
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Black calipers; Black Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-stud thread: 1/2-20 in
• Wheel diameter starting requirement: 14 in; 355.6 mm; verify the individual wheel against the installation drawing
• Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Published wheel-position / hub offset: .00 inch per side; verify against the documented spindle assembly
• Rotor dimensions: 11.00 in; 279.4 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; Plain Face

Fitment & Compatibility

Use the 1974–1978 Mustang II, 1974–1980 Pinto or 1975–1980 Bobcat disc-spindle row. DS1019 calls for compatible five-lug wheels and complete wheel-pad support. Inspect the original caliper ears for interference and trim only where the instructions require; retained four-lug wheels are incompatible.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Ford Mustang II, Pinto; Mercury Bobcat.

Requires the documented original disc spindle and compatible five-lug wheels. Four-lug wheels are incompatible. DS1019/DS1020 calls for limited removal of original caliper ears only where they interfere; preserve the bracket mounting holes.

The installation reference distinguishes wheel-pad overhang from a supported stamped steel wheel. Overhang requires a 0.20-inch-thick steel spacer, 6.60 inches in diameter, part 300-11961 (listed in the installation parts list). A stamped wheel without overhang should instead use the separate 0.09-inch-thick, 6.15-inch-diameter shield 300-10716.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Kit includes 5 lug hubs. Not applicable to 4 lug vehicles.

Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.

A separately selected master cylinder may require modification of the existing pushrod assembly; it is not supplied in this brake kit.

An independently added universal parking-brake cable system may require cable or vehicle modifications. It is separate from this front service-brake kit.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1019

Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.

Review the complete application table below with the year, submodel and installation qualifications above.
