Product details

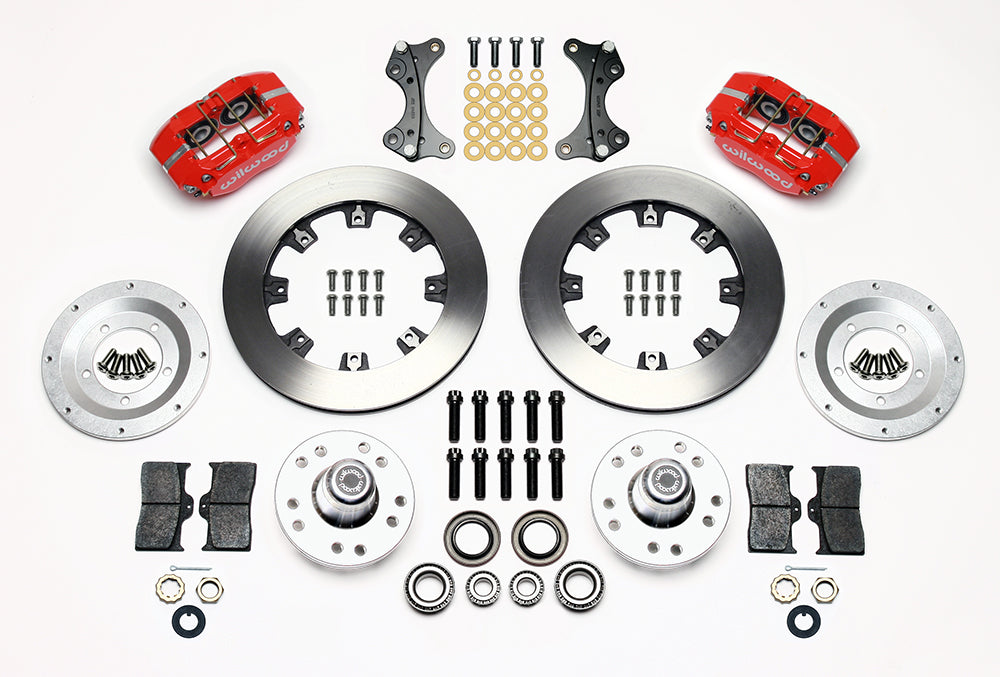

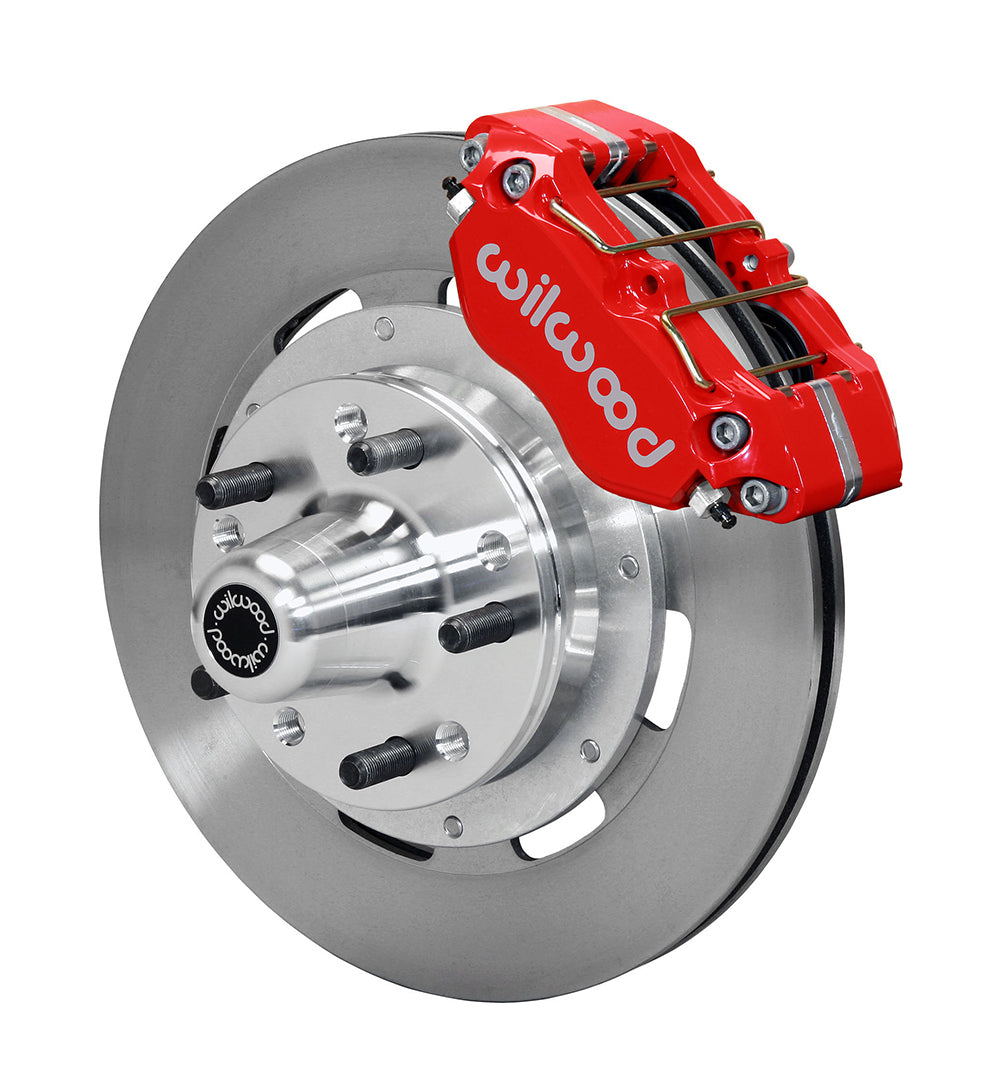

Red Dynapro calipers and plain 12.19-inch rotors provide the hydraulic braking assembly in this ProSpindle kit. The included hubs and brackets are chosen for the spindle, with the wheels and hoses checked separately. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.
Technical Details
- Manufacturer part number: 140-13346-R
- Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
- Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
- Rotor construction: Iron; Vented; Plain Face
- Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
- Piston and finish specification: Aluminum pistons; Red calipers; Red Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Wheel-stud thread: 1/2-20 in
- Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
- Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Published wheel-position / hub offset: +.10 inch per side; verify against the documented spindle assembly
Fitment & Compatibility
Confirm the matching Wilwood ProSpindle and retained spindle hardware using DS1014. Inspect the wheel's supported mounting face and clearance around the lug-mount caliper before fitting the brake lines.
The matching ProSpindles are the separately purchased standard-height 830-10832 or 2-inch-drop 830-9807. Follow the installation steps specific to the selected spindle.
The installation reference distinguishes wheel-pad overhang from a supported stamped steel wheel. Overhang requires a 0.20-inch-thick steel spacer, 6.60 inches in diameter, part 300-11961 (sold separately). A stamped wheel without overhang should instead use the separate 0.09-inch-thick, 6.15-inch-diameter shield 300-10716.
Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
