Product details

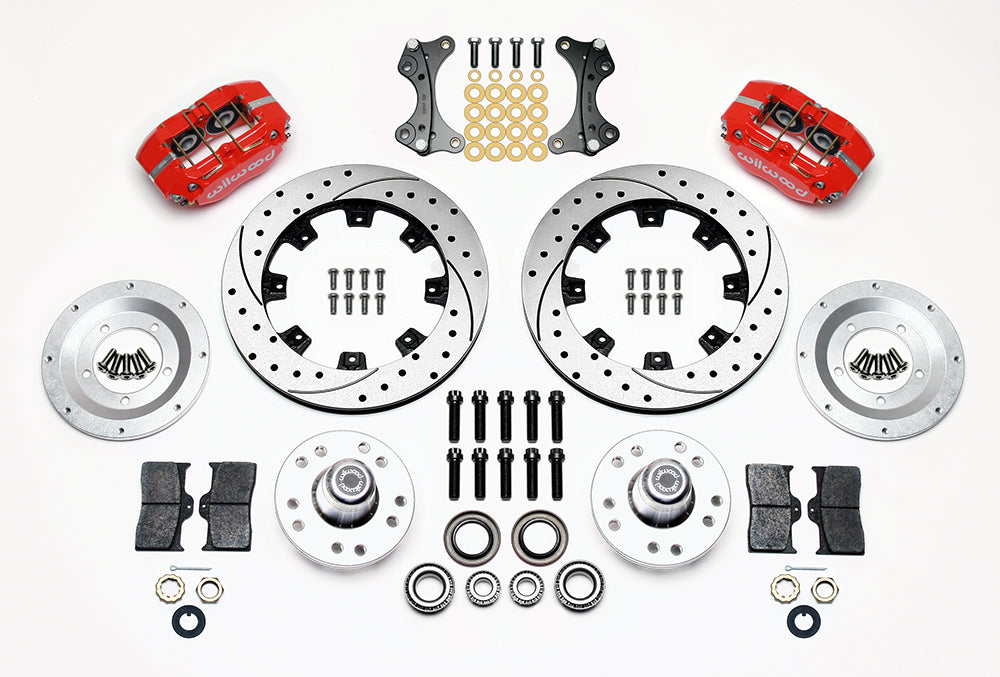

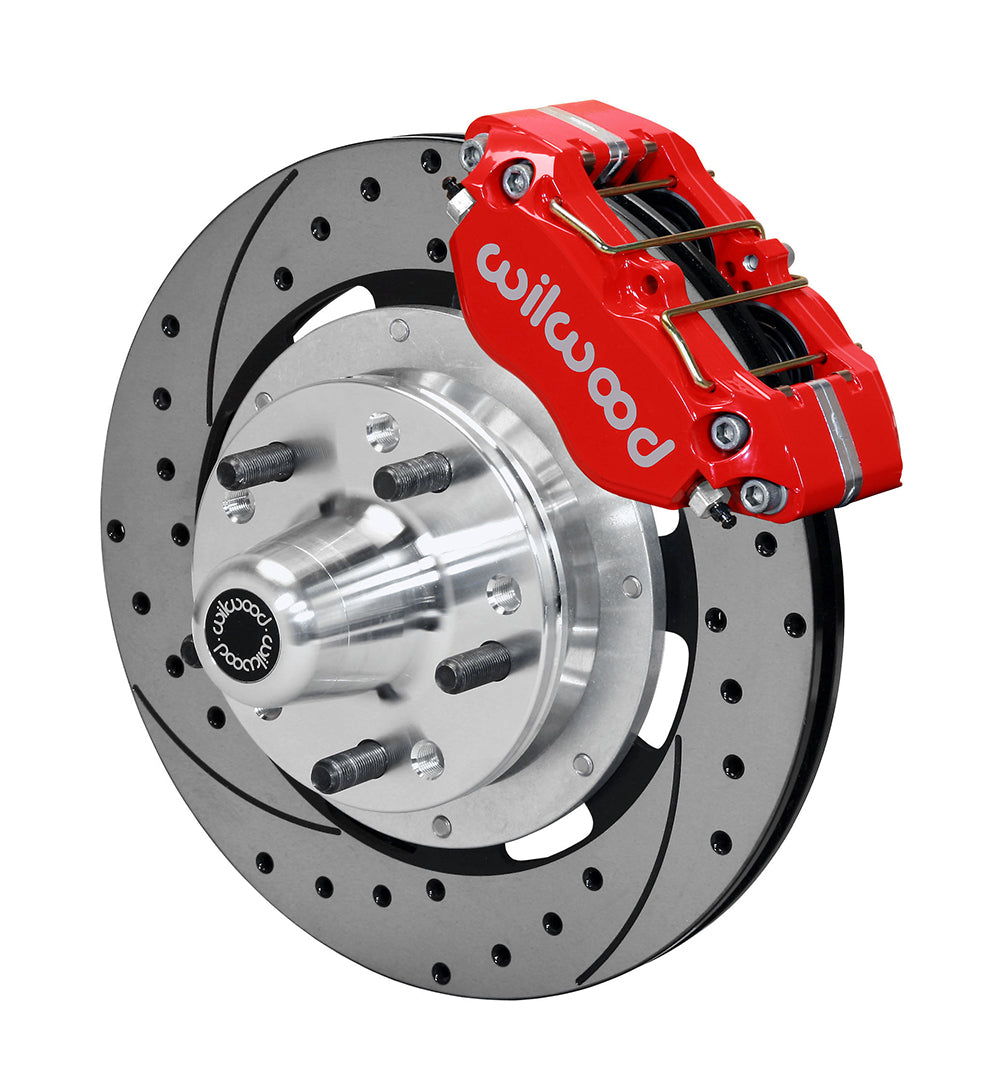

The red-caliper SRP option of this ProSpindle kit uses 12.19-inch vented rotor rings and four-piston dust-boot calipers. Its dual-pattern hubs accept the documented wheel-stud arrangement. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.
Technical Details
- Manufacturer part number: 140-13346-DR
- Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
- Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Published wheel-position / hub offset: +.10 inch per side; verify against the documented spindle assembly
- Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
- Rotor construction: Iron; Vented; SRP Drilled & Slotted
- Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
- Piston and finish specification: Aluminum pistons; Red calipers; Red Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Wheel-stud thread: 1/2-20 in
- Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
Fitment & Compatibility
Use the actual ProSpindle and DS1014 wheel diagram to confirm the complete installation. Check wheel-pad support and the +0.10-inch per-side offset change before connecting separate flexlines.
The matching ProSpindles are the separately purchased standard-height 830-10832 or 2-inch-drop 830-9807. Follow the installation steps specific to the selected spindle.
The installation reference distinguishes wheel-pad overhang from a supported stamped steel wheel. Overhang requires a 0.20-inch-thick steel spacer, 6.60 inches in diameter, part 300-11961 (sold separately). A stamped wheel without overhang should instead use the separate 0.09-inch-thick, 6.15-inch-diameter shield 300-10716.
Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
