Product details

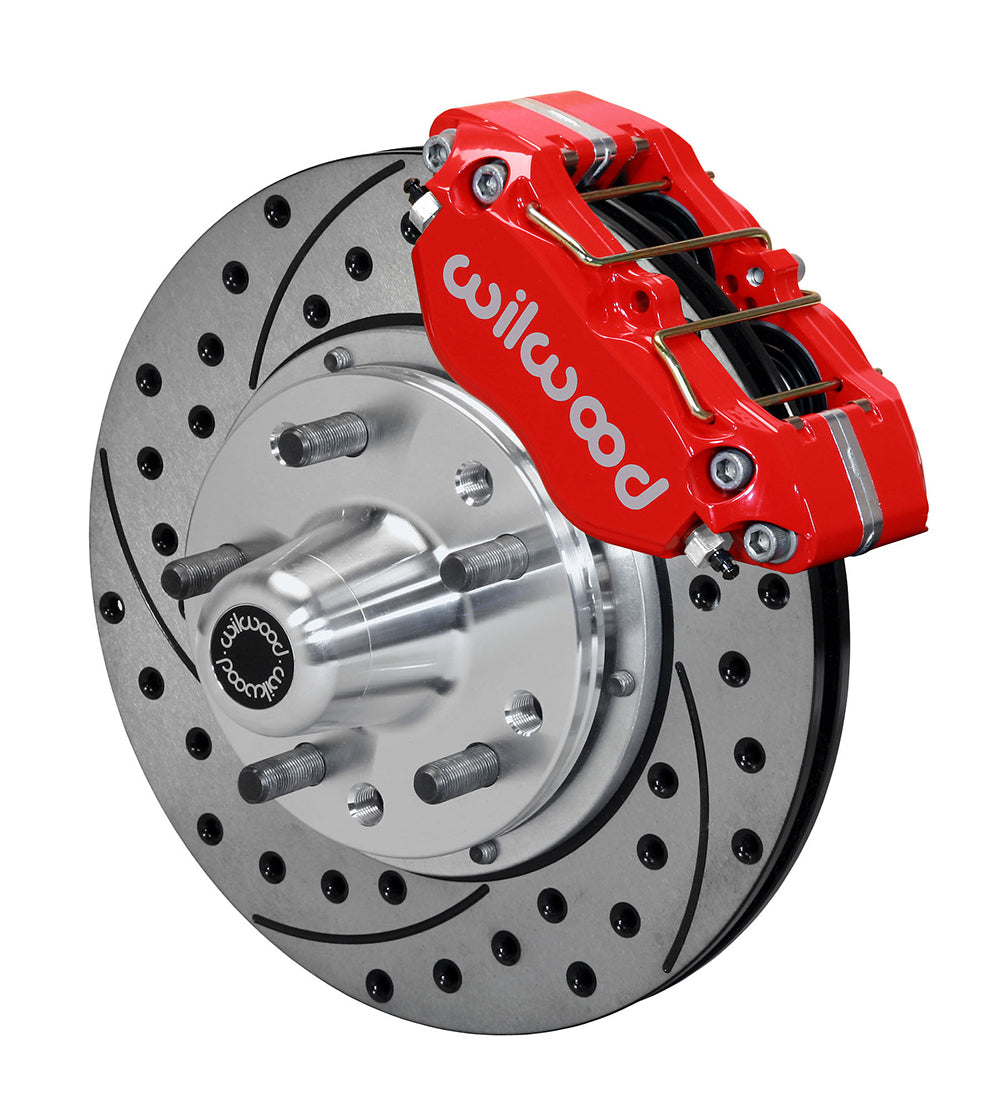

Red Dynapro dust-boot calipers clamp drilled-and-slotted 11-inch rotors in this ProSpindle package. The four-piston hydraulic assembly and included hubs are matched to its specific bracket and spindle configuration. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 140-13345-DR
- Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
- Rotor dimensions: 11.00 in; 279.4 mm outside diameter; 0.81 in; 20.57 mm thickness
- Rotor construction: Iron; Vented; SRP Drilled & Slotted
- Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
- Piston and finish specification: Aluminum pistons; Red calipers; Red Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Wheel-stud thread: 1/2-20 in
- Wheel diameter starting requirement: 14 in; 355.6 mm; verify the individual wheel against the installation drawing

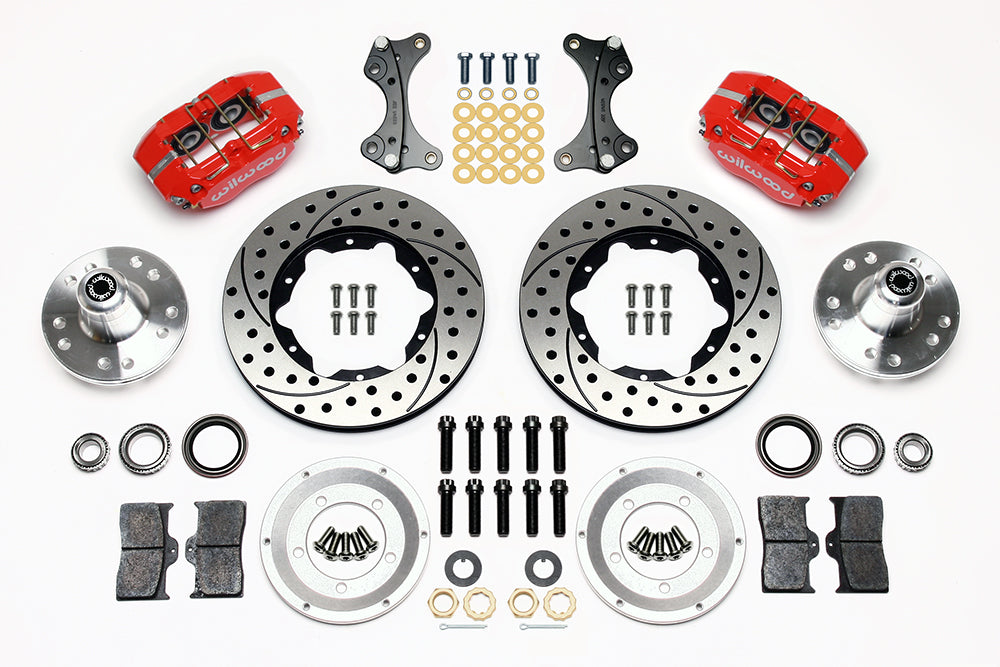

- Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Published wheel-position / hub offset: +.10 inch per side; verify against the documented spindle assembly
Fitment & Compatibility
Inspect the installed Wilwood ProSpindle before using DS1013. Verify wheel-pad support and the stated +0.10-inch per-side wheel change, then provide the correct hose length and caliper connections.
The matching ProSpindles are the separately purchased standard-height 830-10832 or 2-inch-drop 830-9807. Follow the installation steps specific to the selected spindle.
Support the entire wheel mounting pad. An overhanging contact surface calls for 300-11961, the 6.60-inch x 0.20-inch steel spacer (sold separately). For a stamped steel wheel that stays within the hub face, the manufacturer recommends separate shield 300-10716: 6.15-inch diameter and 0.09-inch thickness.
Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
