Product details

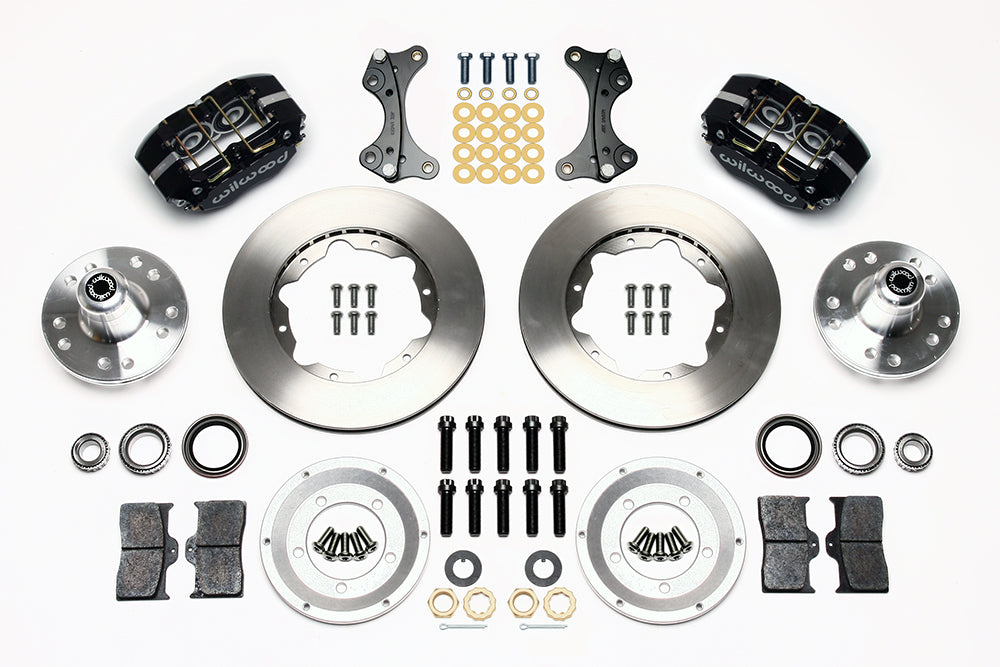

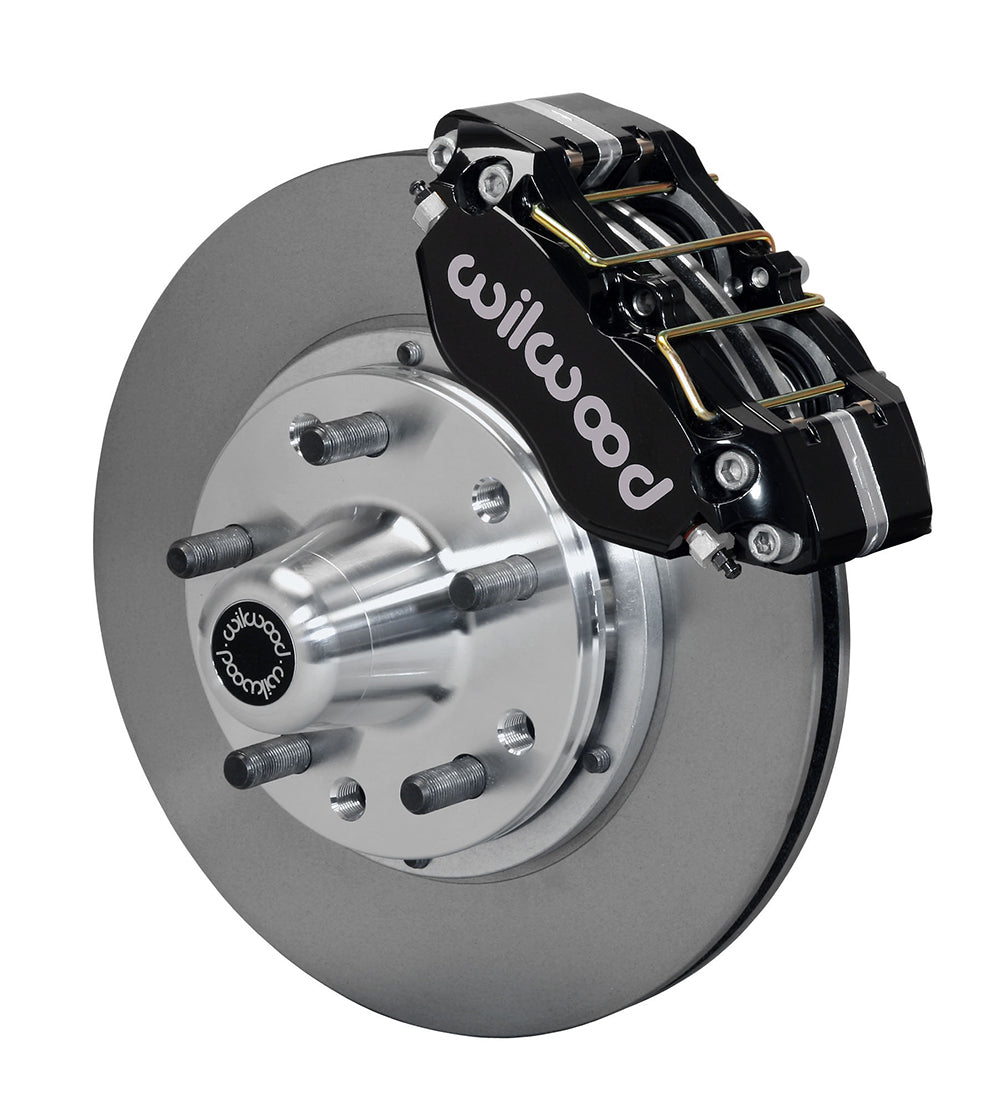

This ProSpindle front package includes black Dynapro dust-boot calipers, 11-inch plain rotors and dual-pattern hubs. It is a conversion for the specified Wilwood spindle, not an original-spindle kit for every vehicle carrying that suspension. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.
Technical Details
- Manufacturer part number: 140-13345
- Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
- Wheel-stud thread: 1/2-20 in
- Wheel diameter starting requirement: 14 in; 355.6 mm; verify the individual wheel against the installation drawing
- Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Published wheel-position / hub offset: +.10 inch per side; verify against the documented spindle assembly
- Rotor dimensions: 11.00 in; 279.4 mm outside diameter; 0.81 in; 20.57 mm thickness
- Rotor construction: Iron; Vented; Plain Face
- Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
- Piston and finish specification: Aluminum pistons; Black calipers; Black Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
Fitment & Compatibility
Match the installed ProSpindle and use DS1013 to check hub and bracket assembly. The published +0.10-inch wheel-position change per side and wheel-pad support should be checked with the existing wheels.
The matching ProSpindles are the separately purchased standard-height 830-10832 or 2-inch-drop 830-9807. Follow the installation steps specific to the selected spindle.
If the wheel contact surface overhangs the hub face, use steel spacer 300-11961, specified as 6.60 inches in diameter and 0.20 inch thick (sold separately). Stamped steel wheels without that overhang should use the separately sourced hub shield 300-10716, measuring 6.15 inches across and 0.09 inch thick.
Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
