Wilwood Red Front Dynapro Dust-Boot Brake Kit with 12.19-Inch SRP Rotors, Ford/Mercury Spindle Conversion

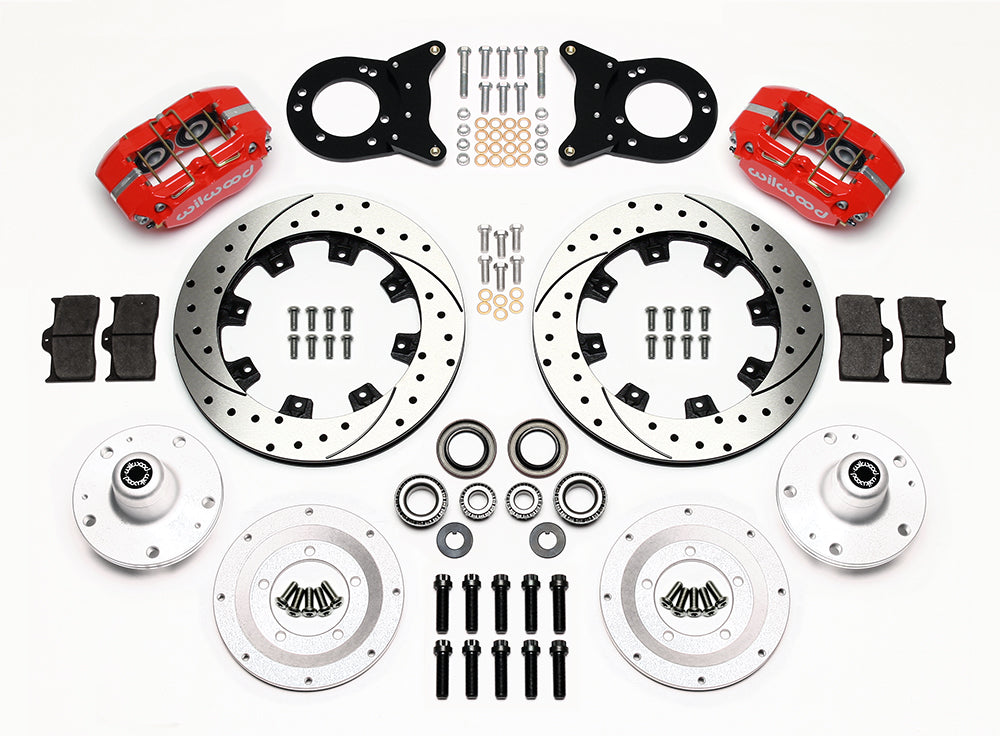

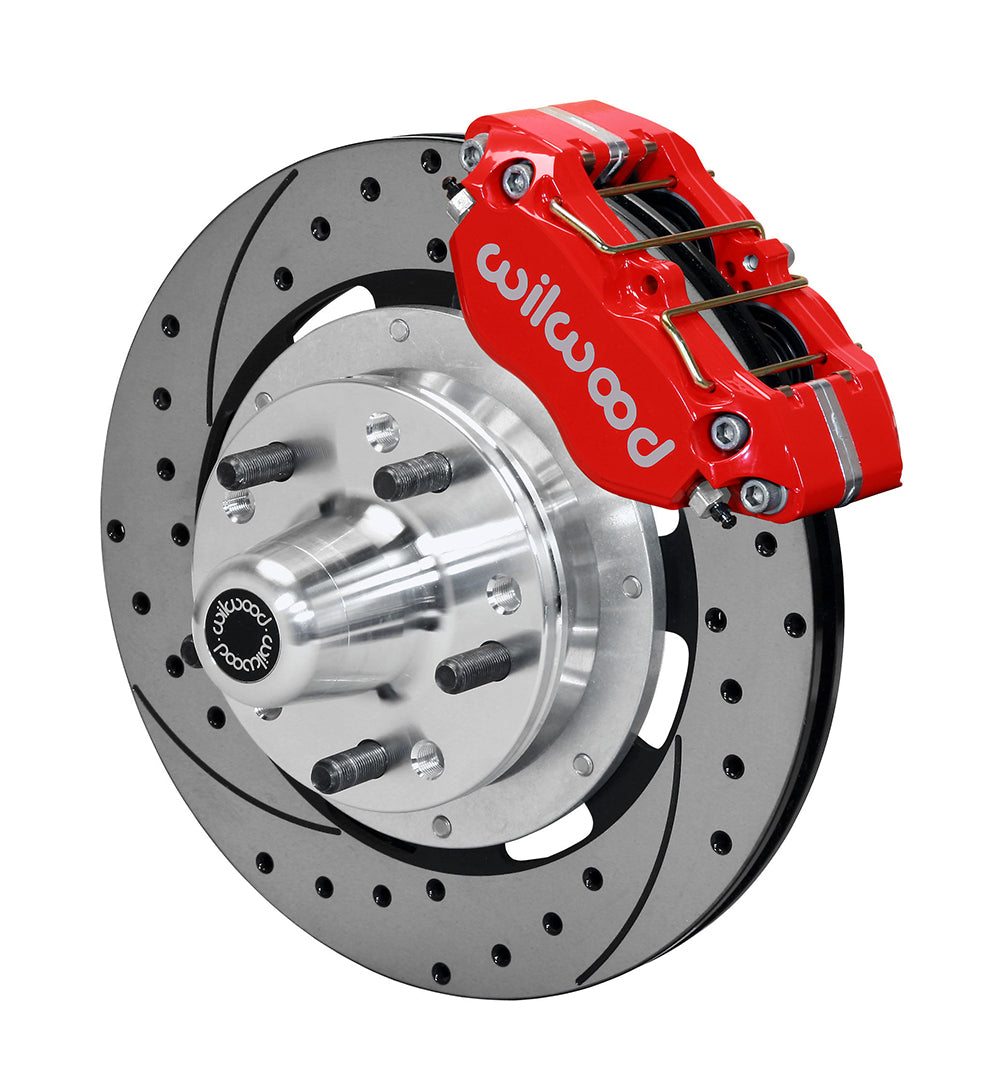

Red dust-boot calipers operate against drilled-and-slotted 12.19-inch rotors in this Ford/Mercury package. Aluminum hubs carry the documented dual wheel patterns, and each spindle layout uses its specified attachment hardware. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.

Technical Details

• Manufacturer part number: 140-13344-DR
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Red calipers; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-stud thread: 1/2-20 in
• Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
• Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Published wheel-position / hub offset: +.09 inch per side; verify against the documented spindle assembly
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; SRP Drilled & Slotted

Fitment & Compatibility

Check DS1012 and the exact application row, including any V8, early-build or GT350/GT500 qualification. Do not overlook the drilling and re-tapping required for the documented disc-spindle mounting arrangement.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Ford Falcon, Ranchero, Fairlane, Mustang, Torino, Maverick; Mercury Comet, Cyclone, Caliente, Cougar, Montego. Application distinctions include V-8 Spindle Only; Disc Brake V-8 Spindle Only; Drum Brake V-8 Spindle Only; Drum Brake Spindle; Disc Brake Spindle; Drum Brake Front Spindle; Drum Brake Front thru 8/24/69; Disc Brake GT350 & 500 only.

The 1970 Falcon and Maverick drum rows are restricted to production through8/24/1969; the 1970 Mustang disc row is GT 350/GT 500 only. Earlier Falcon, Ranchero, Comet and Cyclone rows retain their V8-only restrictions.

If the wheel contact surface overhangs the hub face, use steel spacer 300-11961, specified as 6.60 inches in diameter and 0.20 inch thick (sold separately). Stamped steel wheels without that overhang should use the separately sourced hub shield 300-10716, measuring 6.15 inches across and 0.09 inch thick.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Flexline kits: 1965-67 use 220-6471 (18"), 1968-up use 220-9195 (18").

A separately selected master cylinder may require modification of the existing pushrod assembly; it is not supplied in this brake kit.

An independently added universal parking-brake cable system may require cable or vehicle modifications. It is separate from this front service-brake kit.

Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1012

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.

Review the complete application table below with the year, submodel and installation qualifications above.
