Wilwood Red Front Dust-Boot Brake Package, 11-Inch SRP Rotors for Matched Ford/Mercury Spindles

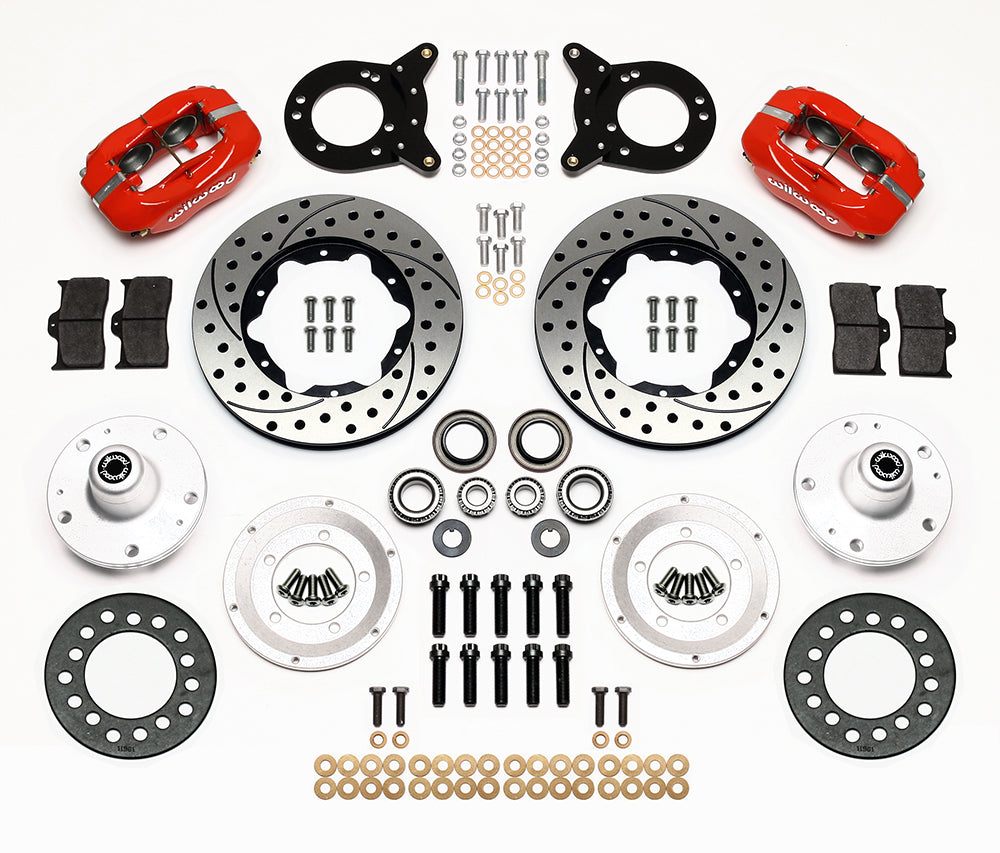

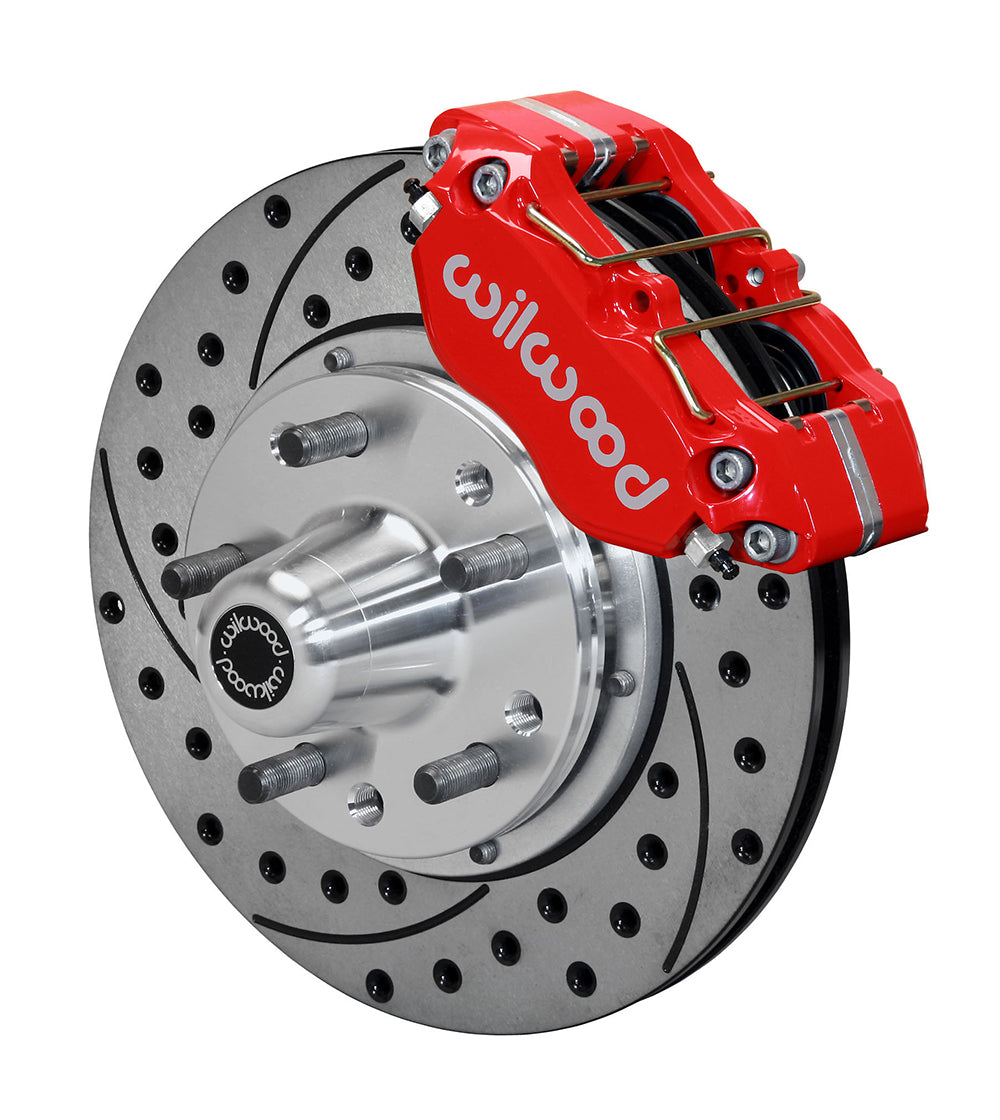

Red Dynapro calipers and drilled-and-slotted rotors identify this 11-inch front assembly. The supplied hubs and dual bracket-hardware configurations must match the documented spindle and wheel mounting surfaces. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.

Technical Details

• Manufacturer part number: 140-13343-DR
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-stud thread: 1/2-20 in
• Wheel diameter starting requirement: 14 in; 355.6 mm; verify the individual wheel against the installation drawing
• Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Published wheel-position / hub offset: +.09 inch per side; verify against the documented spindle assembly
• Rotor dimensions: 11.00 in; 279.4 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; SRP Drilled & Slotted
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Red calipers; Red Powder Coat

Fitment & Compatibility

Verify the row-specific V8, brake-spindle and build-date qualifiers before using DS1011. Three-hole disc spindles need the stated drilling and tapping; select the correct hardware group and separate hose set.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Ford Falcon, Ranchero, Fairlane, Mustang, Torino, Maverick; Mercury Comet, Cyclone, Caliente, Cougar, Montego. Application distinctions include V-8 Spindle Only; Disc Brake V-8 Spindle Only; Drum Brake V-8 Spindle Only; Drum Brake Spindle; Disc Brake Spindle; Drum Brake Front Spindle; Drum Brake Front thru 8/24/69; Disc Brake GT350 & 500 only.

The 1970 Falcon and Maverick drum rows are restricted to production through8/24/1969; the 1970 Mustang disc row is GT 350/GT 500 only. Earlier Falcon, Ranchero, Comet and Cyclone rows retain their V8-only restrictions.

Check how the wheel rests on the hub before evaluating spoke clearance. Part 300-11961 (listed in the installation parts list) is the specified 6.60-inch-diameter, 0.20-inch-thick steel spacer for overhanging wheel contact surfaces. The separate 300-10716 hub shield is recommended for stamped steel wheels without overhang and measures 6.15 inches by 0.09 inch.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Flexline kits: 1965-67 use 220-6471 (18"), 1968-up use 220-9195 (18").

A separately selected master cylinder may require modification of the existing pushrod assembly; it is not supplied in this brake kit.

An independently added universal parking-brake cable system may require cable or vehicle modifications. It is separate from this front service-brake kit.

Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1011

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.

Review the complete application table below with the year, submodel and installation qualifications above.
