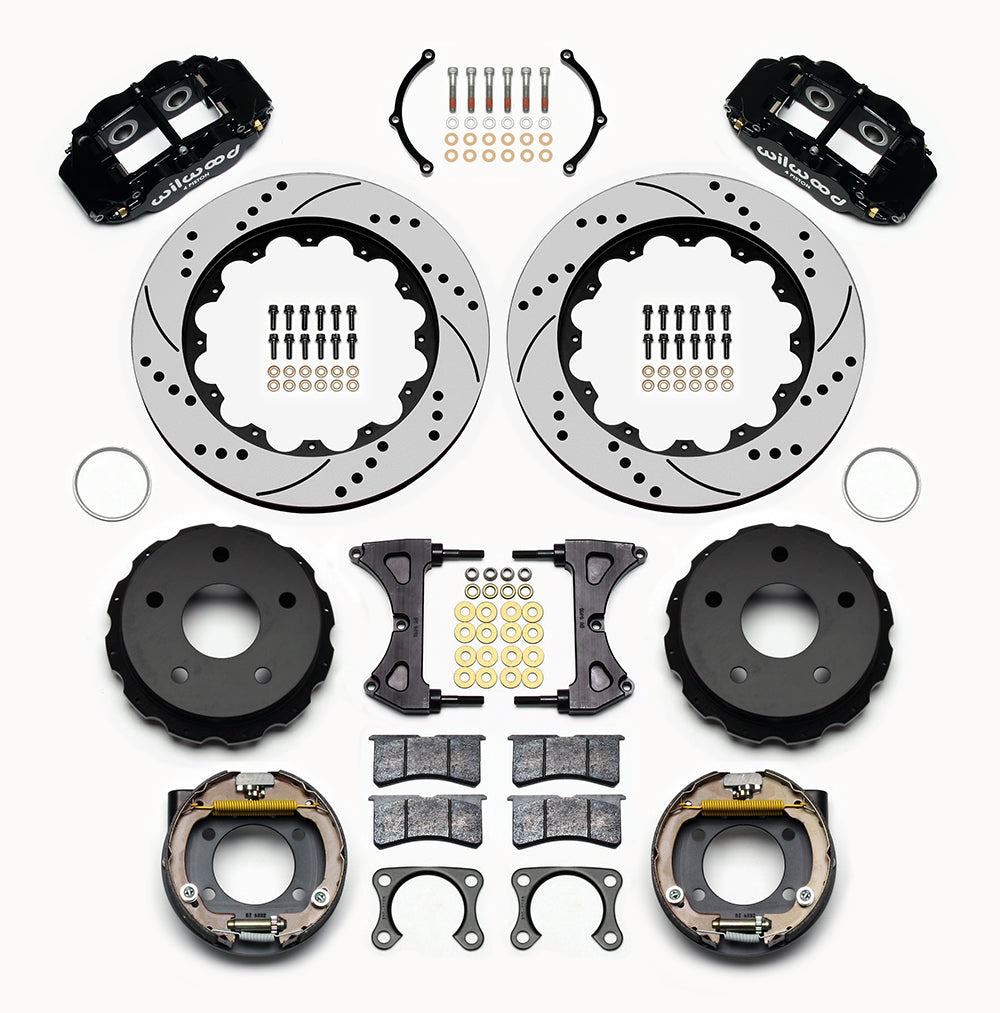

Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake parts layout with black Superlite 4R calipers, 14-inch drilled-and-slotted rotors, internal drum parking-brake assemblies, pads and mounting hardware

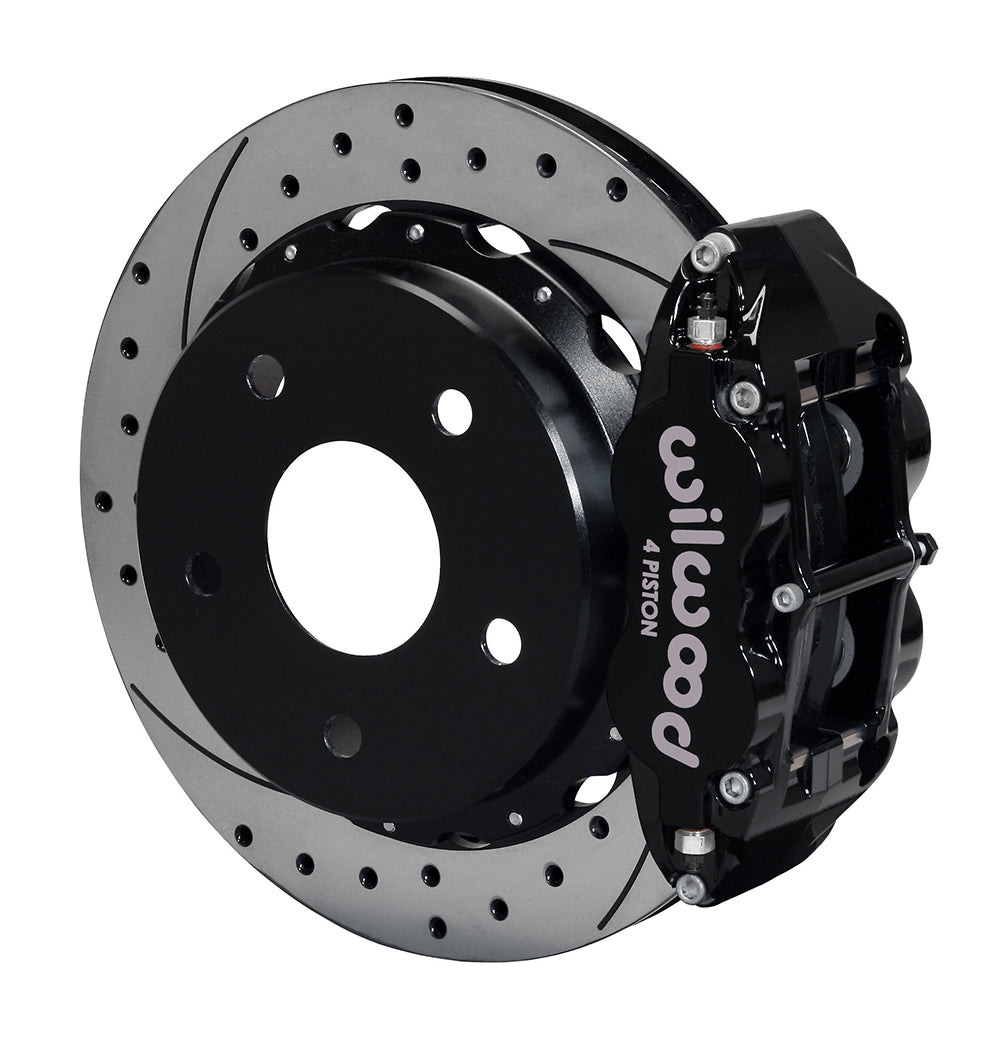

Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake single-side assembly showing a black Superlite 4R caliper beside a 14-inch drilled-and-slotted rotor
Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake parts layout with black Superlite 4R calipers, 14-inch drilled-and-slotted rotors, internal drum parking-brake assemblies, pads and mounting hardware
Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake single-side assembly showing a black Superlite 4R caliper beside a 14-inch drilled-and-slotted rotor

Wilwood Black Rear Superlite Parking Brake Kit with 14-Inch SRP Rotors, Big Ford Bronco 2.36-Inch Offset

SKU: 140-13333-D

$2,494.08 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The black-caliper SRP version of this Big Ford Bronco rear kit uses drilled-and-slotted friction rings. Radial brackets locate the four-piston service calipers outside the internal parking-brake assemblies. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.

Technical Details

  • Manufacturer part number: 140-13333-D
  • Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm
  • Stud-hole / clearance provision: 0.640 in; 16.26 mm; diameter provision, not a thread designation
  • Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
  • Rear axle-end interface: Big Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
  • Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Separate rotor-hat specification: Iron; Black E-Coat; offset 1.540 inch; part 170-13326
  • Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted
  • Caliper assembly: Forged Narrow Superlite 4R; 4 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat

Fitment & Compatibility

Measure the axle-end geometry against DS1028, including register and 2.36-inch offset. Verify the wheel template rather than assuming all 18-inch wheels clear this larger rotor package.

A maximum flange diameter of 6.61 inches and a 0.050-inch x 45-degree chamfer are specified for rotor clearance. The illustrated register is 2.88 inches; select the documented centering arrangement and match both axle offset and housing-end bolt pattern.

The installation reference identifies Big Ford Bronco rear applications with 3300-lb axle/11-inch drums for 1966–1975 and the listed 1976–1977 configurations. Verify the actual flange,2.36-inch offset and axle register.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.
