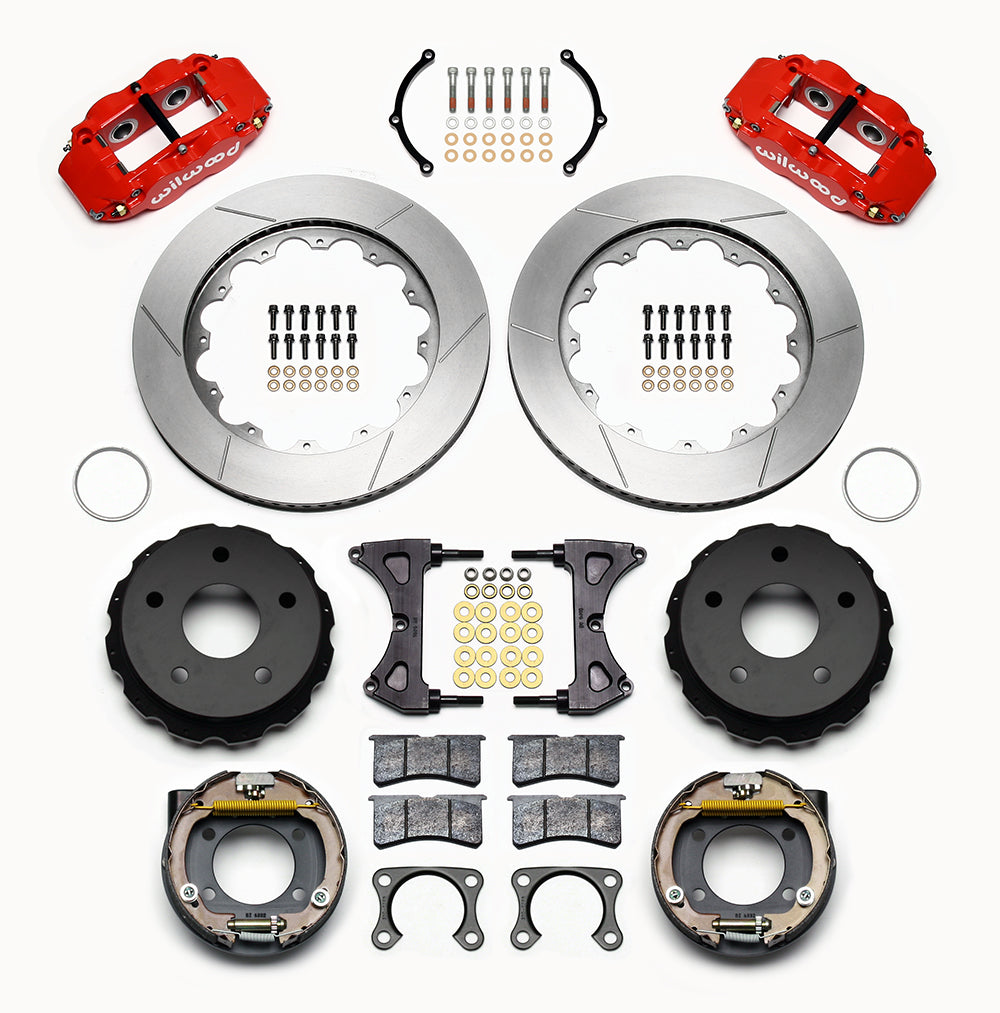

Wilwood Small Ford Bronco 2.36-inch-offset rear parking-brake parts layout with red Superlite 4R calipers, 14-inch slotted rotor rings, internal drum parking-brake assemblies, pads and mounting hardware

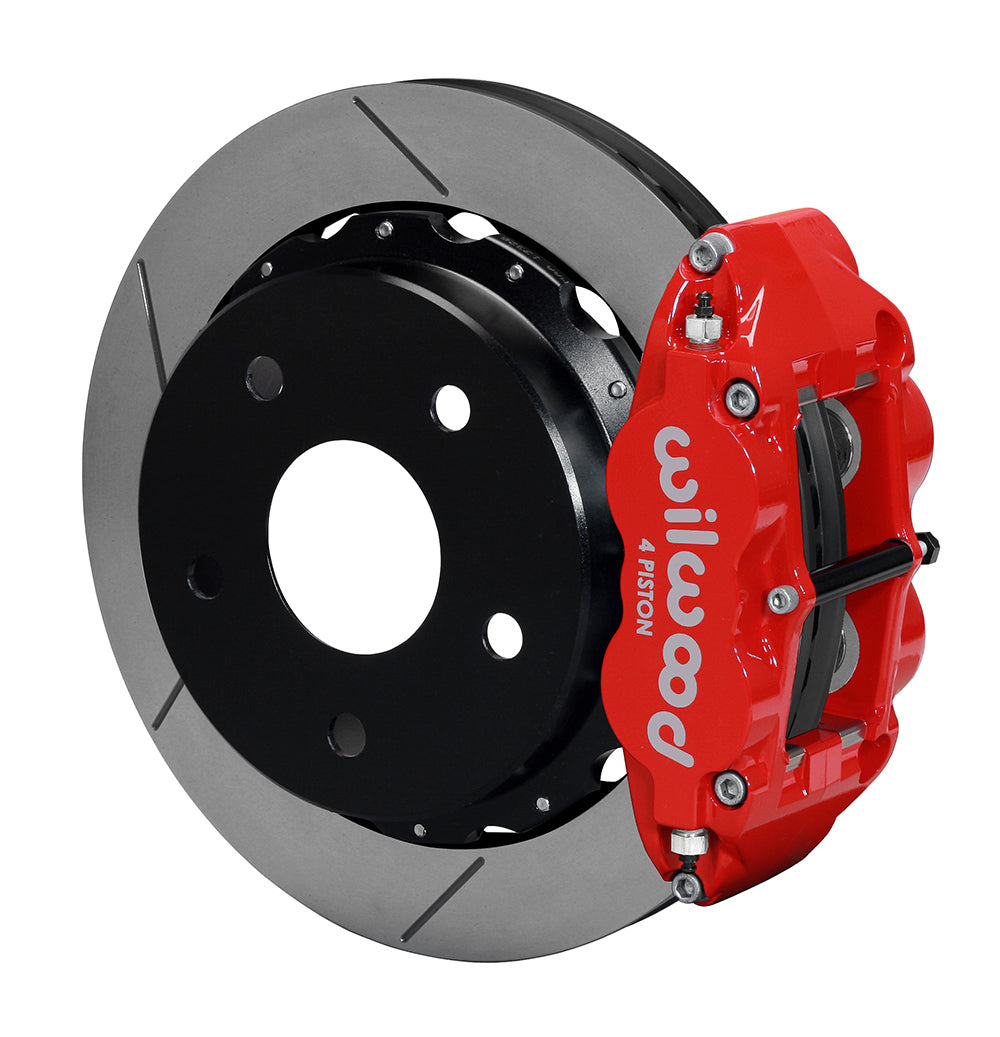

Wilwood Small Ford Bronco 2.36-inch-offset rear parking-brake single-side assembly showing a red Superlite 4R caliper beside a 14-inch slotted rotor ring
Wilwood Small Ford Bronco 2.36-inch-offset rear parking-brake parts layout with red Superlite 4R calipers, 14-inch slotted rotor rings, internal drum parking-brake assemblies, pads and mounting hardware
Wilwood Small Ford Bronco 2.36-inch-offset rear parking-brake single-side assembly showing a red Superlite 4R caliper beside a 14-inch slotted rotor ring

Wilwood Rear Red Superlite Brake Package, Slotted 14-Inch GT Rotors for Small Ford Bronco Axle Ends

SKU: 140-13332-R

$2,494.08 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

GT-slotted rear rotors, red four-piston calipers and internal parking brakes form this Small Ford Bronco package. Its 14-inch friction rings use iron hats sized for the documented axle register and wheel pattern. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.

Technical Details

  • Manufacturer part number: 140-13332-R
  • Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
  • Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; GT Slotted
  • Caliper assembly: Forged Narrow Superlite 4R; 4 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm
  • Stud-hole / clearance provision: 0.640 in; 16.26 mm; diameter provision, not a thread designation
  • Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
  • Rear axle-end interface: Small Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
  • Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Separate rotor-hat specification: Iron; Black E-Coat; offset 1.540 inch; part 170-13326

Fitment & Compatibility

Use DS1027 to check the actual housing end, not a presumed original axle. Confirm the 2.36-inch offset, wheel profile and separate hydraulic/cable requirements before assembly.

A maximum flange diameter of 6.61 inches and a 0.050-inch x 45-degree chamfer are specified for rotor clearance. The illustrated register is 2.88 inches; select the documented centering arrangement and match both axle offset and housing-end bolt pattern.

The installation reference identifies Small Ford Bronco rear applications with 2700-lb axle/10-inch drums for 1966–1973 and 2900-lb axle/10-inch drums for 1974–1975. The measured2.36-inch offset and actual housing flange still govern selection.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.
