Product details

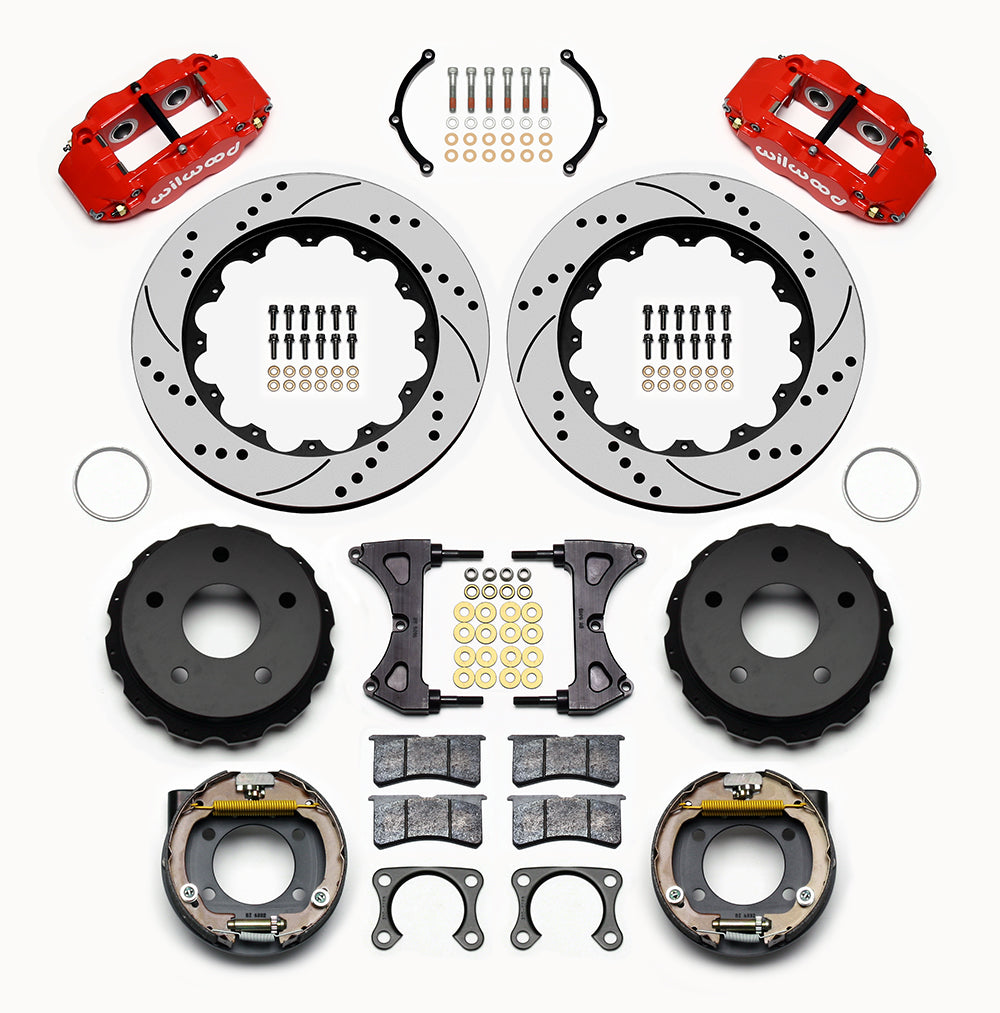

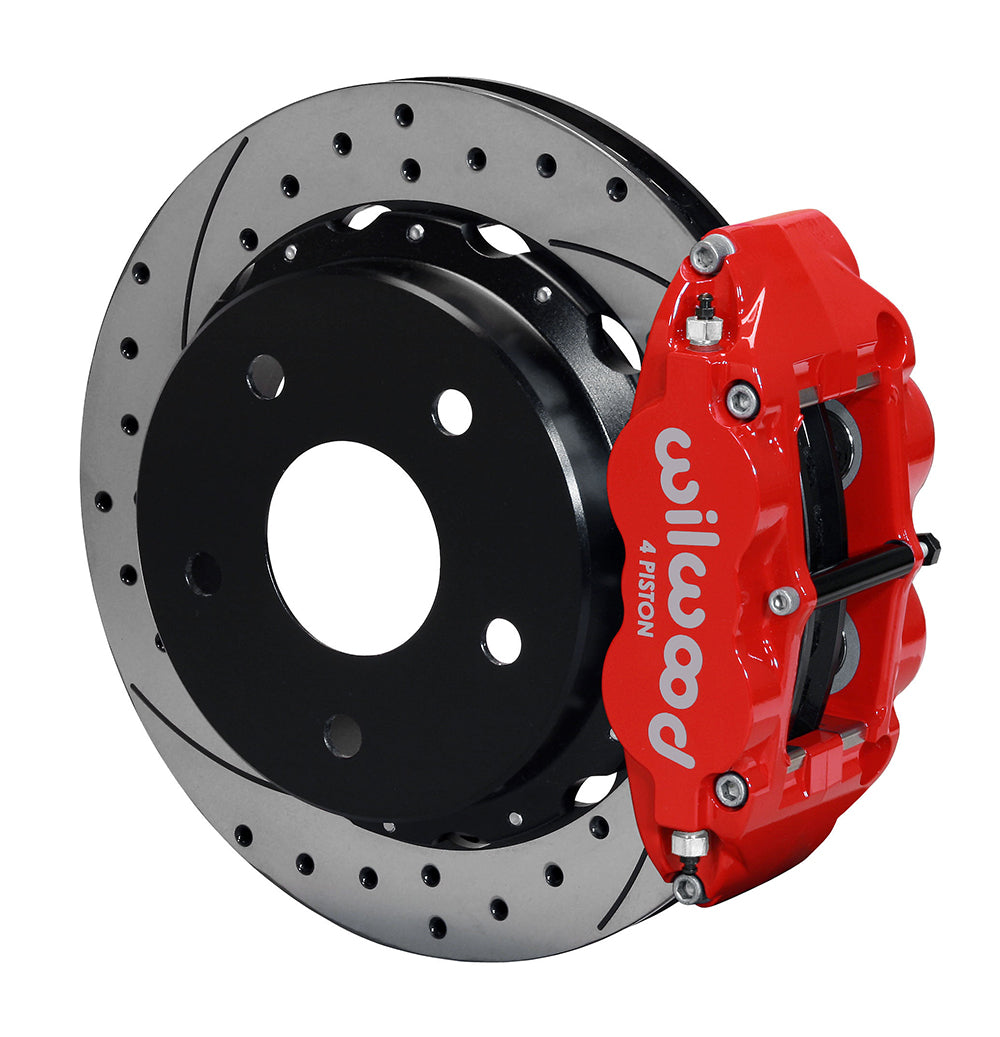

Red Superlite calipers operate against 14-inch drilled-and-slotted rotors in this rear conversion. The Small Ford Bronco brackets are selected by housing flange and 2.36-inch axle offset. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 140-13332-DR
- Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
- Rear axle-end interface: Small Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
- Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Separate rotor-hat specification: Iron; Black E-Coat; offset 1.540 inch; part 170-13326
- Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness
- Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted
- Caliper assembly: Forged Narrow Superlite 4R; 4 pistons per caliper; Forged Aluminium body; Radial mount
- Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm
- Stud-hole / clearance provision: 0.640 in; 16.26 mm; diameter provision, not a thread designation
- Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
Fitment & Compatibility
Match the actual axle-end dimensions to DS1027 and verify its 5 x 5.50-inch pattern. Check the complete radial-caliper envelope before adapting the separate parking-brake cables.
A maximum flange diameter of 6.61 inches and a 0.050-inch x 45-degree chamfer are specified for rotor clearance. The illustrated register is 2.88 inches; select the documented centering arrangement and match both axle offset and housing-end bolt pattern.
The installation reference identifies Small Ford Bronco rear applications with 2700-lb axle/10-inch drums for 1966–1973 and 2900-lb axle/10-inch drums for 1974–1975. The measured2.36-inch offset and actual housing flange still govern selection.
Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.
Manufacturer References
- Wilwood exact kit specifications
- Wilwood installation instructions DS1027
- Axle measurement worksheet
For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
