Product details

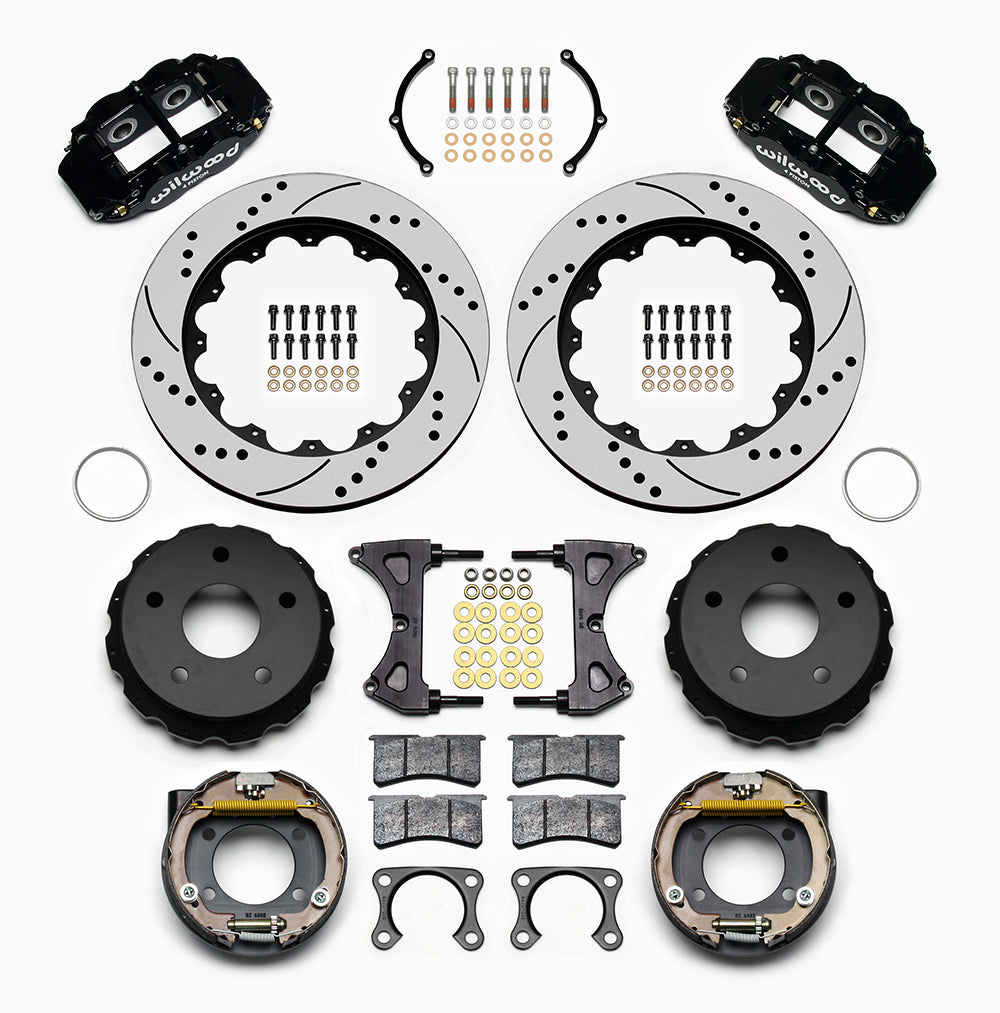

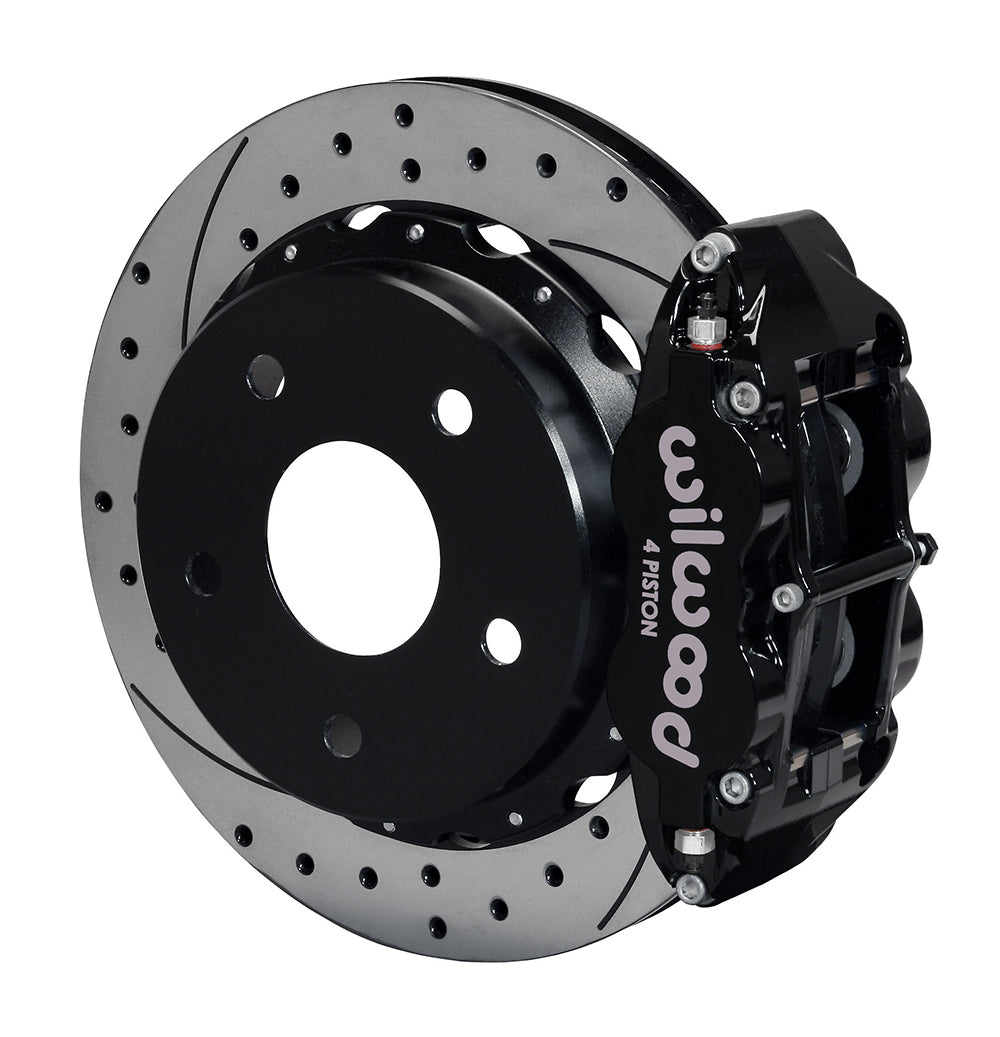

This rear conversion uses four 1.12-inch stainless pistons in each black Superlite 4R caliper. The 14-inch drilled-and-slotted rotors are paired with iron parking-brake hats and Small Ford Bronco brackets for the 2.36-inch axle offset. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.
Technical Details
- Manufacturer part number: 140-13332-D
- Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
- Stud-hole / clearance provision: 0.640 in; 16.26 mm; diameter provision, not a thread designation
- Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
- Rear axle-end interface: Small Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
- Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Separate rotor-hat specification: Iron; Black E-Coat; offset 1.540 inch; part 170-13326
- Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness
- Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted
- Caliper assembly: Forged Narrow Superlite 4R; 4 pistons per caliper; Forged Aluminium body; Radial mount
- Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm
Fitment & Compatibility
Check the Small Ford housing-end pattern against DS1027 before assembling the rotor and caliper bracket. Measure the 2.36-inch axle offset, center the hat on the correct axle register and compare its wheel-clearance drawing with the actual wheel.
The installation drawing specifies a 2.88-inch axle register and the corresponding centering-adapter arrangement. Check the housing pattern and axle offset, then confirm the flange fits within the 6.61-inch diameter limit with its 0.050-inch x 45-degree chamfer.
The installation reference identifies Small Ford Bronco rear applications with 2700-lb axle/10-inch drums for 1966–1973 and 2900-lb axle/10-inch drums for 1974–1975. The measured2.36-inch offset and actual housing flange still govern selection.
Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.
Manufacturer References
- Wilwood exact kit specifications
- Wilwood installation instructions DS1027
- Axle measurement worksheet
PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.
