Wilwood Black Six-Piston Front Brake Package, 14-Inch GT Rotors for Bronco Dana 44 Disc Spindles (1976–1977)

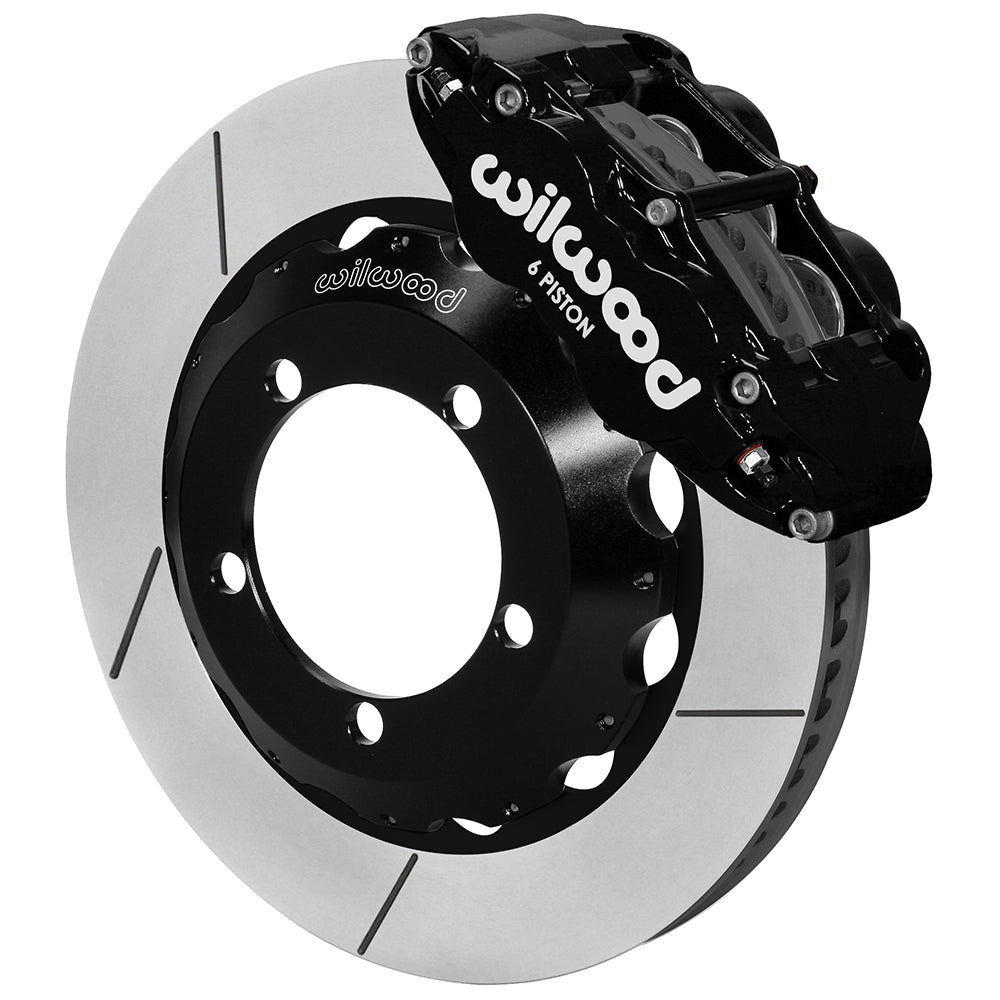

Black six-piston calipers clamp slotted 14-inch rotors in this Bronco factory-disc front conversion. Compatible original hubs are retained, and the specified flexible hoses are included. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.

Technical Details

• Manufacturer part number: 140-13330

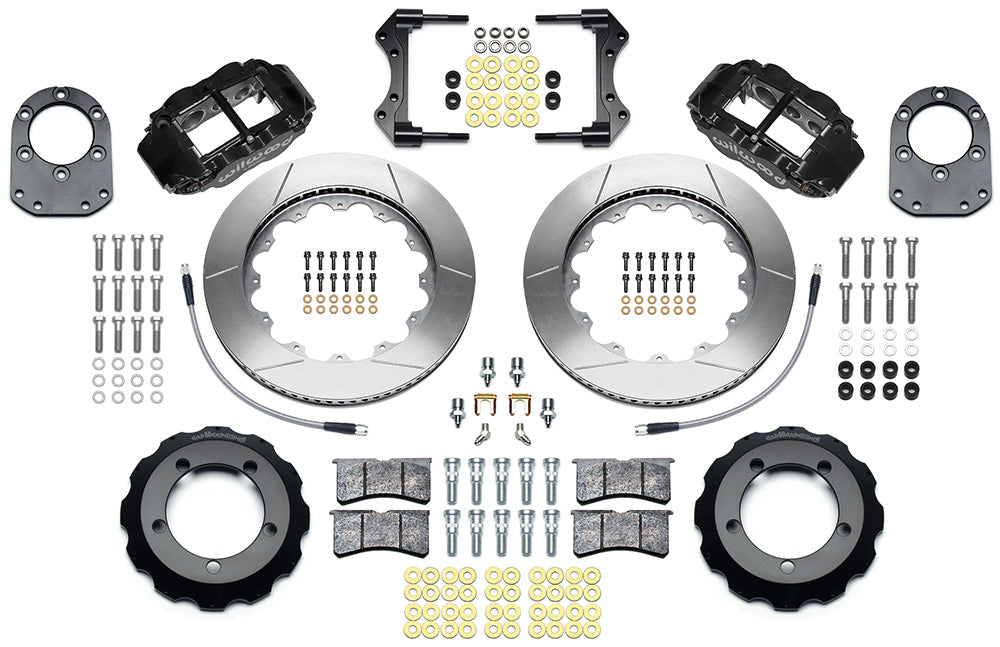

• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Stud-hole / clearance provision: 0.640 in; 16.26 mm; diameter provision, not a thread designation
• Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
• Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: Yes
• Specified pad compound: BP-10
• Separate rotor-hat specification: Aluminum; Black E-Coat; offset current exact kit and hat pages list 1.000 inch, while the linked installation parts list labels 1.300 inches; manufacturer confirmation required before relying on this dimension; part 170-13314
• Published wheel-position / hub offset: +.00 inch per side; verify against the documented spindle assembly
• Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.25 in; 31.75 mm thickness
• Rotor construction: Spec-37 Iron; Vented; GT Slotted
• Caliper assembly: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; Radial mount
• Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm

Fitment & Compatibility

Verify the 1976–1977 Dana 44 disc spindle and modified dust shield against DS1024. The kit does not fit GM disc-brake/spindle conversion components and needs a wheel-profile check.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Ford Bronco.

For 1976–1977 Bronco Dana 44 factory-disc spindles only. GM disc-brake/spindle conversion components are excluded.

The included stainless steel braided hydraulic hose kit is 220-13319, listed as 14.00 inches. Route it with adequate steering and suspension clearance.

Kit will not work with GM Disc Brake / Spindle components.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1024

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.

Review the complete application table below with the year, submodel and installation qualifications above.
