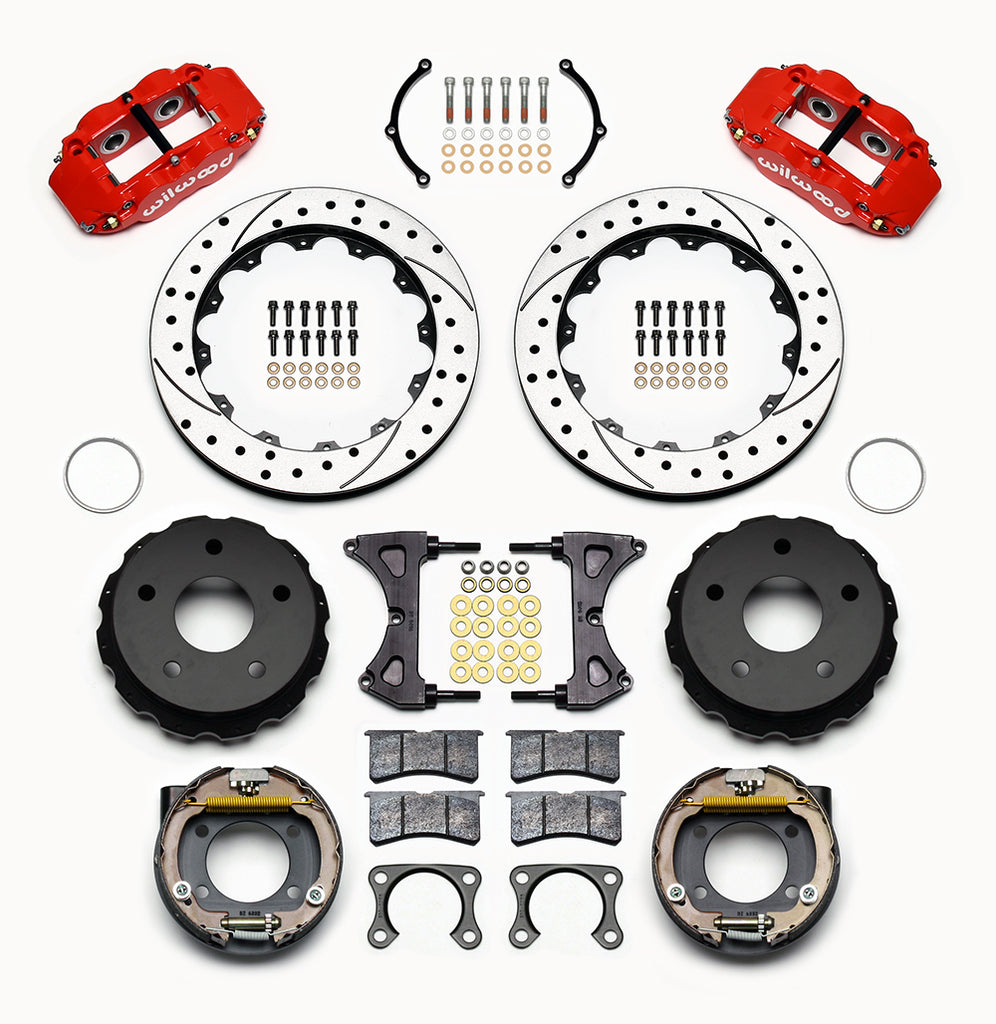

Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake parts layout with red Superlite 4R calipers, 12.88-inch drilled-and-slotted rotors, internal drum parking-brake assemblies, pads and mounting hardware

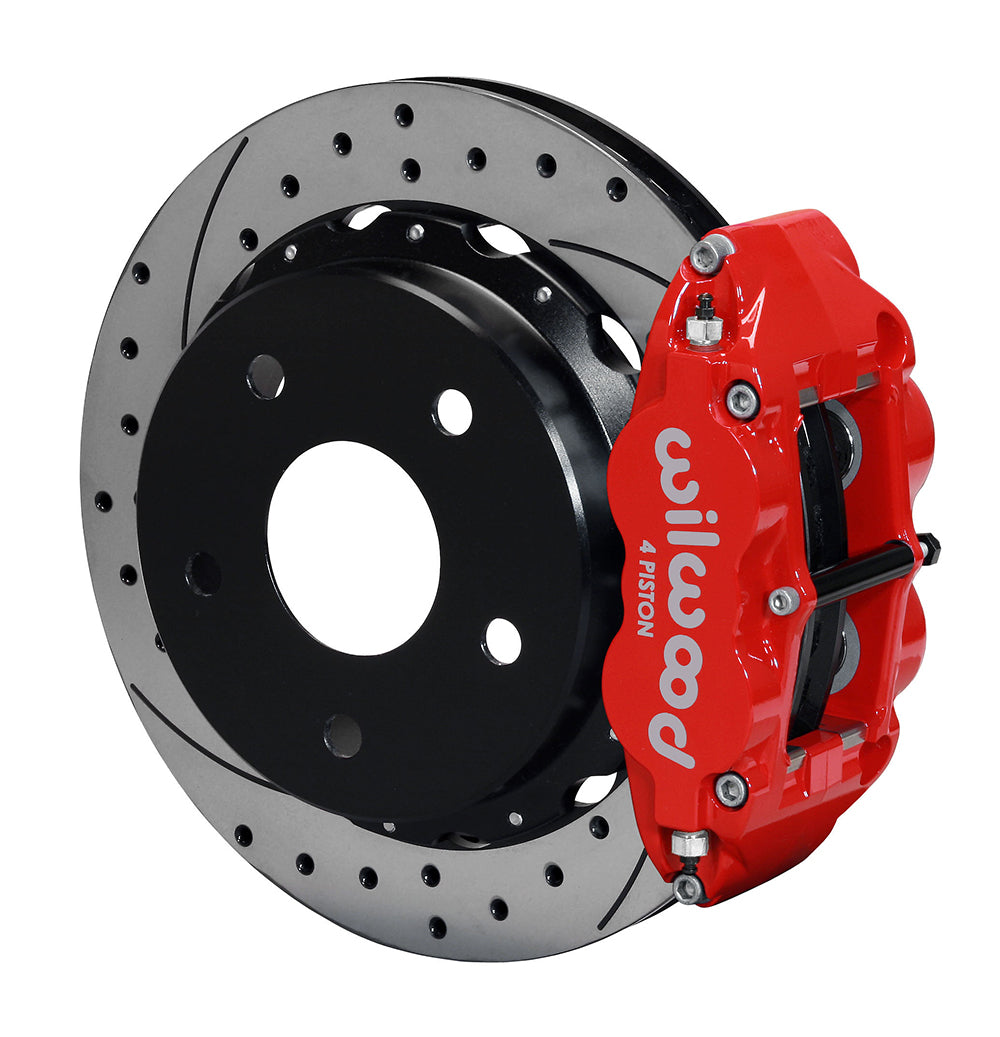

Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake single-side assembly showing a red Superlite 4R caliper beside a 12.88-inch drilled-and-slotted rotor
Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake parts layout with red Superlite 4R calipers, 12.88-inch drilled-and-slotted rotors, internal drum parking-brake assemblies, pads and mounting hardware
Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake single-side assembly showing a red Superlite 4R caliper beside a 12.88-inch drilled-and-slotted rotor

Wilwood Red Rear Superlite 4R Parking Brake Kit, Big Ford Bronco Axle Ends with 12.88-Inch Drilled/Slotted Rotors

SKU: 140-13323-DR

$2,299.11 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red four-piston Superlite calipers and SRP rotor faces identify this Big Ford Bronco rear conversion. It incorporates internal parking brakes, with the axle-end bracket dimensions governing alignment. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

  • Manufacturer part number: 140-13323-DR
  • Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm
  • Stud-hole / clearance provision: 0.640 in; 16.26 mm; diameter provision, not a thread designation
  • Wheel diameter starting requirement: 17 in; 431.8 mm; verify the individual wheel against the installation drawing
  • Rear axle-end interface: Big Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
  • Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Separate rotor-hat specification: Iron; Black E-Coat; offset 1.540 inch; part 170-13326
  • Rotor dimensions: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted
  • Caliper assembly: Forged Narrow Superlite 4R; 4 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat

Fitment & Compatibility

Match the actual Big Ford flange, 2.36-inch offset and 5 x 5.50-inch wheel pattern to DS1018. Provide the appropriate hydraulic lines and parking-cable adaptation separately.

The hat and axle interface need three independent checks: the housing-end pattern, the specified offset and the illustrated 2.88-inch register/centering arrangement. Flange diameter is limited to 6.61 inches; the drawing also calls for a 45-degree chamfer measuring 0.050 inch.

The installation reference identifies Big Ford Bronco rear applications with 3300-lb axle/11-inch drums for 1966–1975 and the listed 1976–1977 configurations. Verify the actual flange,2.36-inch offset and axle register.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.
