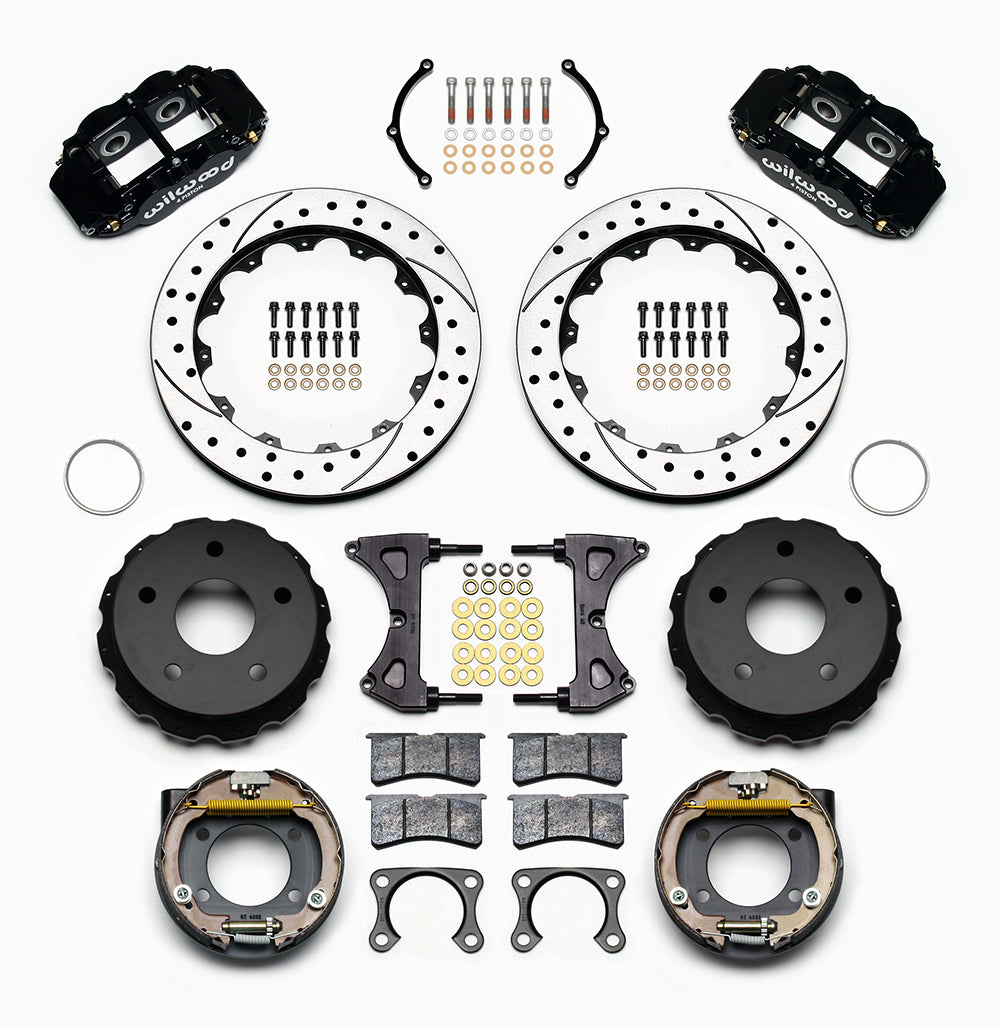

Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake parts layout with black Superlite 4R calipers, 12.88-inch drilled-and-slotted rotors, internal drum parking-brake assemblies, pads and mounting hardware

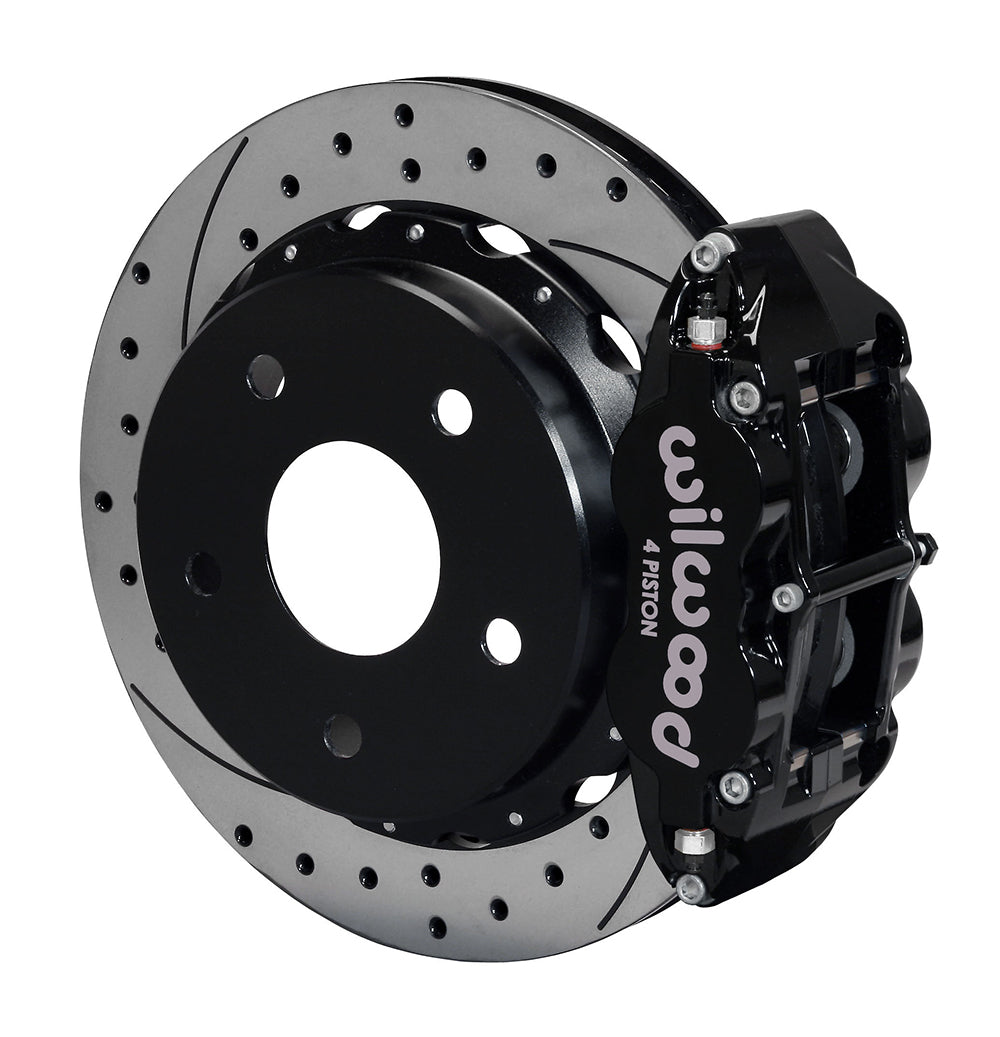

Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake single-side assembly showing a black Superlite 4R caliper beside a 12.88-inch drilled-and-slotted rotor

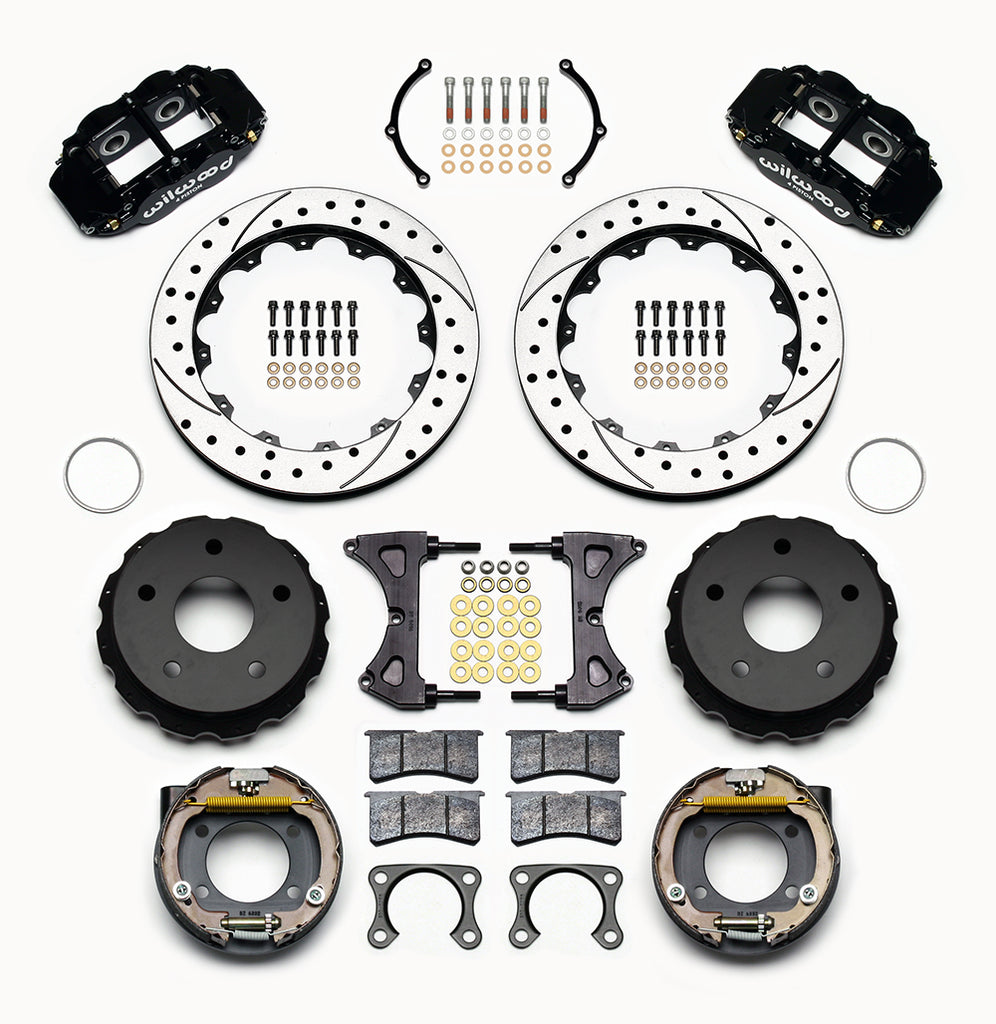

Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake parts layout with black Superlite 4R calipers, 12.88-inch drilled-and-slotted rotors, internal drum parking-brake assemblies, pads and mounting hardware
Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake single-side assembly showing a black Superlite 4R caliper beside a 12.88-inch drilled-and-slotted rotor

Wilwood Rear Superlite SRP Brake Conversion, Black, Big Ford Bronco 2.36-Inch Offset with Parking Brake

SKU: 140-13323-D

$2,299.11 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This Big Ford Bronco rear package uses drilled-and-slotted rotors and black radial-mount calipers. Its 12.88-inch friction rings connect to hats surrounding the mechanical parking-brake assemblies. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.

Technical Details

  • Manufacturer part number: 140-13323-D
  • Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
  • Caliper assembly: Forged Narrow Superlite 4R; 4 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm
  • Stud-hole / clearance provision: 0.640 in; 16.26 mm; diameter provision, not a thread designation
  • Wheel diameter starting requirement: 17 in; 431.8 mm; verify the individual wheel against the installation drawing
  • Rear axle-end interface: Big Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
  • Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Separate rotor-hat specification: Iron; Black E-Coat; offset 1.540 inch; part 170-13326
  • Rotor dimensions: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted

Fitment & Compatibility

Check the measured flange-to-wheel-face offset against the specified 2.36 inches. Follow DS1018 for register centering, wheel clearance and the separately adapted parking-cable and hose connections.

Measure the axle flange and register before mounting the brake: the flange must be no larger than 6.61 inches, with a 0.050-inch chamfer at 45 degrees. Use the instructions for the 2.88-inch register and its centering adapters as applicable, alongside the required offset and housing pattern.

The installation reference identifies Big Ford Bronco rear applications with 3300-lb axle/11-inch drums for 1966–1975 and the listed 1976–1977 configurations. Verify the actual flange,2.36-inch offset and axle register.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.

Manufacturer References

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
