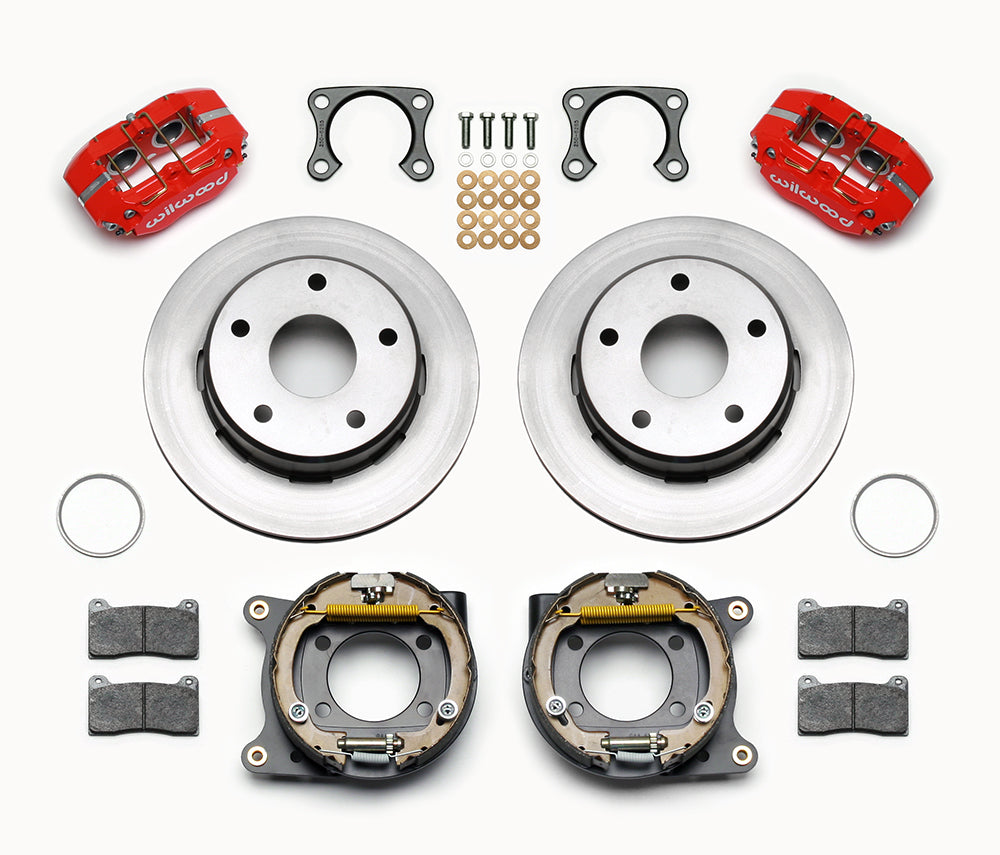

Wilwood Big Ford Bronco rear parking-brake kit laid out with red calipers, plain-face rotors, parking-brake assemblies, pads and mounting hardware

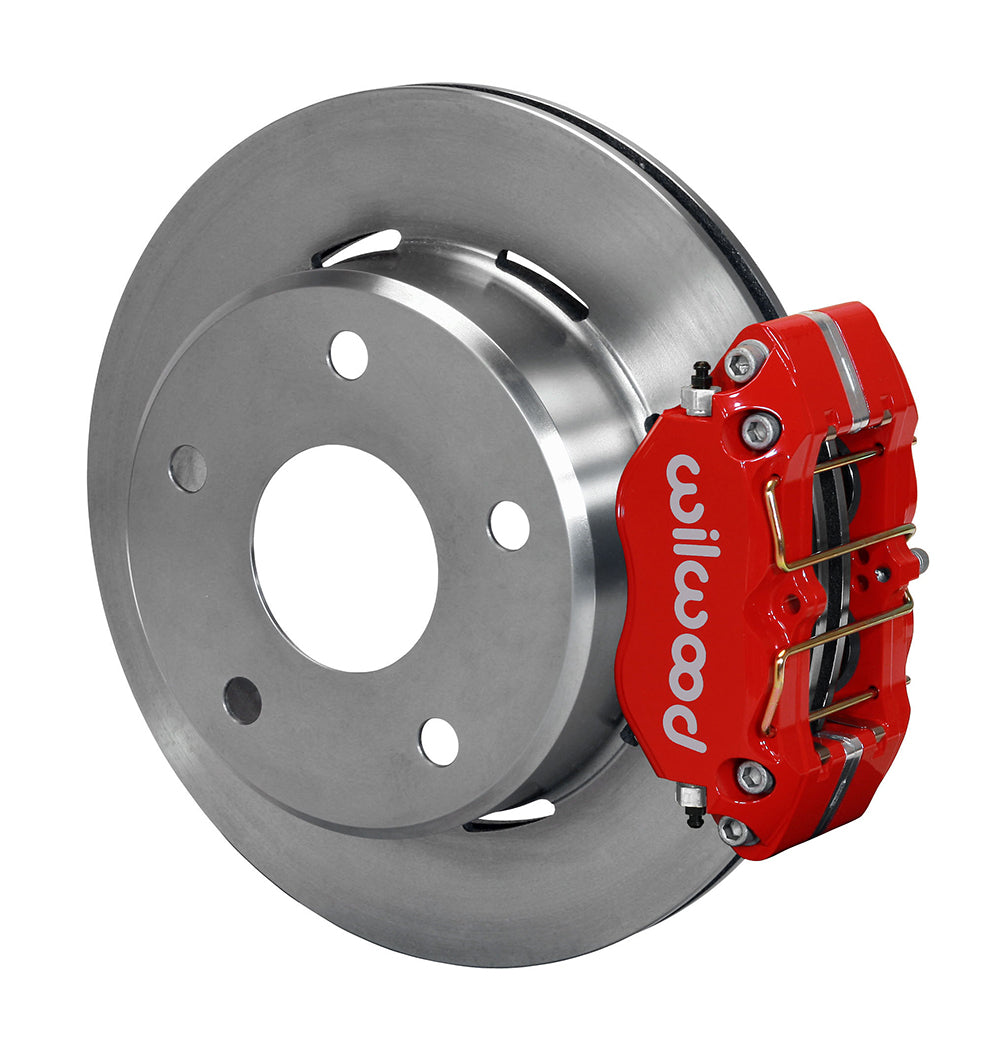

Wilwood Big Ford Bronco rear parking-brake single-side assembly with a red Dynapro Lug Mount caliper beside the plain-face rotor
Wilwood Big Ford Bronco rear parking-brake kit laid out with red calipers, plain-face rotors, parking-brake assemblies, pads and mounting hardware
Wilwood Big Ford Bronco rear parking-brake single-side assembly with a red Dynapro Lug Mount caliper beside the plain-face rotor

Wilwood Rear Red Dynapro Plain-Rotor Kit for Big Ford Bronco Axles, 2.36-Inch Offset and Internal Parking Brake

SKU: 140-13322-R

$1,298.94 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red Dynapro calipers work with plain vented 12.19-inch rotors in this Big Ford Bronco rear package. The rotor contains a separately actuated parking-brake mechanism; the wheel pattern is the specified 5 x 5.50-inch arrangement. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.

Technical Details

  • Manufacturer part number: 140-13322-R
  • Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
  • Rear axle-end interface: Big Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
  • Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
  • Rotor construction: Iron; Vented; Plain Face
  • Caliper assembly: Dynapro Lug Mount; 4 pistons per caliper; Forged Aluminium body; Lug mount
  • Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm
  • Stud-hole / clearance provision: 0.64 in; 16.26 mm; diameter provision, not a thread designation
  • Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing

Fitment & Compatibility

Confirm the flange dimensions and 2.36-inch offset on the actual axle. DS1017 provides the register, clearance and assembly requirements; cables and flexible brake plumbing are not supplied.

Measure the axle flange and register before mounting the brake: the flange must be no larger than 6.61 inches, with a 0.050-inch chamfer at 45 degrees. Use the instructions for the 2.88-inch register and its centering adapters as applicable, alongside the required offset and housing pattern.

The installation reference identifies Big Ford Bronco rear applications with 3300-lb axle/11-inch drums for 1966–1975 and the listed 1976–1977 configurations. Verify the actual flange,2.36-inch offset and axle register.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.
