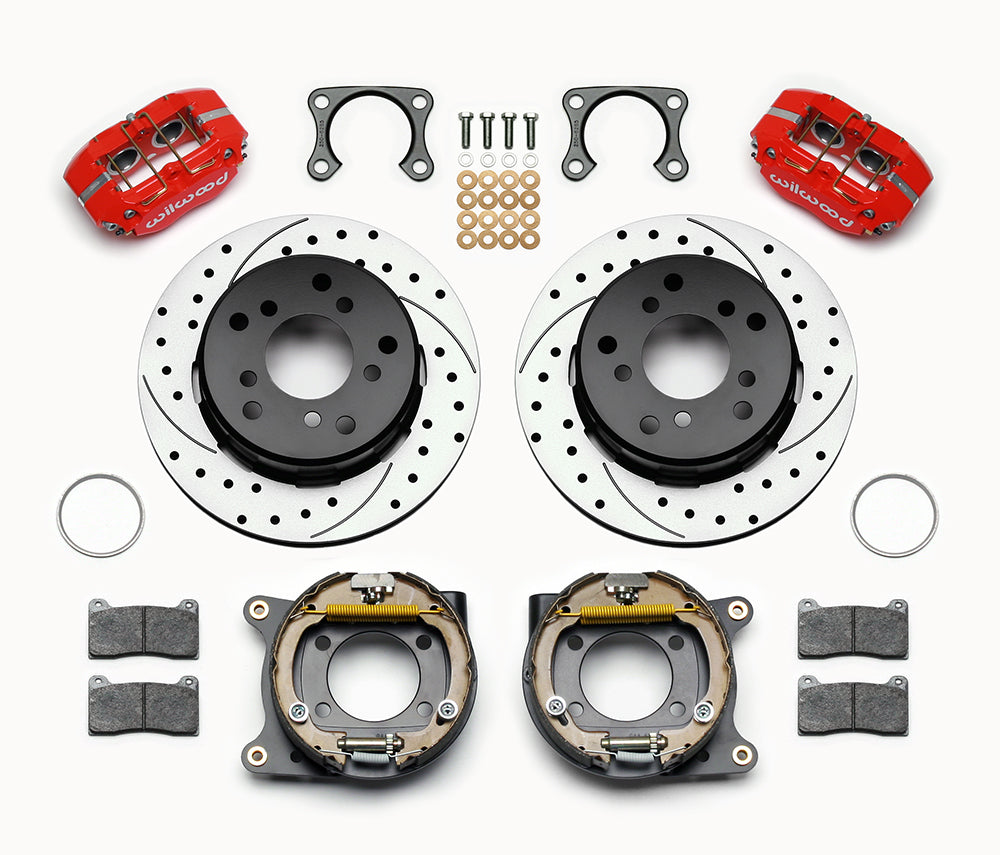

Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake parts layout with red Dynapro lug-mount calipers, 12.19-inch drilled-and-slotted rotors, internal drum parking-brake assemblies, pads and mounting hardware

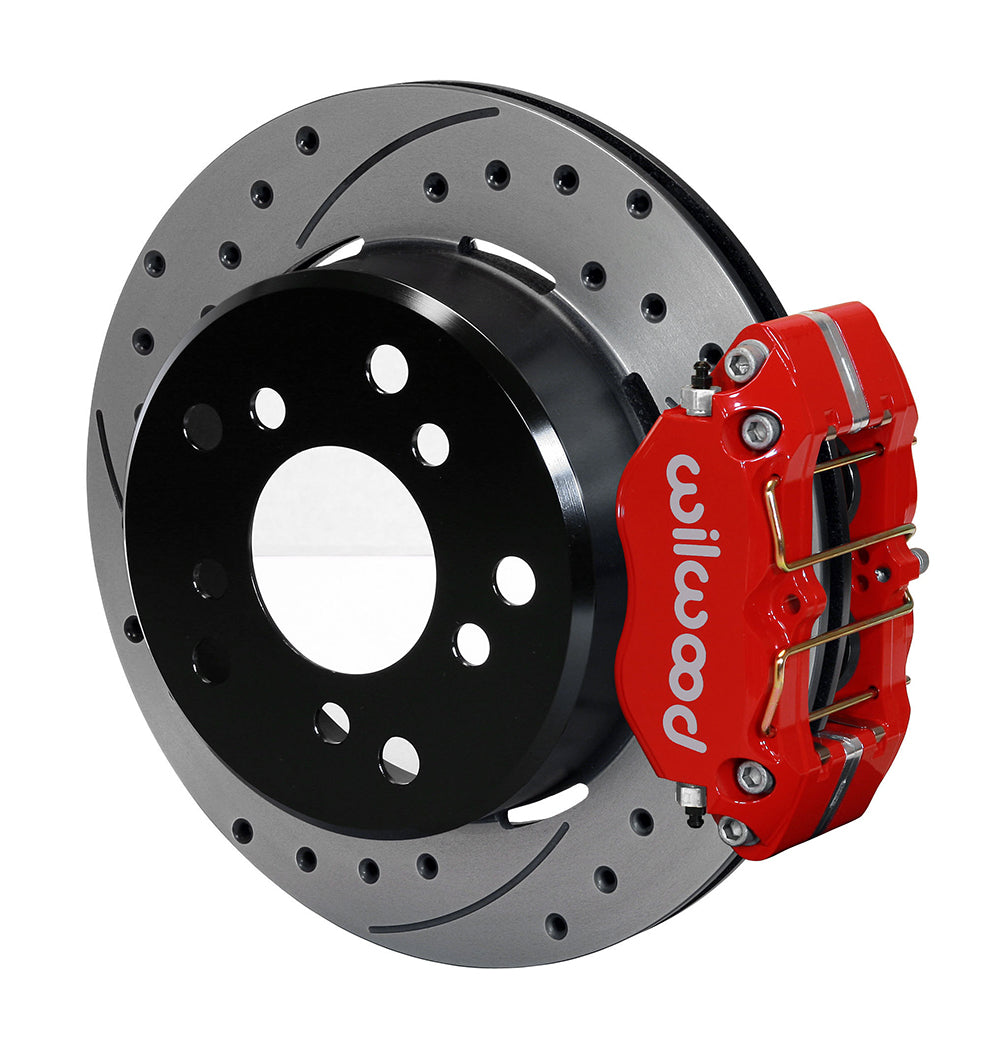

Wilwood Big Ford Bronco rear parking-brake single-side assembly with a red Dynapro Lug Mount caliper beside the drilled-and-slotted rotor
Wilwood Big Ford Bronco 2.36-inch-offset rear parking-brake parts layout with red Dynapro lug-mount calipers, 12.19-inch drilled-and-slotted rotors, internal drum parking-brake assemblies, pads and mounting hardware
Wilwood Big Ford Bronco rear parking-brake single-side assembly with a red Dynapro Lug Mount caliper beside the drilled-and-slotted rotor

Wilwood Red Rear Dynapro Parking Brake Kit with SRP Rotors, Big Ford Bronco Housing Ends and 2.36-Inch Offset

SKU: 140-13322-DR

$1,441.25 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This red-caliper rear conversion uses SRP rotor faces around an internal parking brake. It requires the Big Ford Bronco housing-end geometry, not the smaller-bearing bracket pattern. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.

Technical Details

  • Manufacturer part number: 140-13322-DR
  • Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
  • Stud-hole / clearance provision: 0.56 in; 14.22 mm; 0.64 in; 16.26 mm; diameter provision, not a thread designation
  • Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
  • Rear axle-end interface: Big Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
  • Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
  • Rotor construction: Iron; Vented; SRP Drilled & Slotted
  • Caliper assembly: Dynapro Lug Mount; 4 pistons per caliper; Forged Aluminium body; Lug mount
  • Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 5.5 in; 5 x 139.7 mm

Fitment & Compatibility

Measure the axle-end offset and register using DS1017. Confirm the actual stud pattern and wheel clearance, and choose the parking cables and hydraulic lines for the vehicle's installation.

Measure the axle flange and register before mounting the brake: the flange must be no larger than 6.61 inches, with a 0.050-inch chamfer at 45 degrees. Use the instructions for the 2.88-inch register and its centering adapters as applicable, alongside the required offset and housing pattern.

The installation reference identifies Big Ford Bronco rear applications with 3300-lb axle/11-inch drums for 1966–1975 and the listed 1976–1977 configurations. Verify the actual flange,2.36-inch offset and axle register.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.

Manufacturer References

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
