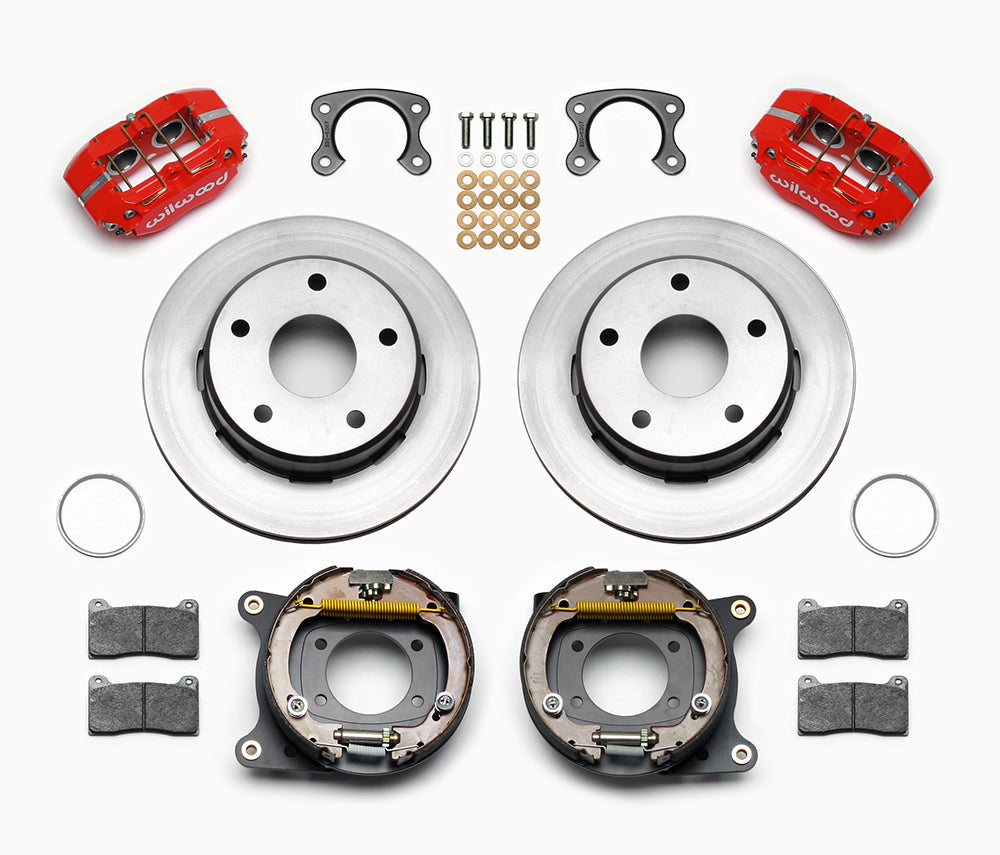

Wilwood Small Ford Bronco rear parking-brake kit laid out with red calipers, plain-face rotors, parking-brake assemblies, pads and mounting hardware

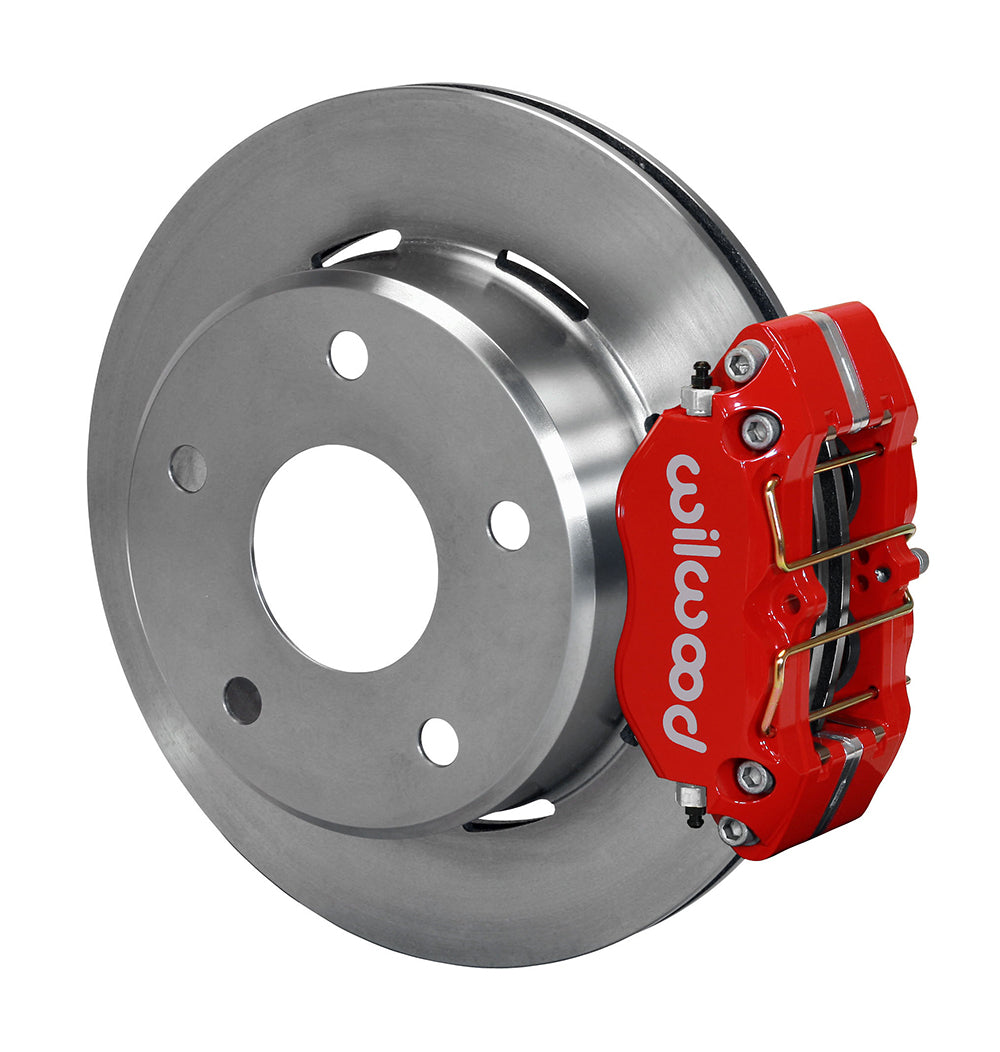

Wilwood Small Ford Bronco rear parking-brake single-side assembly with a red Dynapro Lug Mount caliper beside the plain-face rotor
Wilwood Small Ford Bronco rear parking-brake kit laid out with red calipers, plain-face rotors, parking-brake assemblies, pads and mounting hardware
Wilwood Small Ford Bronco rear parking-brake single-side assembly with a red Dynapro Lug Mount caliper beside the plain-face rotor

Wilwood Rear Plain-Rotor Brake Kit with Red Dynapro Calipers, Small Ford Bronco Axle Ends with 2.36-Inch Offset

SKU: 140-13320-R

$1,298.94 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Plain vented rotors and red Dynapro calipers form this rear conversion for Small Ford Bronco housing ends. The 5 x 5.50-inch rotor pattern is paired with the internal parking-brake assembly. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

  • Manufacturer part number: 140-13320-R
  • Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
  • Caliper assembly: Dynapro Lug Mount; 4 pistons per caliper; Forged Aluminium body; Lug mount
  • Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm
  • Stud-hole / clearance provision: 0.64 in; 16.26 mm; diameter provision, not a thread designation
  • Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
  • Rear axle-end interface: Small Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
  • Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
  • Rotor construction: Iron; Vented; Plain Face

Fitment & Compatibility

Match the actual axle end and its 2.36-inch offset, not a presumed model-year axle. DS1015 supplies the register and flange checks; select hydraulic lines and cable hardware separately.

The installation drawing specifies a 2.88-inch axle register and the corresponding centering-adapter arrangement. Check the housing pattern and axle offset, then confirm the flange fits within the 6.61-inch diameter limit with its 0.050-inch x 45-degree chamfer.

The installation reference identifies Small Ford Bronco rear applications with 2700-lb axle/10-inch drums for 1966–1973 and 2900-lb axle/10-inch drums for 1974–1975. The measured2.36-inch offset and actual housing flange still govern selection.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.

Manufacturer References

Our team at PMB Performance has over 20 years of parts and fitment experience. The existing component number and brake-system details help us check the match.
