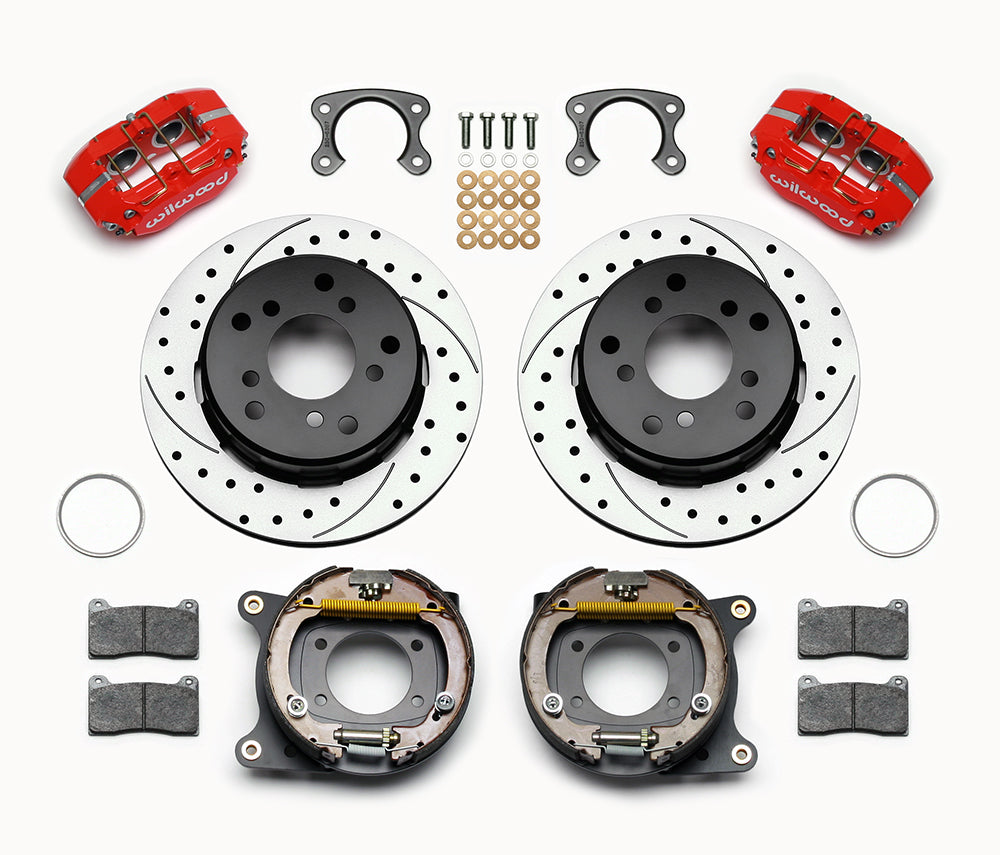

Wilwood Small Ford Bronco 2.36-inch-offset rear parking-brake parts layout with red Dynapro lug-mount calipers, 12.19-inch drilled-and-slotted rotors, internal drum parking-brake assemblies, pads and mounting hardware

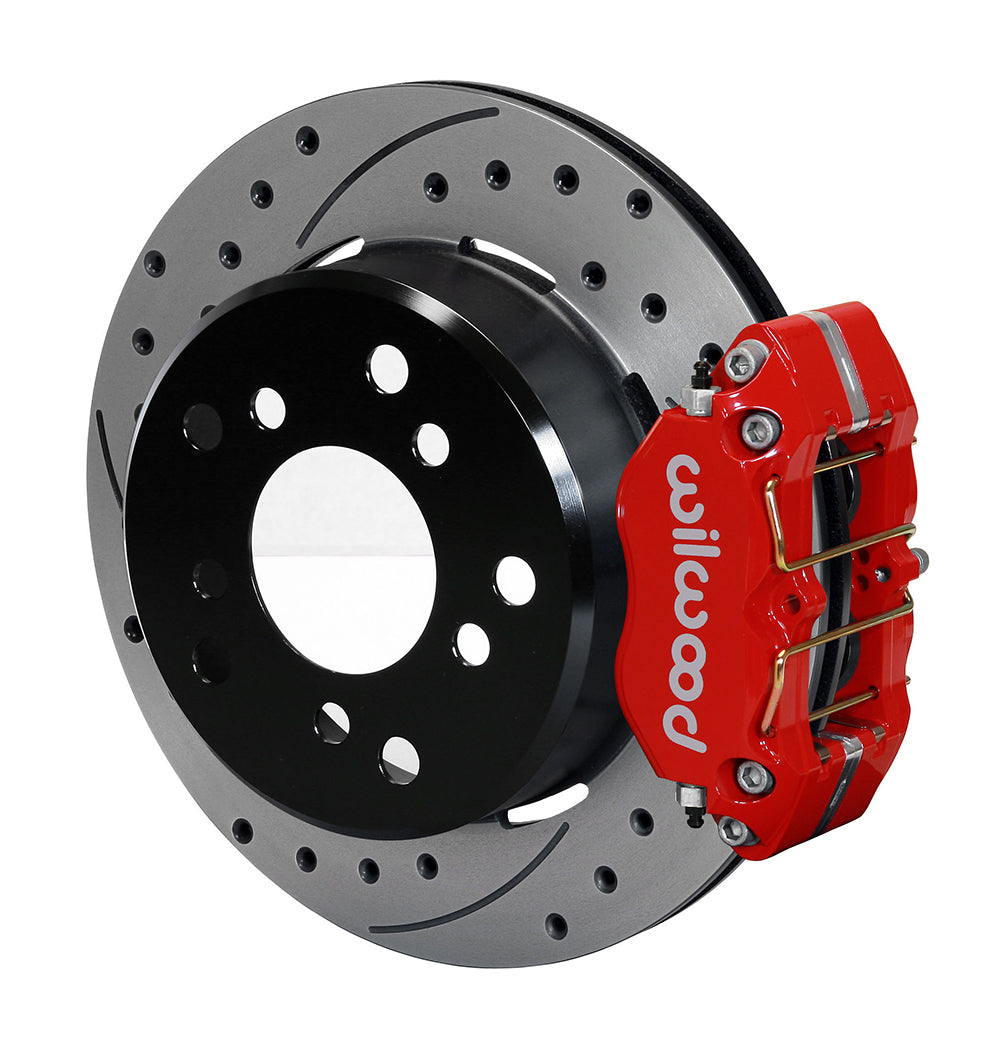

Wilwood Small Ford Bronco rear parking-brake single-side assembly with a red Dynapro Lug Mount caliper beside the drilled-and-slotted rotor
Wilwood Small Ford Bronco 2.36-inch-offset rear parking-brake parts layout with red Dynapro lug-mount calipers, 12.19-inch drilled-and-slotted rotors, internal drum parking-brake assemblies, pads and mounting hardware
Wilwood Small Ford Bronco rear parking-brake single-side assembly with a red Dynapro Lug Mount caliper beside the drilled-and-slotted rotor

Wilwood Red Rear Dynapro Parking-Brake Conversion, 12.19-Inch Drilled/Slotted Rotors for Bronco Small Ford Axles

SKU: 140-13320-DR

$1,441.25 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red four-piston calipers sit outside the SRP rotor faces in this Bronco-style Small Ford rear kit. The separate internal parking-brake mechanism requires suitable vehicle cables rather than hydraulic pressure to hold the car. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.

Technical Details

  • Manufacturer part number: 140-13320-DR
  • Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
  • Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
  • Rotor construction: Iron; Vented; SRP Drilled & Slotted
  • Caliper assembly: Dynapro Lug Mount; 4 pistons per caliper; Forged Aluminium body; Lug mount
  • Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 5.5 in; 5 x 139.7 mm
  • Stud-hole / clearance provision: 0.56 in; 14.22 mm; 0.64 in; 16.26 mm; diameter provision, not a thread designation
  • Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
  • Rear axle-end interface: Small Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
  • Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10

Fitment & Compatibility

Use DS1015 to verify the Small Ford flange and measured 2.36-inch axle offset. Confirm the axle register and the SRP rotor's listed wheel-pattern provisions before finalizing the hose and cable connections.

The installation drawing specifies a 2.88-inch axle register and the corresponding centering-adapter arrangement. Check the housing pattern and axle offset, then confirm the flange fits within the 6.61-inch diameter limit with its 0.050-inch x 45-degree chamfer.

The installation reference identifies Small Ford Bronco rear applications with 2700-lb axle/10-inch drums for 1966–1973 and 2900-lb axle/10-inch drums for 1974–1975. The measured2.36-inch offset and actual housing flange still govern selection.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.

Manufacturer References

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
