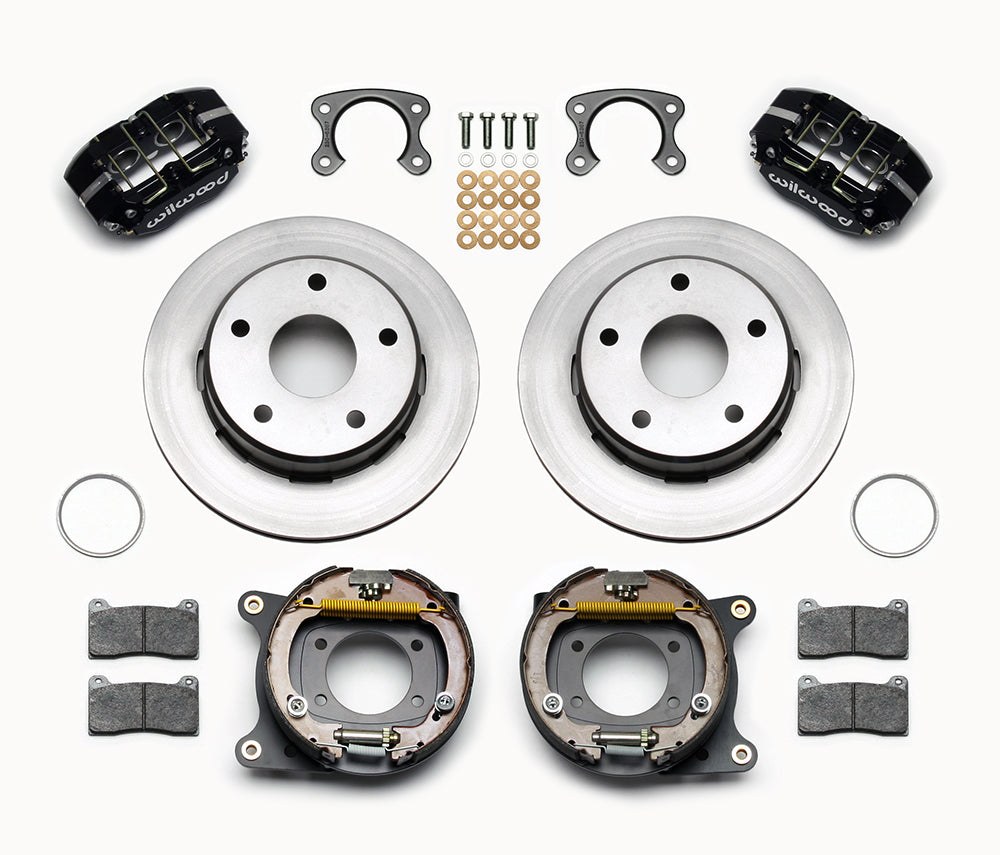

Wilwood Small Ford Bronco rear parking-brake kit laid out with black calipers, plain-face rotors, parking-brake assemblies, pads and mounting hardware

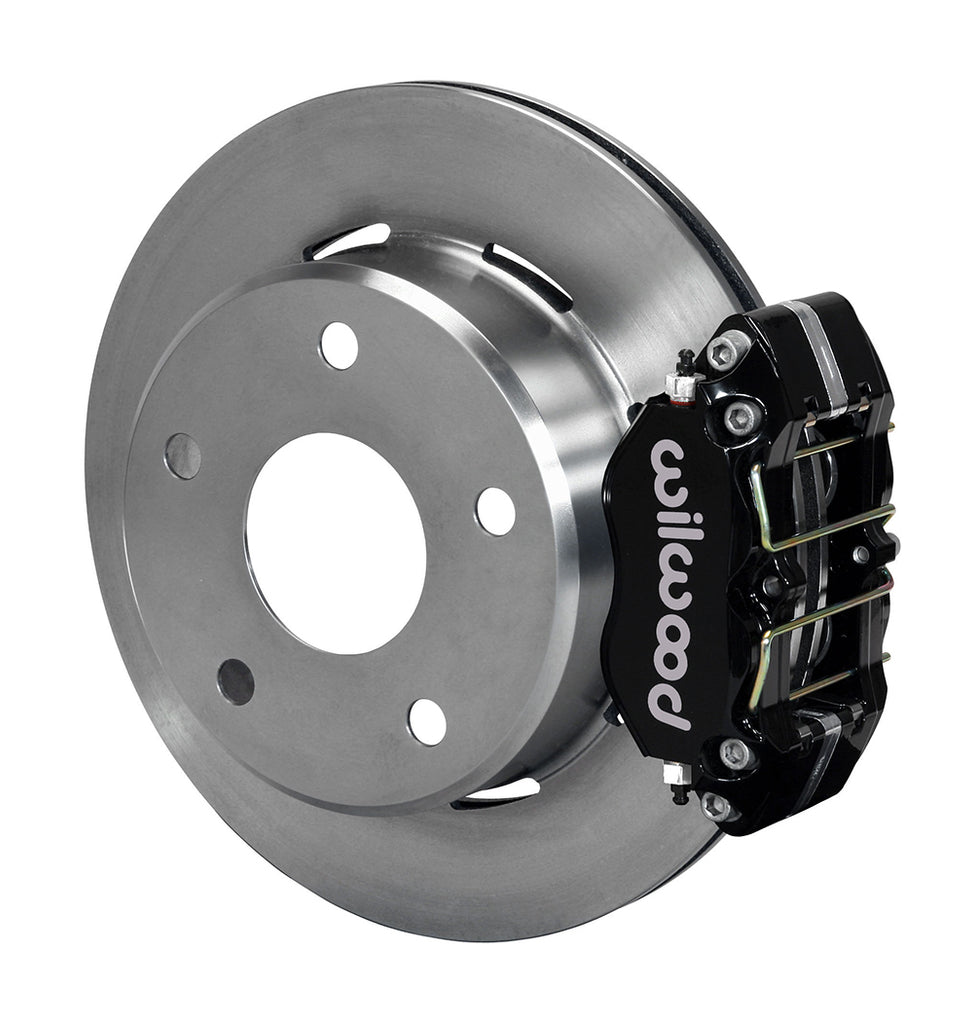

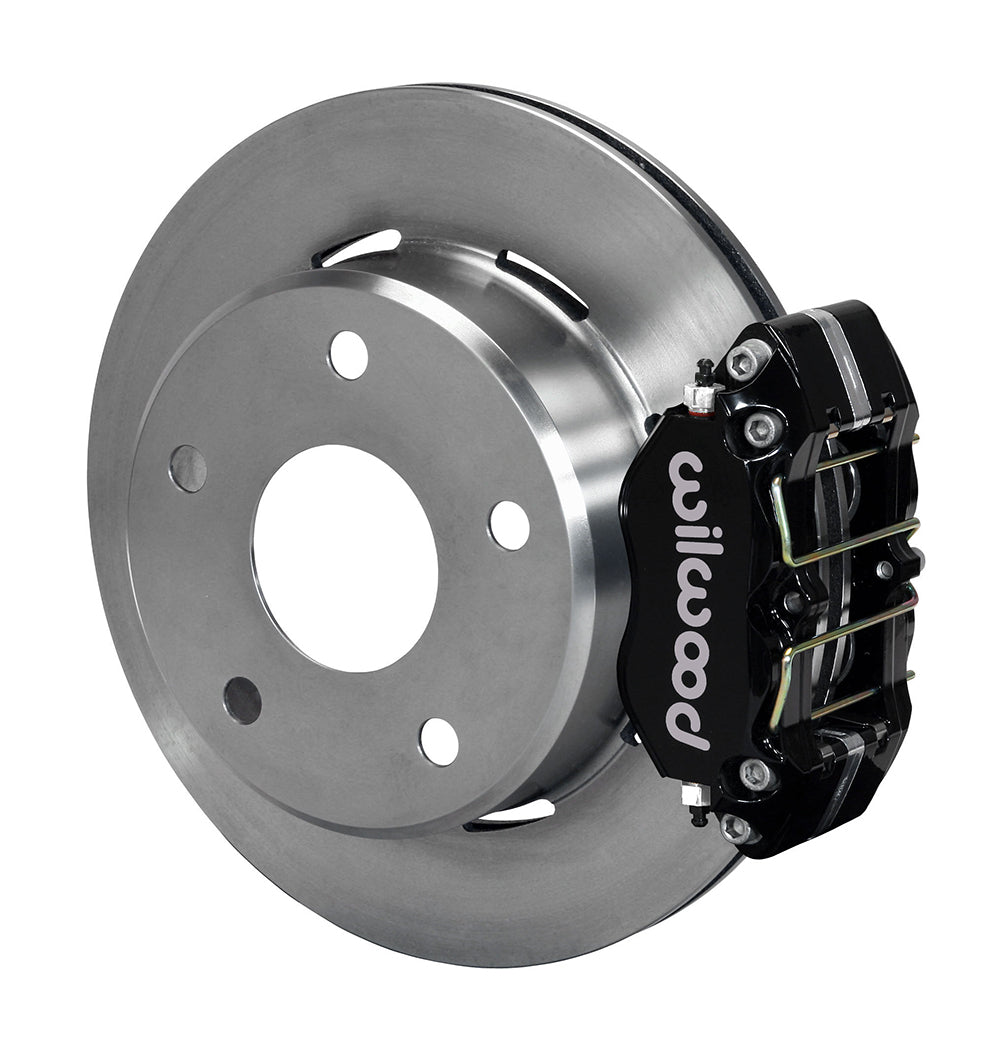

Wilwood Small Ford Bronco rear parking-brake single-side assembly with a black Dynapro Lug Mount caliper beside the plain-face rotor
Wilwood Small Ford Bronco rear parking-brake kit laid out with black calipers, plain-face rotors, parking-brake assemblies, pads and mounting hardware
Wilwood Small Ford Bronco rear parking-brake single-side assembly with a black Dynapro Lug Mount caliper beside the plain-face rotor

Wilwood Rear Dynapro Parking Brake Kit for Bronco Small Ford Axle Ends, Black, 12.19-Inch Plain Rotors

SKU: 140-13320

$1,298.94 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This Bronco-pattern rear conversion combines black four-piston Dynapro calipers and plain 12.19-inch rotors. Internal parking-brake shoes provide the mechanical function, with the bracket selected for a Small Ford housing end. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

  • Manufacturer part number: 140-13320
  • Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
  • Stud-hole / clearance provision: 0.64 in; 16.26 mm; diameter provision, not a thread designation
  • Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
  • Rear axle-end interface: Small Ford Bronco; axle/flange offset 2.36 in; 59.94 mm
  • Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
  • Rotor construction: Iron; Vented; Plain Face
  • Caliper assembly: Dynapro Lug Mount; 4 pistons per caliper; Forged Aluminium body; Lug mount
  • Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm

Fitment & Compatibility

Confirm the Small Ford Bronco flange and 2.36-inch axle offset using DS1015. The specified 5 x 5.50-inch rotor pattern, axle register and cable linkage must match the actual rear axle.

In addition to the bracket pattern and measured offset, inspect the axle flange profile. Its outside diameter may not exceed 6.61 inches and it requires the documented 0.050-inch x 45-degree chamfer. The instructions show a 2.88-inch axle register with the applicable centering provision.

The installation reference identifies Small Ford Bronco rear applications with 2700-lb axle/10-inch drums for 1966–1973 and 2900-lb axle/10-inch drums for 1974–1975. The measured2.36-inch offset and actual housing flange still govern selection.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.

Manufacturer References

Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
