Wilwood Front Black Superlite 6R Brake Kit for Ford Bronco Dana 44 Disc Spindles (1976–1977), 12.88-Inch Rotors

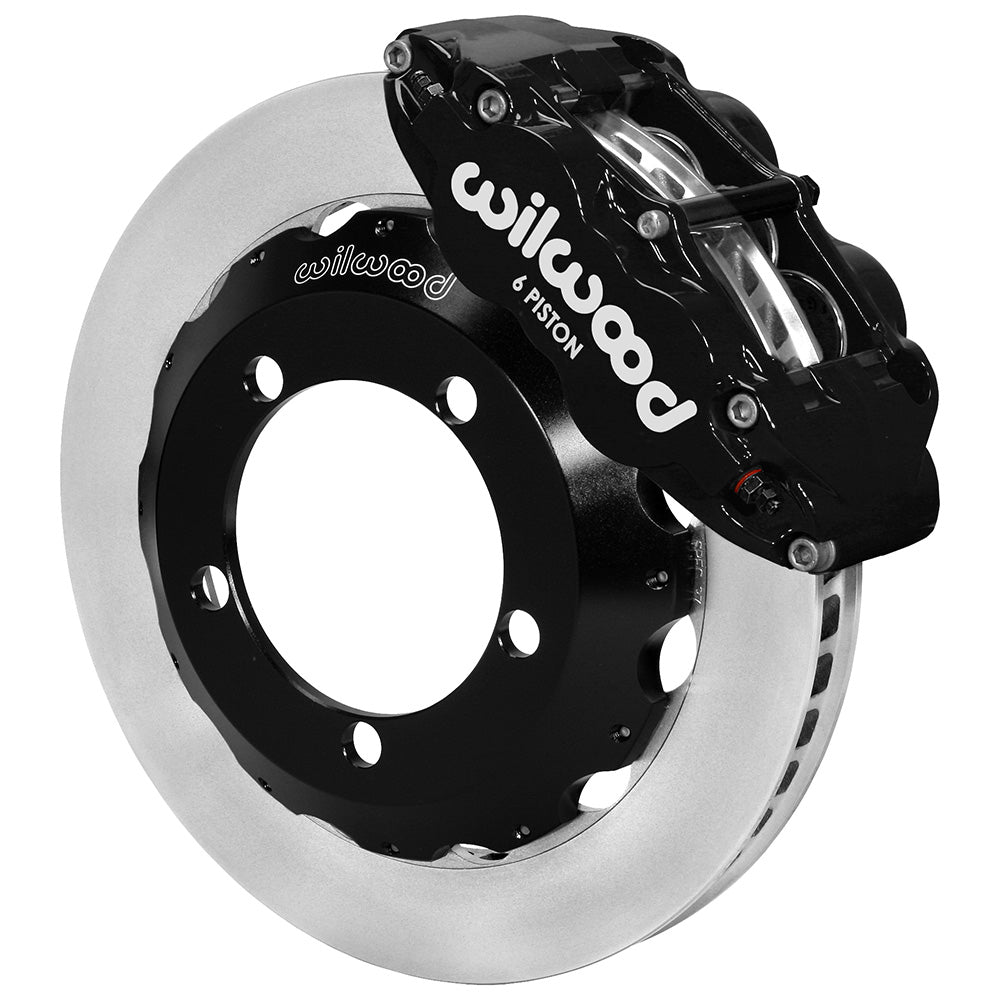

Black Superlite 6R calipers and plain 12.88-inch rotors replace the documented factory-disc Bronco front brakes. Hats retain the compatible hubs, and the kit supplies the specified flexible hoses. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.

Technical Details

• Manufacturer part number: 140-13305

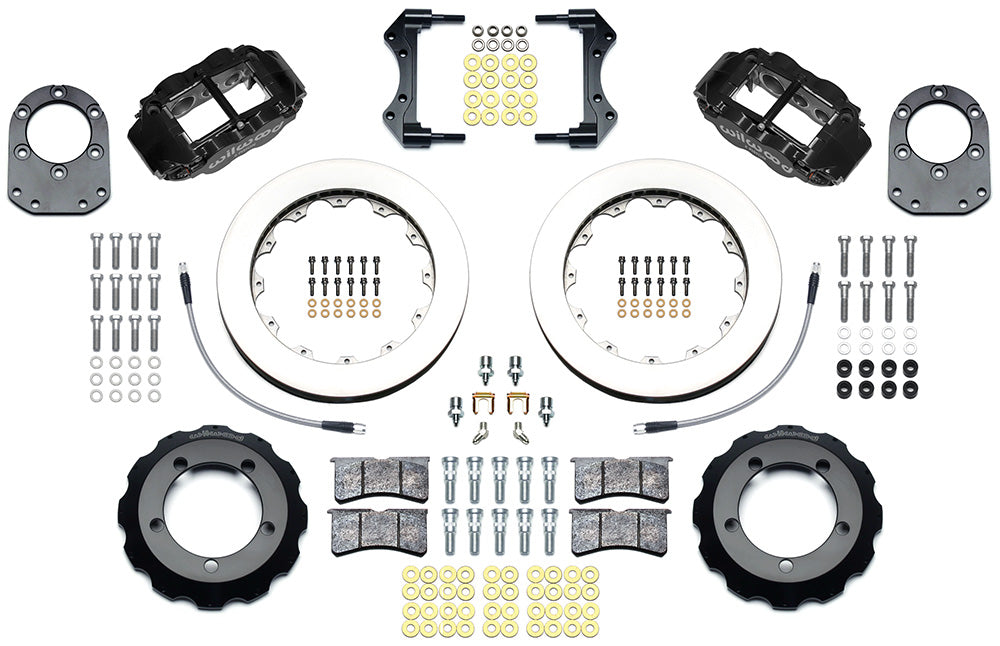

• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: Yes
• Specified pad compound: BP-10
• Separate rotor-hat specification: Aluminum; Black E-Coat; offset current exact kit and hat pages list 1.000 inch, while the linked installation parts list labels 1.300 inches; manufacturer confirmation required before relying on this dimension; part 170-13314
• Published wheel-position / hub offset: +.00 inch per side; verify against the documented spindle assembly
• Rotor dimensions: 12.88 in; 327.15 mm outside diameter; 1.25 in; 31.75 mm thickness
• Rotor construction: Spec-37 Iron; Vented; Plain Face
• Caliper assembly: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; Radial mount
• Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 5.5 in; 5 x 139.7 mm
• Stud-hole / clearance provision: 0.640 in; 16.26 mm; diameter provision, not a thread designation
• Wheel diameter starting requirement: 17 in; 431.8 mm; verify the individual wheel against the installation drawing

Fitment & Compatibility

Use only the matched 1976–1977 Dana 44 disc-spindle arrangement. The manufacturer excludes GM disc-brake/spindle components; check DS1010 for the dust-shield modification and wheel clearance.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Ford Bronco.

For 1976–1977 Bronco Dana 44 factory-disc spindles only. GM disc-brake/spindle conversion components are excluded.

The included stainless steel braided hydraulic hose kit is 220-13319, listed as 14.00 inches. Route it with adequate steering and suspension clearance.

Kit will not work with GM Disc Brake / Spindle components.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1010

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.

Review the complete application table below with the year, submodel and installation qualifications above.
