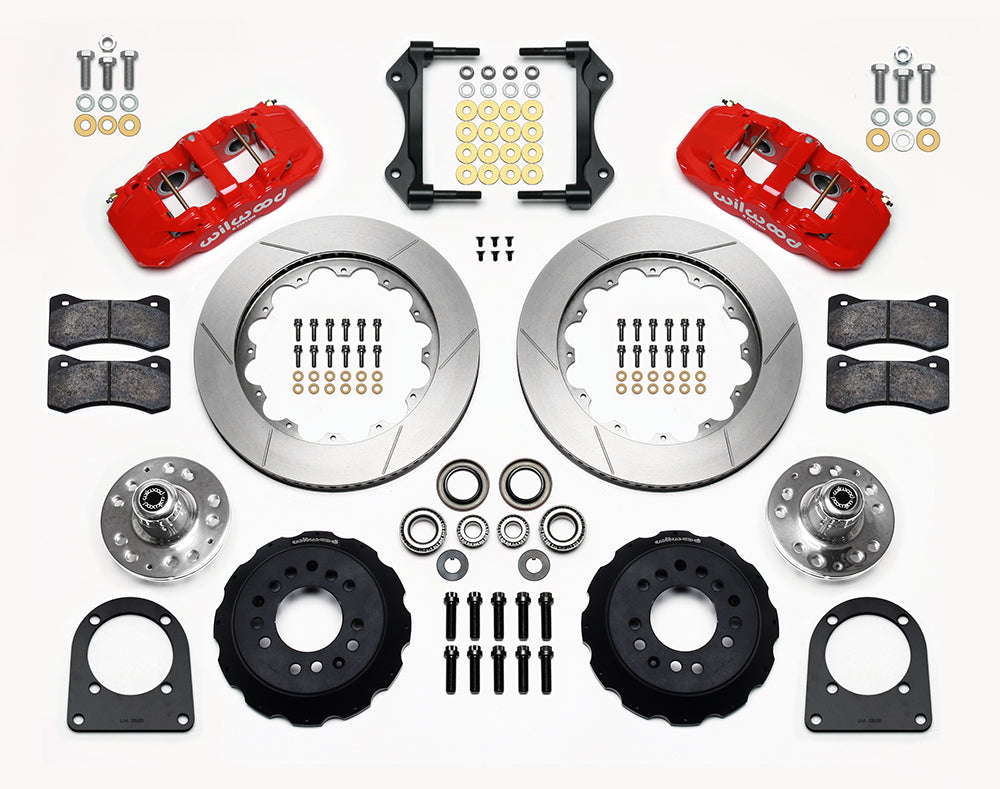

Wilwood TCI IFS front parts layout with red AERO6 calipers, 14-inch slotted rotor rings, separate hubs, bearings, pads and mounting brackets

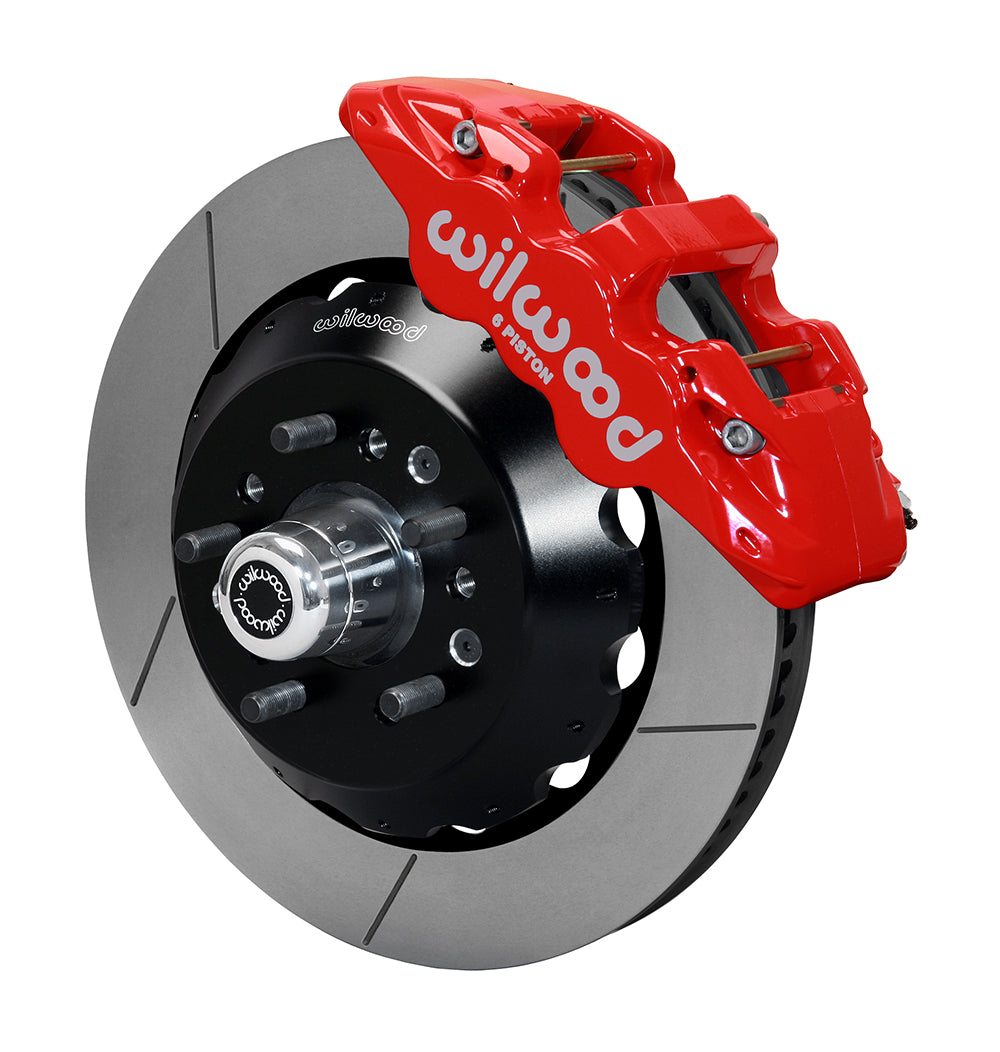

Wilwood TCI IFS front single-side assembly with a red Aero6 caliper beside the slotted rotor ring and protruding wheel studs
Wilwood TCI IFS front parts layout with red AERO6 calipers, 14-inch slotted rotor rings, separate hubs, bearings, pads and mounting brackets

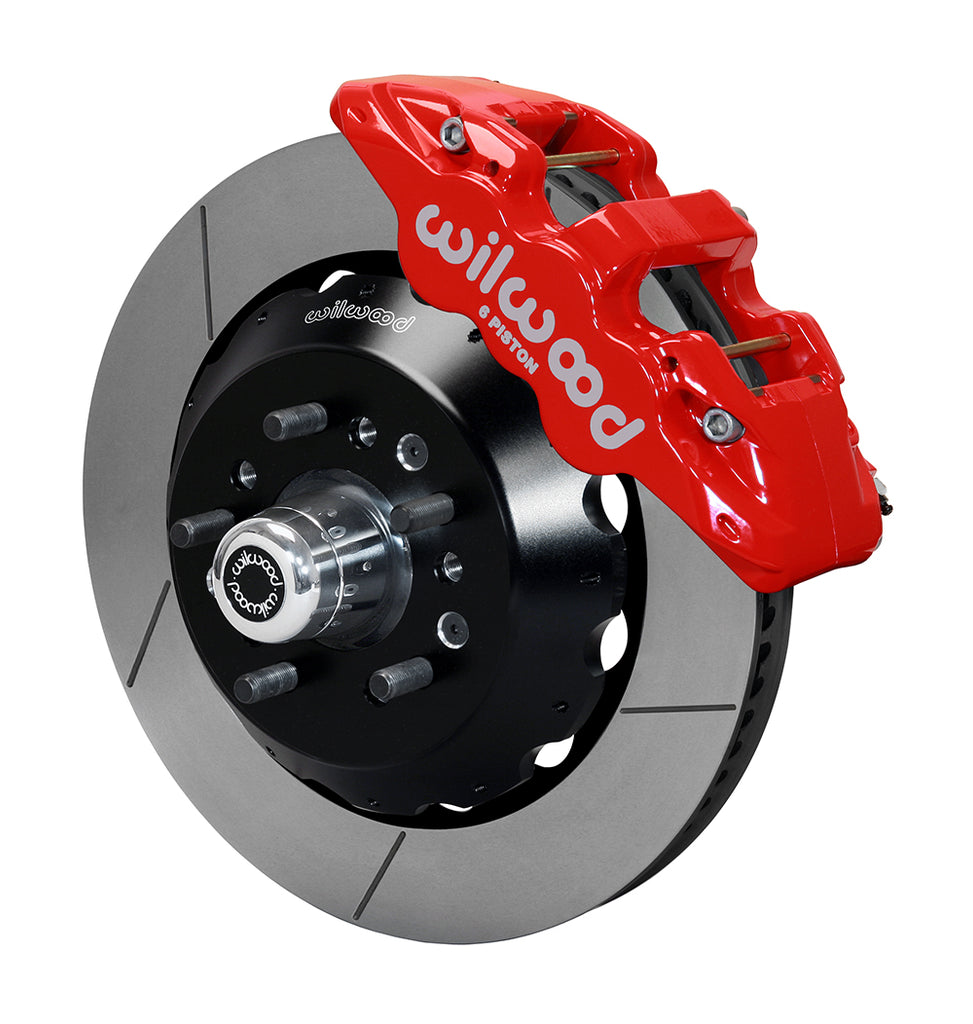

Wilwood TCI IFS front single-side assembly with a red Aero6 caliper beside the slotted rotor ring and protruding wheel studs

Wilwood Front Red AERO6 Hub Conversion for TCI IFS, Slotted 14-Inch GT Rotors

SKU: 140-13226-R

$2,783.98 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

GT-slotted 14-inch rotors and red AERO6 calipers identify this TCI front conversion. The kit includes hubs and aluminum hats, with BP-20 pads specified on the current product page for this configuration. Wilwood Engineering is a Camarillo, California manufacturer founded by Bill Wood in 1977. Disc brake design and manufacturing extend across calipers, brake rotors, master cylinders, valves, fittings and brake lines. Parts for street-performance, specialized applications and motorsport must be selected to meet the requirements of the complete brake system.

Technical Details

  • Manufacturer part number: 140-13226-R
  • Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Wheel-stud thread: 1/2-20 in
  • Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
  • Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-20
  • Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
  • Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
  • Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.25 in; 31.75 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; GT Slotted
  • Caliper assembly: Aero6; 6 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat

Fitment & Compatibility

Select this package by the TCI IFS spindle and verify its bearing spacer, nut and lock. DS1007 provides the assembly and wheel template; check both spoke clearance and wheel-pad seating.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Manufacturer References

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
