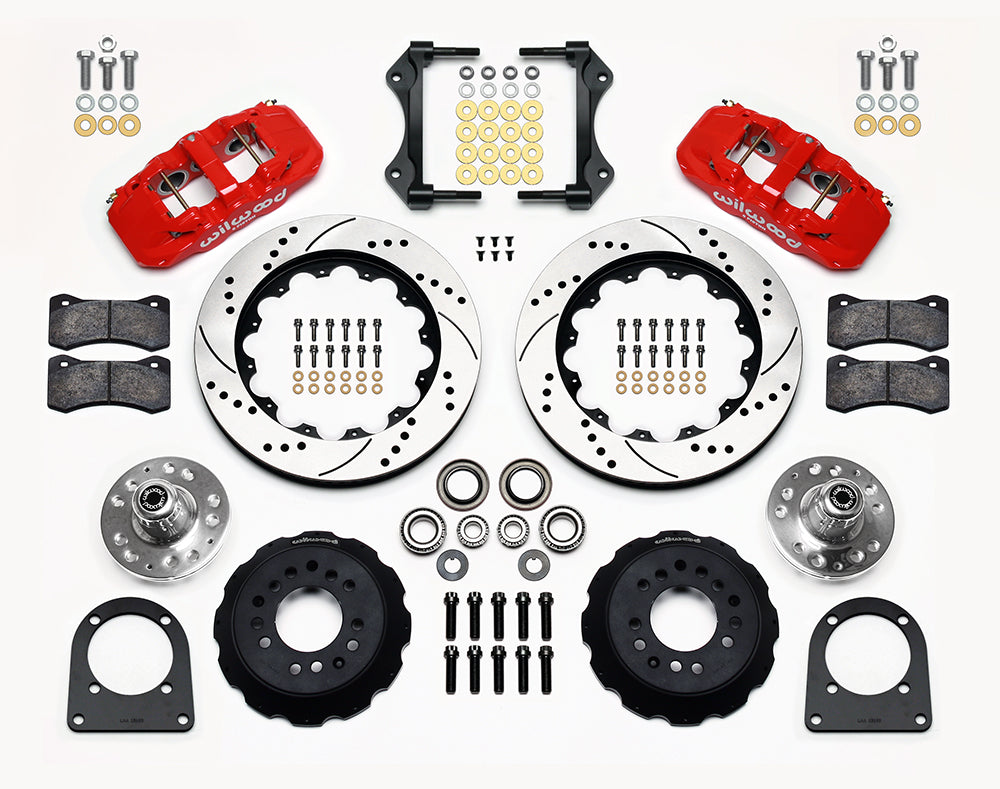

Wilwood TCI IFS front parts layout with red AERO6 calipers, 14-inch drilled-and-slotted rotors, separate hubs, bearings, pads and mounting brackets

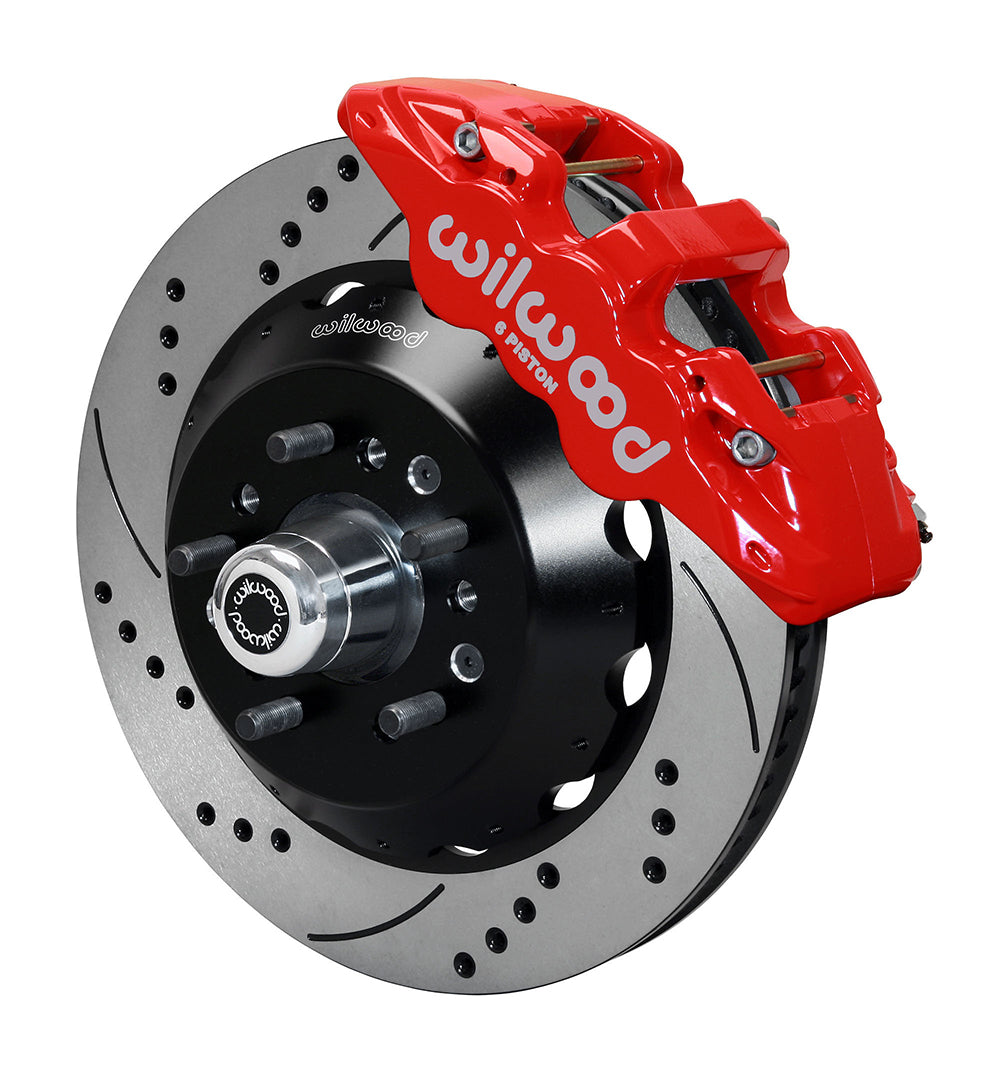

Wilwood TCI IFS front single-side assembly with a red Aero6 caliper beside the drilled-and-slotted rotor and protruding wheel studs
Wilwood TCI IFS front parts layout with red AERO6 calipers, 14-inch drilled-and-slotted rotors, separate hubs, bearings, pads and mounting brackets
Wilwood TCI IFS front single-side assembly with a red Aero6 caliper beside the drilled-and-slotted rotor and protruding wheel studs

Wilwood Red AERO6 Front Brake and Hub Package, TCI IFS with 14-Inch Drilled/Slotted Rotors

SKU: 140-13226-DR

$2,783.98 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red AERO6 calipers and drilled-and-slotted 14-inch rotors form this front TCI hub package. Its 1.25-inch rotor width differs from the narrow Superlite kit, so use the matching bracket and wheel-clearance reference. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.

Technical Details

  • Manufacturer part number: 140-13226-DR
  • Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
  • Caliper assembly: Aero6; 6 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Wheel-stud thread: 1/2-20 in
  • Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
  • Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
  • Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
  • Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.25 in; 31.75 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted

Fitment & Compatibility

Confirm the TCI spacer and spindle-retention hardware listed in DS1007. Allow for the published outward wheel-position change and check the wheel's contact face before installing the separate flexlines.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Manufacturer References

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.
