Product details

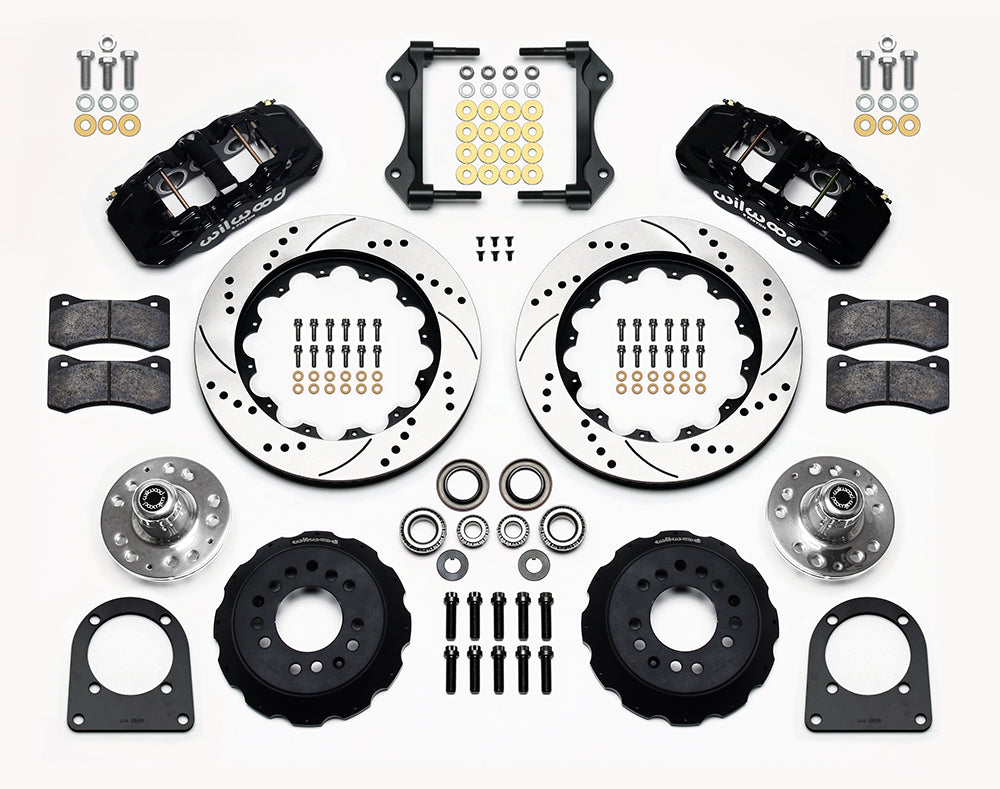

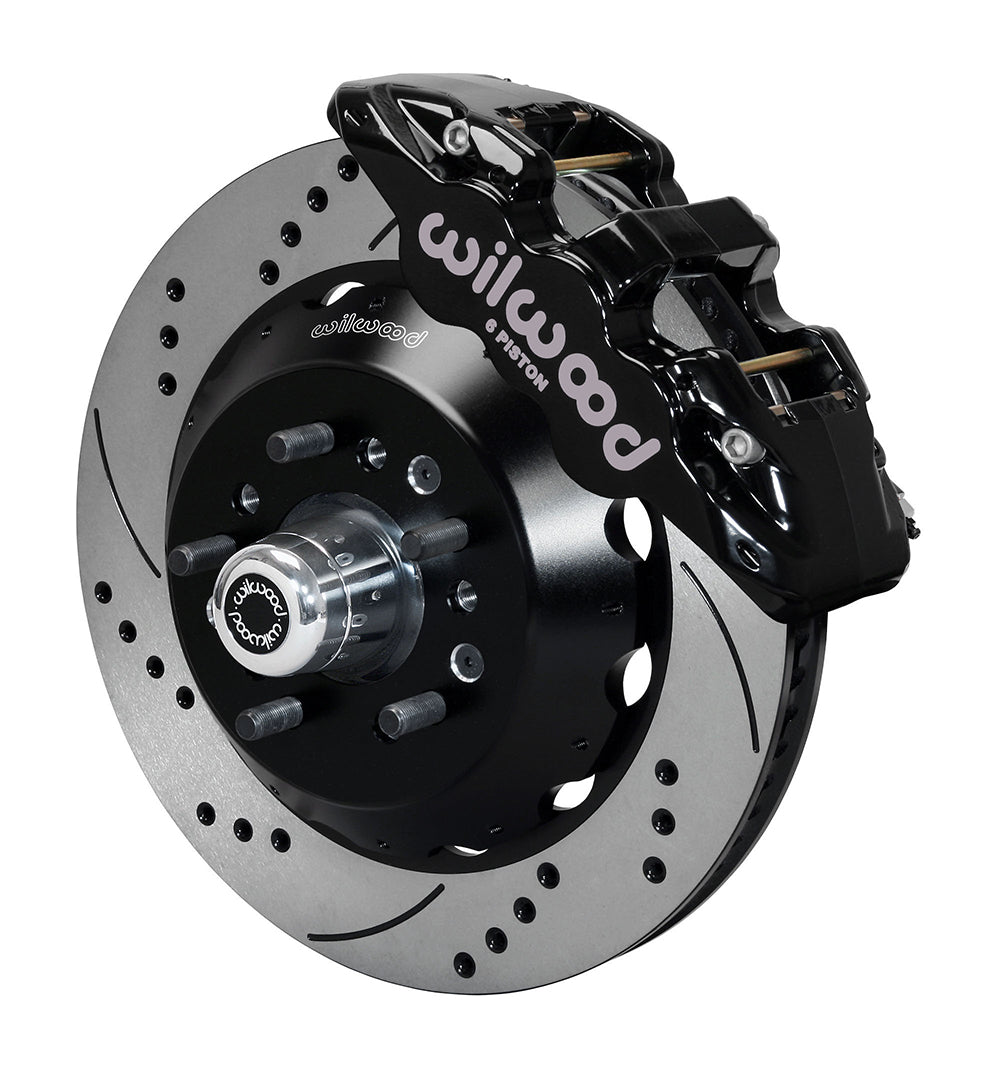

The drilled-and-slotted version of this TCI front conversion includes black AERO6 calipers and 1.25-inch vented rotor sections. Its pads and radial brackets are specified for the complete larger brake assembly. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.
Technical Details
- Manufacturer part number: 140-13226-D
- Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
- Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.25 in; 31.75 mm thickness
- Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted
- Caliper assembly: Aero6; 6 pistons per caliper; Forged Aluminium body; Radial mount
- Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Wheel-stud thread: 1/2-20 in
- Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
- Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
- Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
Fitment & Compatibility
Use DS1007 to identify the spindle nut, crown lock and bearing spacer retained from TCI. Check wheel-pad contact and the caliper envelope; brake hoses remain a separate selection.
Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
