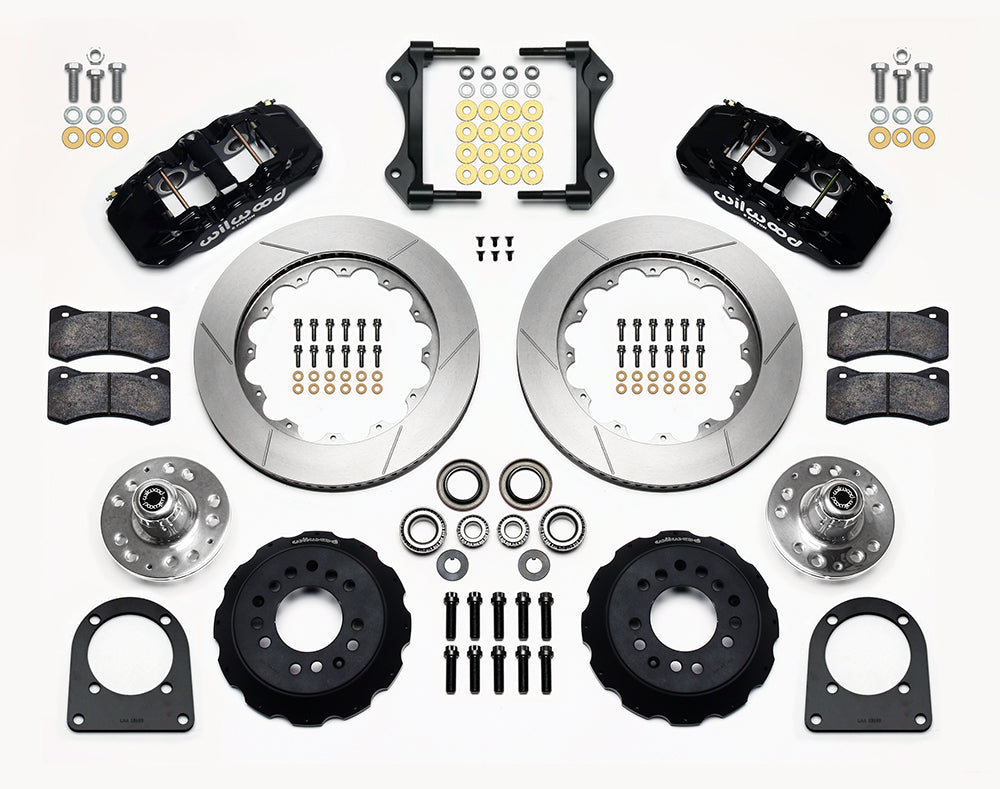

Wilwood TCI IFS front parts layout with black AERO6 calipers, 14-inch slotted rotor rings, separate hubs, bearings, pads and mounting brackets

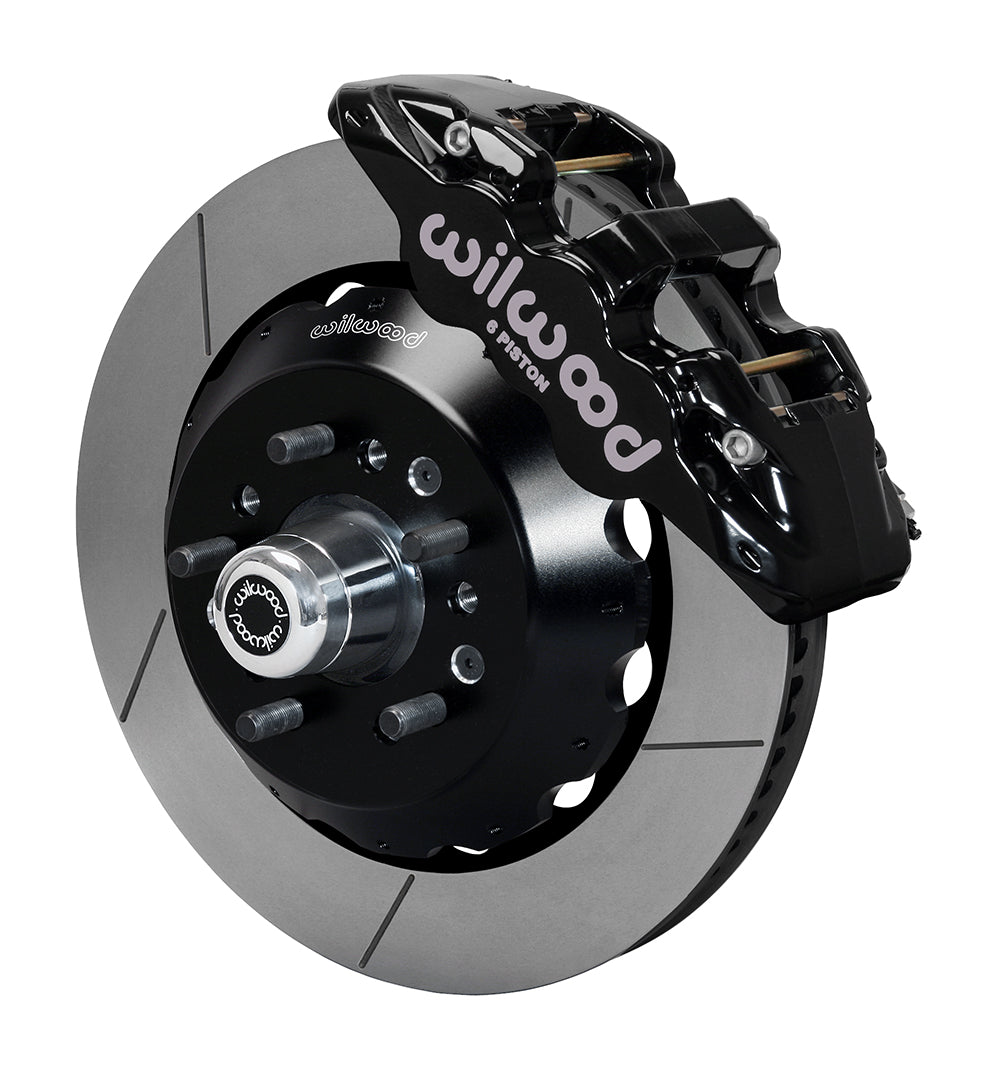

Wilwood TCI IFS front single-side assembly with a black Aero6 caliper beside the slotted rotor ring and protruding wheel studs
Wilwood TCI IFS front parts layout with black AERO6 calipers, 14-inch slotted rotor rings, separate hubs, bearings, pads and mounting brackets
Wilwood TCI IFS front single-side assembly with a black Aero6 caliper beside the slotted rotor ring and protruding wheel studs

Wilwood Front AERO6 Hub Brake Kit for TCI IFS Spindles, Black Calipers and 14-Inch GT Rotors

SKU: 140-13226

$2,783.98 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Black AERO6 calipers surround 1.25-inch-thick, 14-inch slotted rotors in this TCI front hub conversion. This is the wider rotor and AERO6 configuration, with its own pad selection and wheel envelope. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.

Technical Details

  • Manufacturer part number: 140-13226
  • Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
  • Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-20
  • Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
  • Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
  • Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.25 in; 31.75 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; GT Slotted
  • Caliper assembly: Aero6; 6 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Wheel-stud thread: 1/2-20 in
  • Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing

Fitment & Compatibility

Verify the specific TCI spindle hardware identified in DS1007, including its retained spacer. Compare the complete 18-inch wheel profile, mounting-pad support and +0.34-inch per-side hub offset.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Manufacturer References

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
