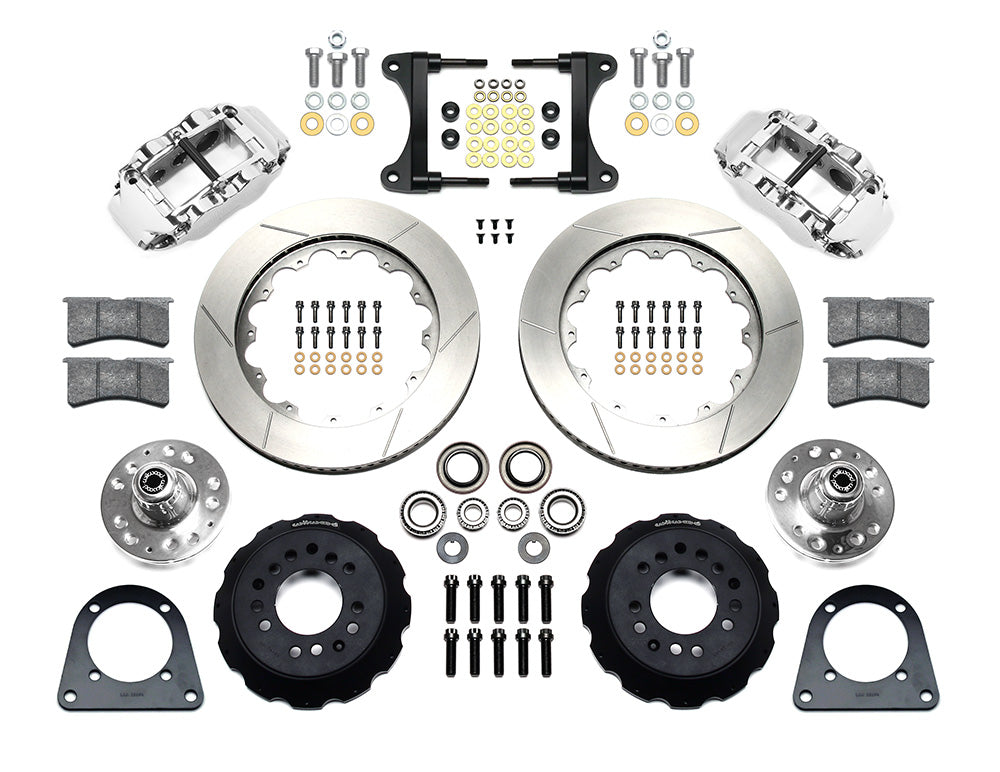

Wilwood TCI IFS front parts layout with polished Superlite 6R calipers, 14-inch slotted rotor rings, separate hubs, bearings, pads and mounting brackets

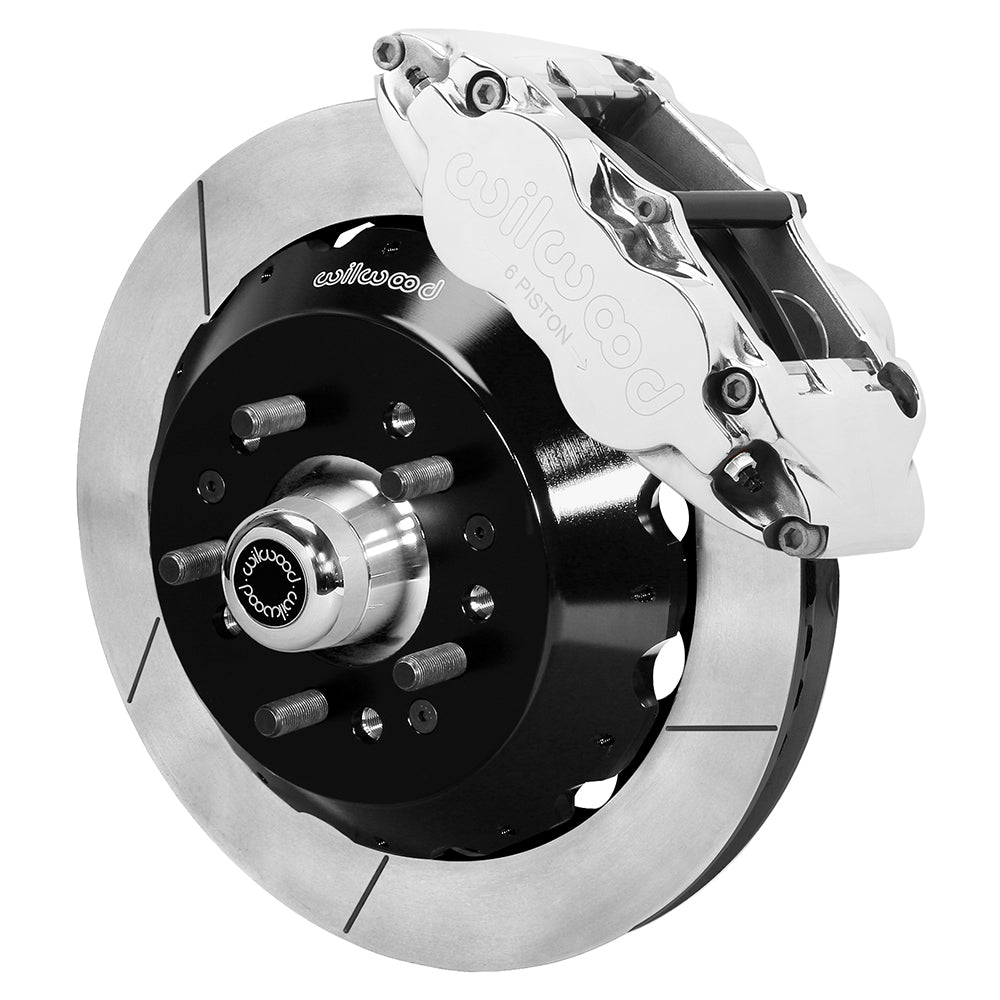

Wilwood TCI IFS front single-side assembly showing a polished Superlite 6R caliper beside a 14-inch slotted rotor ring and protruding wheel studs
Wilwood TCI IFS front parts layout with polished Superlite 6R calipers, 14-inch slotted rotor rings, separate hubs, bearings, pads and mounting brackets
Wilwood TCI IFS front single-side assembly showing a polished Superlite 6R caliper beside a 14-inch slotted rotor ring and protruding wheel studs

Wilwood Front 14-Inch GT Rotor Kit with Polished Superlite 6R Calipers, TCI IFS Hub Conversion

SKU: 140-13225-P

$2,957.66 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Polished calipers and slotted GT rotors provide this TCI front kit's finish and rotor configuration. The six-piston narrow Superlite bodies mount radially around the 14-inch assemblies. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

  • Manufacturer part number: 140-13225-P
  • Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Wheel-stud thread: 1/2-20 in
  • Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
  • Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
  • Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
  • Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; GT Slotted
  • Caliper assembly: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Polished calipers; Polish

Fitment & Compatibility

Match DS1006 to the TCI spindle, nut, crown lock and bearing spacer. Check the hub's two wheel patterns and support the wheel mounting face as specified before evaluating spoke clearance.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
