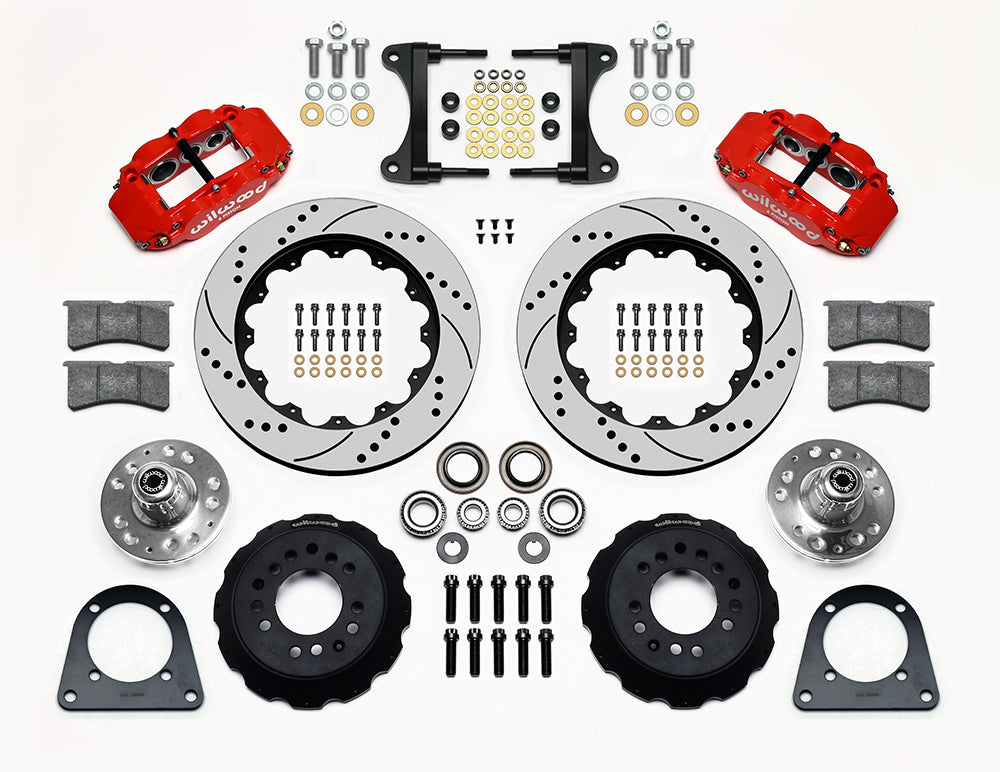

Wilwood TCI IFS front parts layout with red Superlite 6R calipers, 14-inch drilled-and-slotted rotors, separate hubs, bearings, pads and mounting brackets

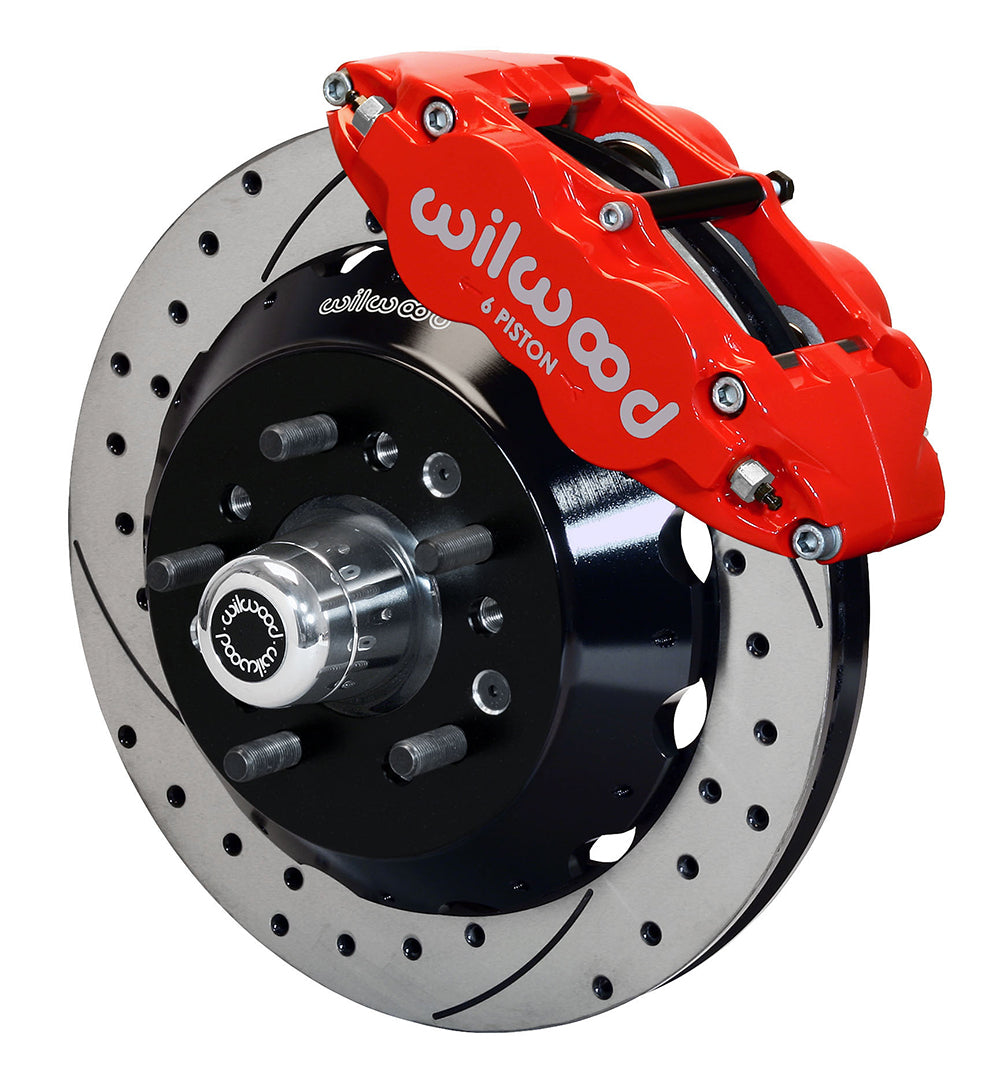

Wilwood TCI IFS front single-side assembly showing a red Superlite 6R caliper beside a 14-inch drilled-and-slotted rotor and protruding wheel studs
Wilwood TCI IFS front parts layout with red Superlite 6R calipers, 14-inch drilled-and-slotted rotors, separate hubs, bearings, pads and mounting brackets
Wilwood TCI IFS front single-side assembly showing a red Superlite 6R caliper beside a 14-inch drilled-and-slotted rotor and protruding wheel studs

Wilwood Red Front 14-Inch SRP Brake Conversion, Superlite 6R Calipers for TCI IFS Hubs

SKU: 140-13225-DR

$2,564.31 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red Superlite calipers and drilled-and-slotted rotors identify this larger TCI front hub package. The 14-inch rotor diameter, wheel pattern and radial mounting must all match the planned wheel-and-spindle assembly. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.

Technical Details

  • Manufacturer part number: 140-13225-DR
  • Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
  • Caliper assembly: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Wheel-stud thread: 1/2-20 in
  • Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
  • Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
  • Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
  • Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted

Fitment & Compatibility

Verify the specific TCI IFS spindle and its retained bearing spacer. The published +0.34-inch per-side hub offset and DS1006 clearance profile should be checked with the car's wheels and bodywork.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Manufacturer References

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
