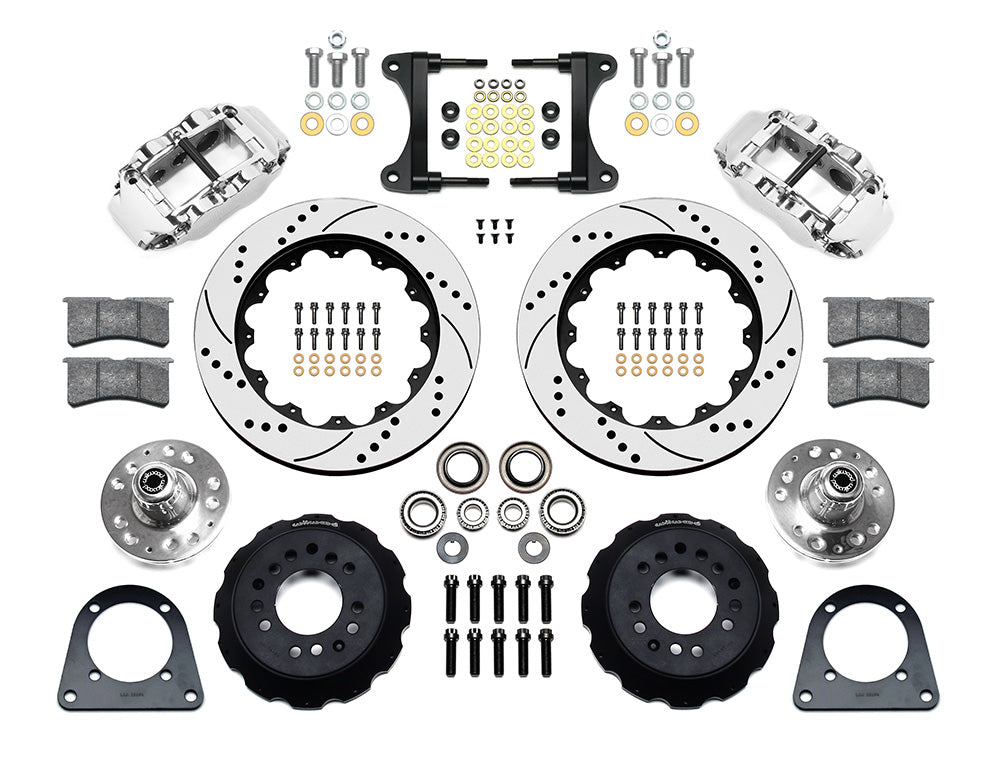

Wilwood TCI IFS front parts layout with polished Superlite 6R calipers, 14-inch drilled-and-slotted rotors, separate hubs, bearings, pads and mounting brackets

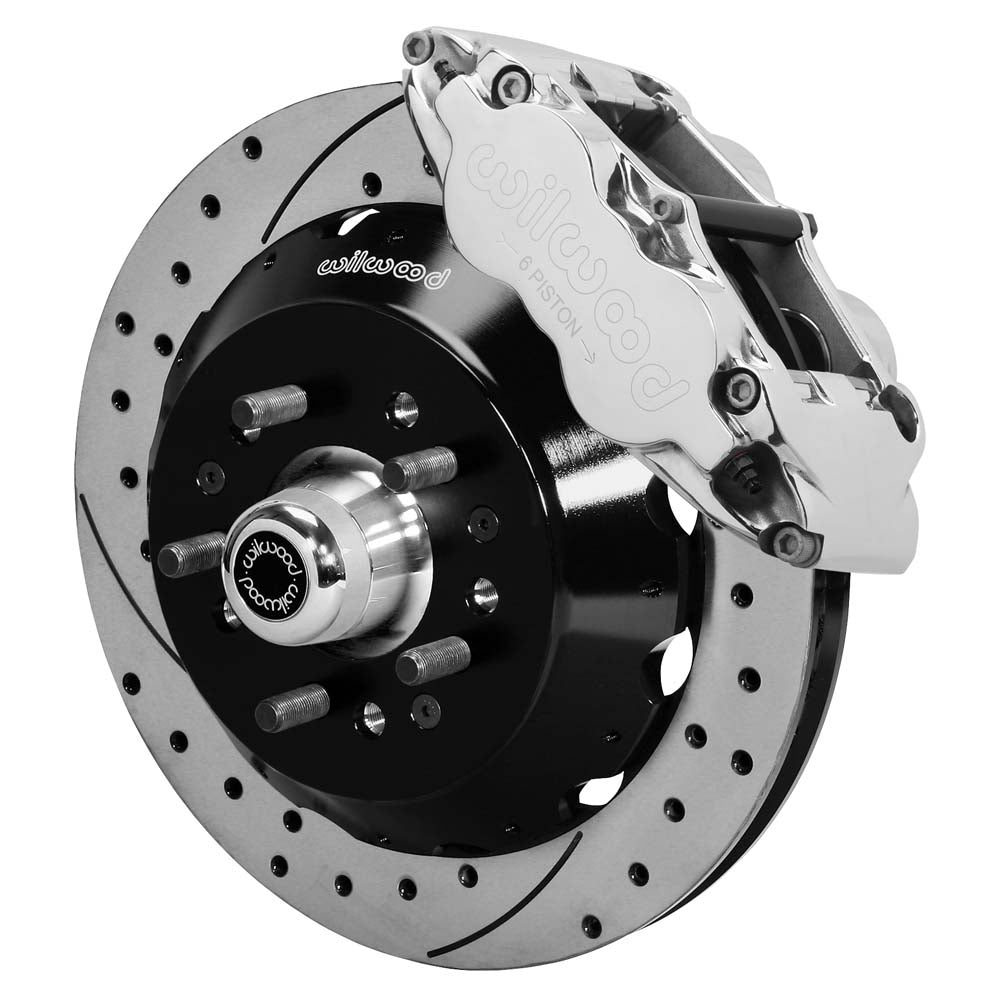

Wilwood TCI IFS front single-side assembly showing a polished Superlite 6R caliper beside a 14-inch drilled-and-slotted rotor and protruding wheel studs
Wilwood TCI IFS front parts layout with polished Superlite 6R calipers, 14-inch drilled-and-slotted rotors, separate hubs, bearings, pads and mounting brackets
Wilwood TCI IFS front single-side assembly showing a polished Superlite 6R caliper beside a 14-inch drilled-and-slotted rotor and protruding wheel studs

Wilwood Front Polished Superlite 6R Brake Kit for TCI IFS, 14-Inch Drilled/Slotted Rotors and Hubs

SKU: 140-13225-DP

$2,957.66 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This polished-caliper TCI kit pairs a 14-inch drilled-and-slotted rotor with a 1.10-inch vented section. Aluminum hubs and hats locate the assembly on the specified IFS spindle. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

  • Manufacturer part number: 140-13225-DP
  • Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
  • Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted
  • Caliper assembly: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Polished calipers; Polish
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Wheel-stud thread: 1/2-20 in
  • Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
  • Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
  • Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly

Fitment & Compatibility

Use the TCI-supplied spacer, spindle nut and lock shown by DS1006. Verify both the wheel's supported contact face and its radial and spoke clearance before choosing the conversion.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Manufacturer References

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.
