Product details

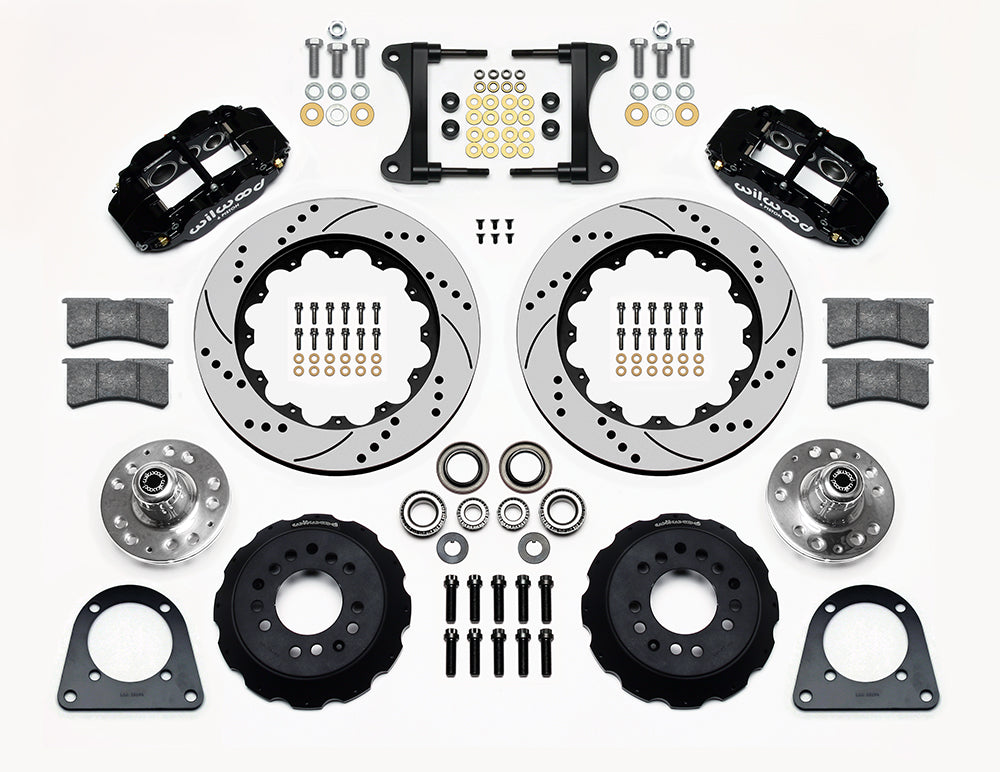

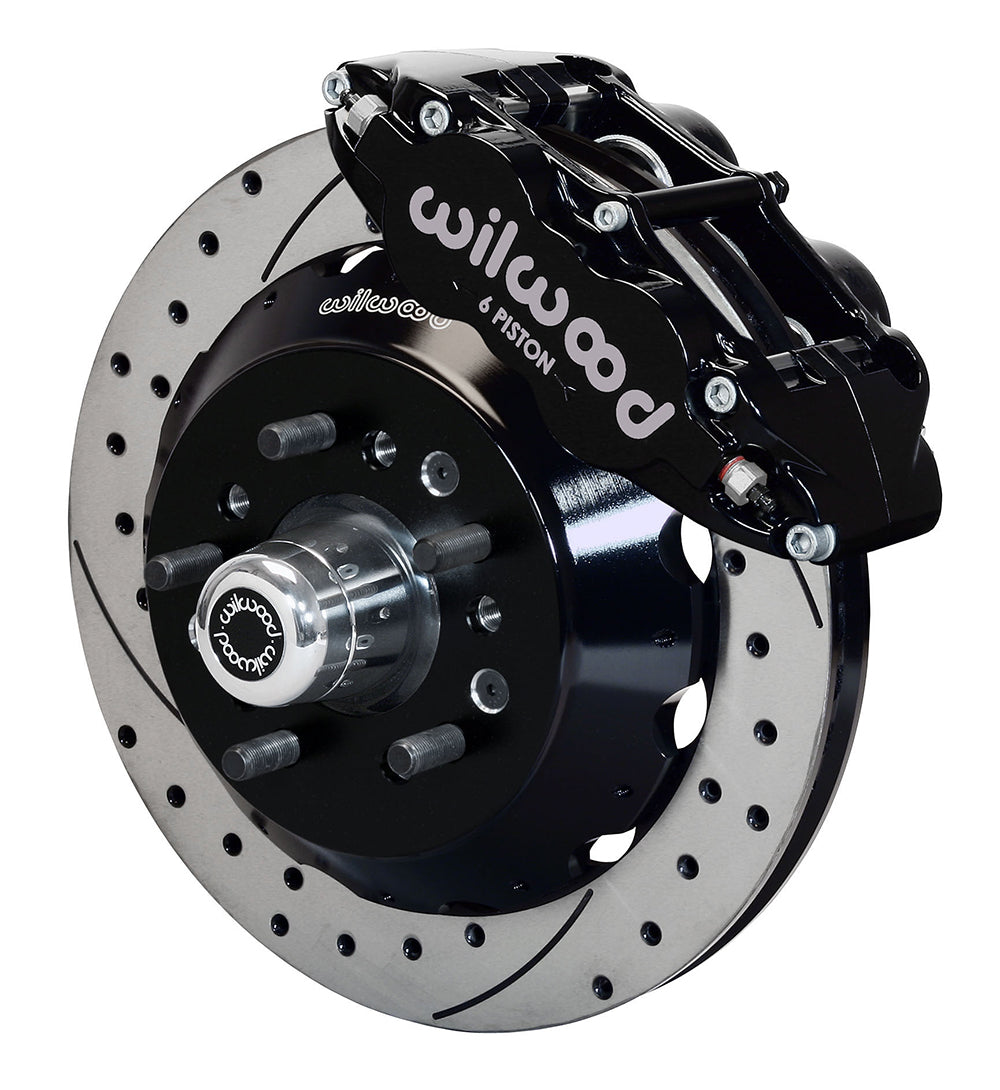

Black six-piston calipers operate over drilled-and-slotted 14-inch rotors in this TCI front assembly. The hub and hat arrangement accepts the documented wheel patterns, with a separate brake hose requirement. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.
Technical Details
- Manufacturer part number: 140-13225-D
- Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
- Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
- Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
- Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness
- Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted
- Caliper assembly: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; Radial mount
- Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Wheel-stud thread: 1/2-20 in
- Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
Fitment & Compatibility
Confirm the retained TCI spacer and locking components before fitting the hub. Use DS1006 to compare the 18-inch wheel profile and mounting-pad support with the brake assembly.
Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
