Product details

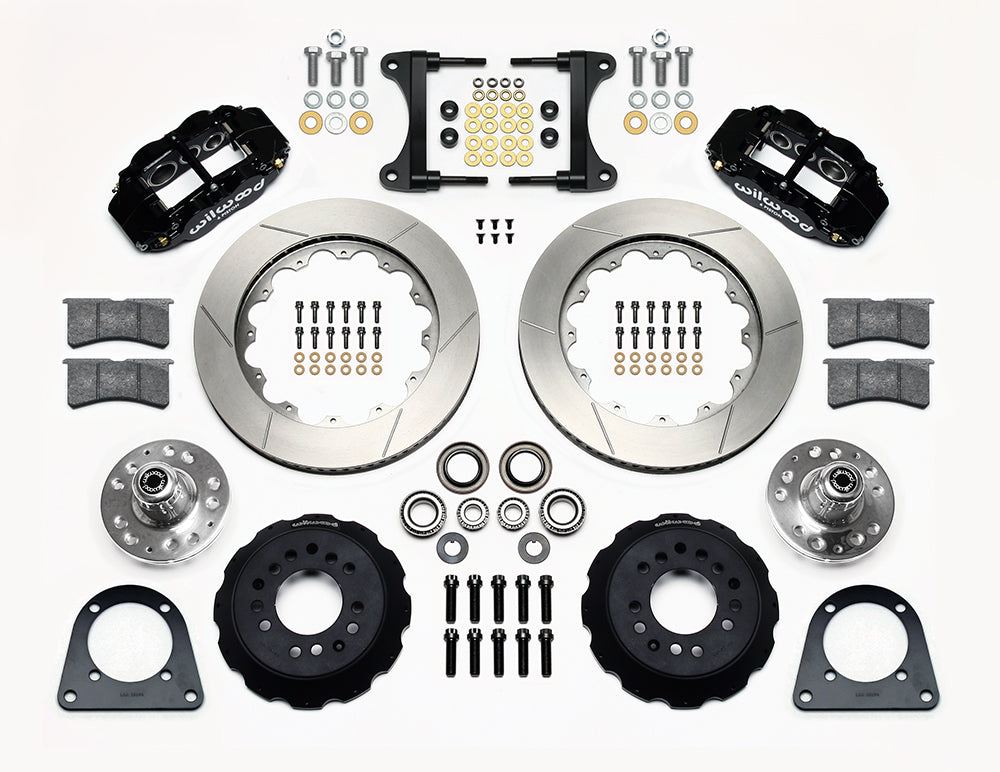

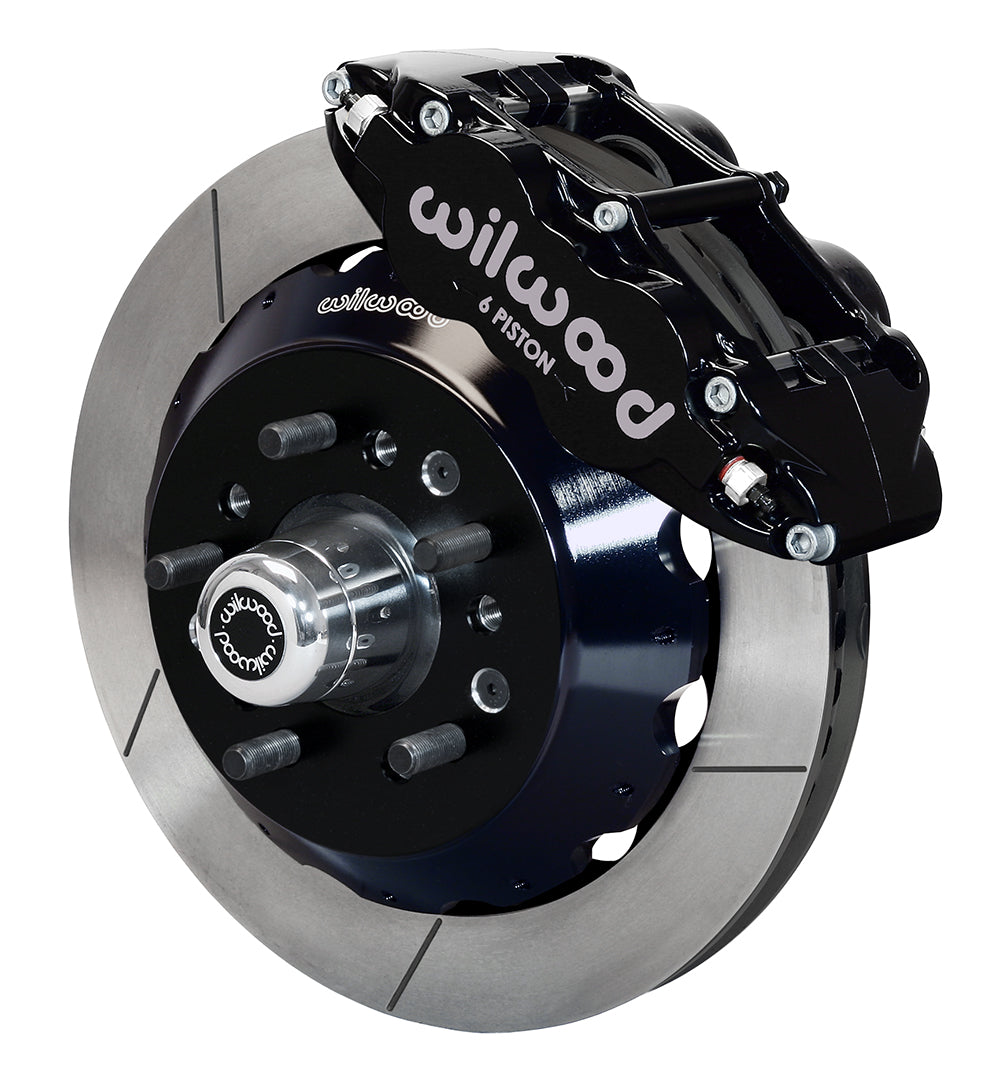

The 14-inch GT rotor package adds the documented larger rotor envelope to the TCI IFS hub conversion. Black Superlite 6R calipers and aluminum hats work with the supplied dual-pattern wheel hubs. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.
Technical Details
- Manufacturer part number: 140-13225
- Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
- Wheel-stud thread: 1/2-20 in
- Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
- Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
- Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
- Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thickness
- Rotor construction: Spec-37 Iron; Vented; GT Slotted
- Caliper assembly: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; Radial mount
- Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
Fitment & Compatibility
Match the specific TCI spindle, including its nut, crown lock and bearing spacer. Consult DS1006 for the wheel template and account for the listed +0.34-inch hub offset per side.
Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
