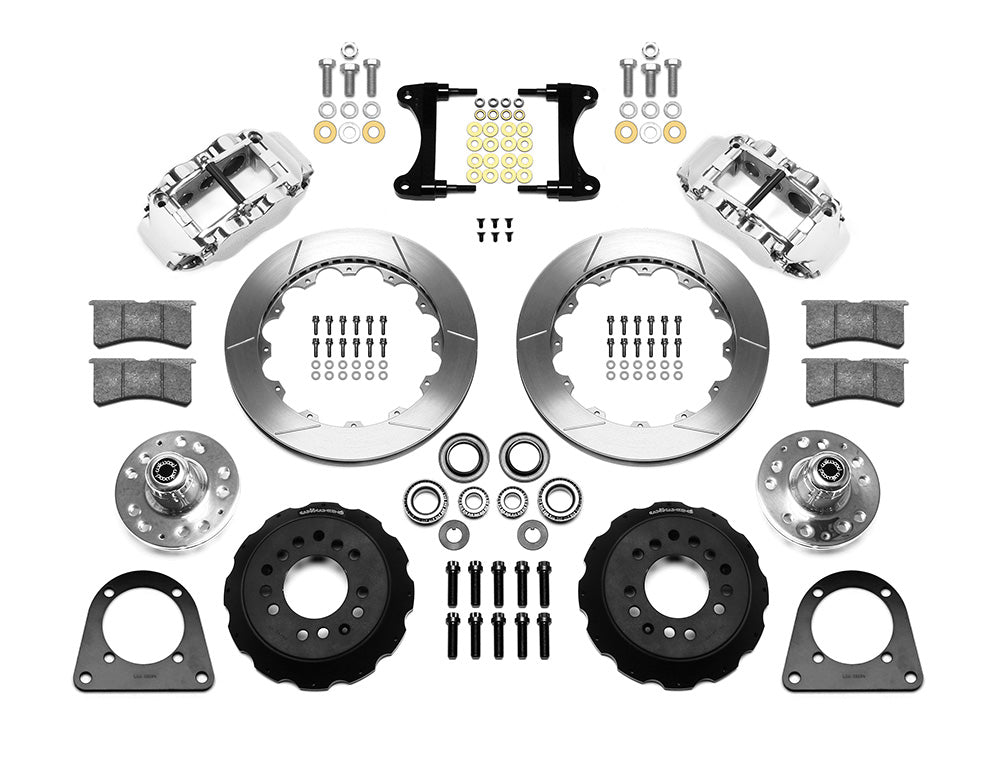

Wilwood TCI IFS front parts layout with polished Superlite 6R calipers, 12.88-inch slotted rotor rings, separate hubs, bearings, pads and mounting brackets

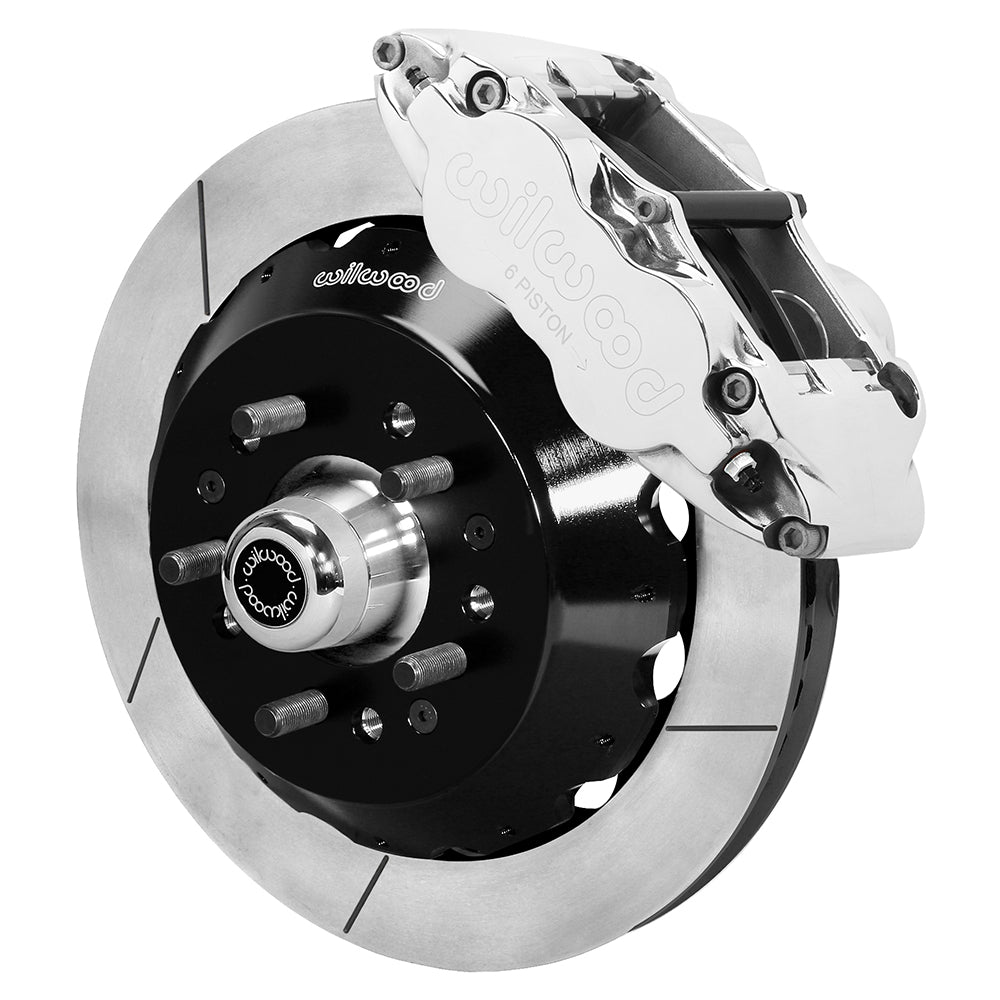

Wilwood TCI IFS front single-side assembly showing a polished Superlite 6R caliper beside a 12.88-inch slotted rotor ring and protruding wheel studs
Wilwood TCI IFS front parts layout with polished Superlite 6R calipers, 12.88-inch slotted rotor rings, separate hubs, bearings, pads and mounting brackets
Wilwood TCI IFS front single-side assembly showing a polished Superlite 6R caliper beside a 12.88-inch slotted rotor ring and protruding wheel studs

Wilwood Front TCI IFS Brake Kit with Polished Superlite 6R Calipers and 12.88-Inch GT Rotors

SKU: 140-13224-P

$2,747.76 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Slotted GT rotors operate with polished narrow Superlite 6R calipers in this TCI front package. The rotors and hats are separate components from the supplied wheel hubs, allowing their mounting interfaces to be checked independently. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.

Technical Details

  • Manufacturer part number: 140-13224-P
  • Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
  • Caliper assembly: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Polished calipers; Polish
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Wheel-stud thread: 1/2-20 in
  • Wheel diameter starting requirement: 17 in; 431.8 mm; verify the individual wheel against the installation drawing
  • Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
  • Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
  • Rotor dimensions: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; GT Slotted

Fitment & Compatibility

The required application is the specified TCI IFS spindle. Verify its spacer and nut arrangement, wheel-pad contact and +0.34-inch per-side position change using DS1005.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
