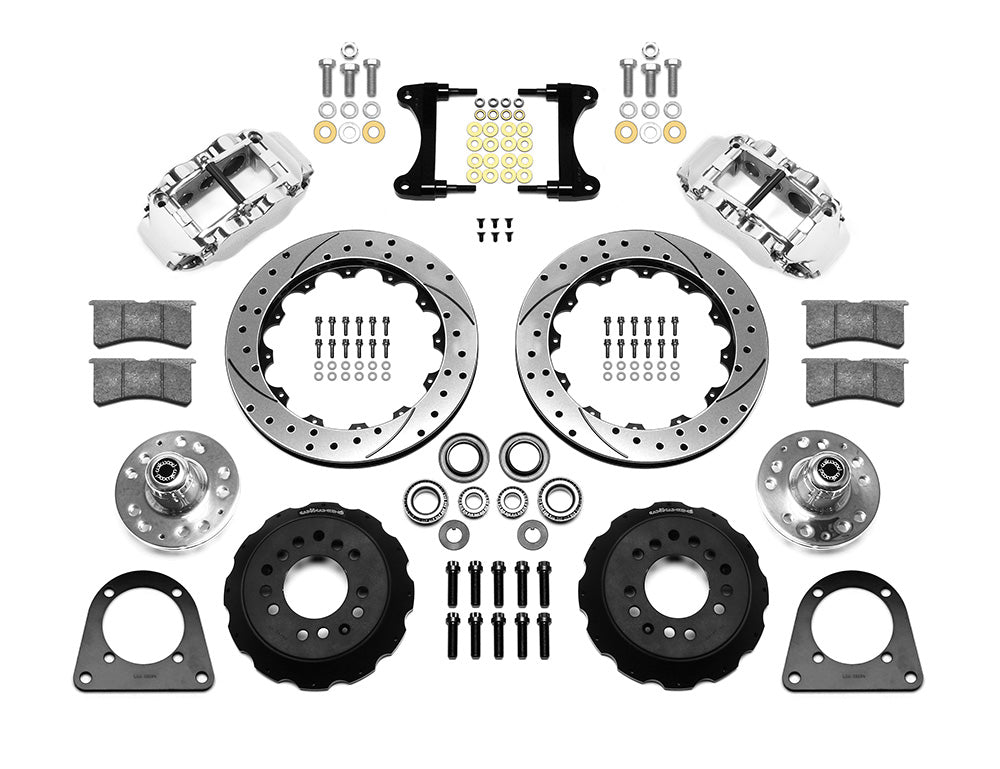

Wilwood TCI IFS front parts layout with polished Superlite 6R calipers, 12.88-inch drilled-and-slotted rotors, separate hubs, bearings, pads and mounting brackets

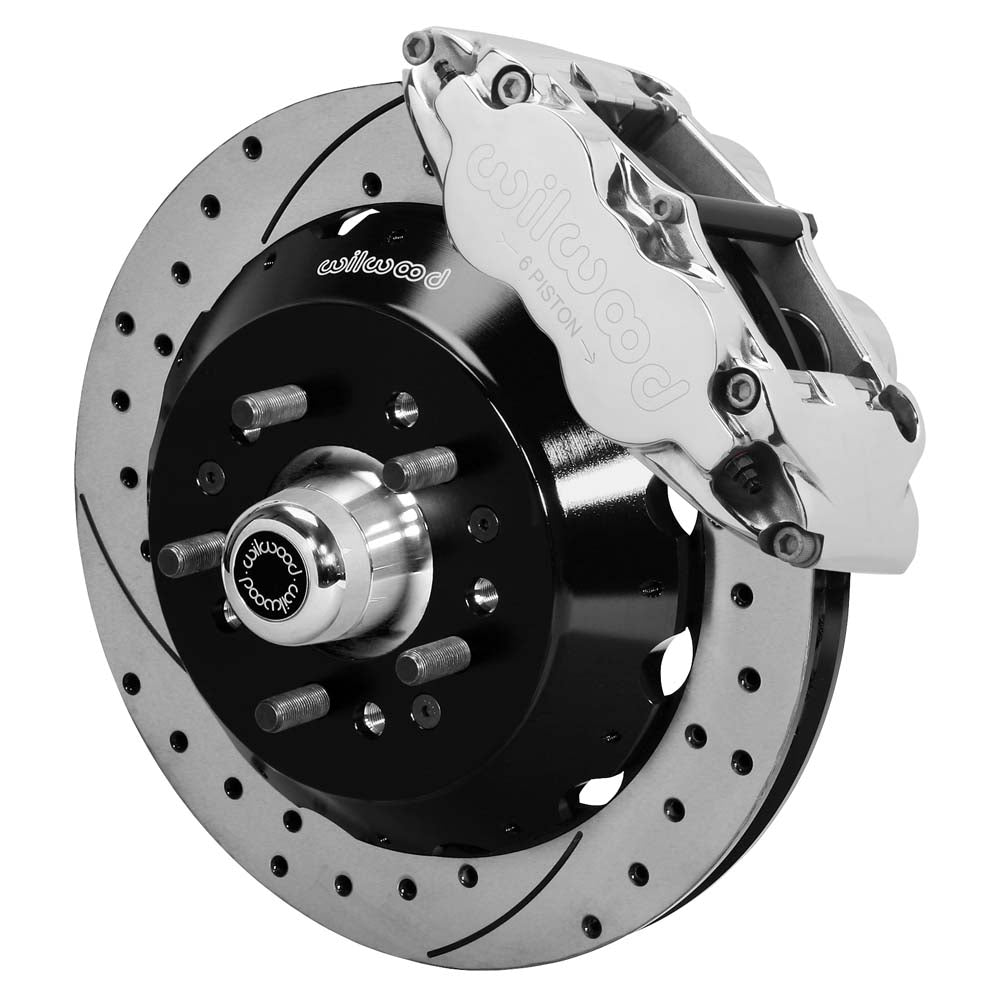

Wilwood TCI IFS front single-side assembly showing a polished Superlite 6R caliper beside a 12.88-inch drilled-and-slotted rotor and protruding wheel studs
Wilwood TCI IFS front parts layout with polished Superlite 6R calipers, 12.88-inch drilled-and-slotted rotors, separate hubs, bearings, pads and mounting brackets
Wilwood TCI IFS front single-side assembly showing a polished Superlite 6R caliper beside a 12.88-inch drilled-and-slotted rotor and protruding wheel studs

Wilwood Polished Superlite 6R Front Hub Kit, TCI IFS Spindles, 12.88-Inch SRP Rotors

SKU: 140-13224-DP

$2,747.76 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Polished six-piston calipers distinguish this drilled-and-slotted front package for TCI IFS spindles. The vented Spec-37 iron rotors are mounted through aluminum hats, with supplied hubs completing the mechanical conversion. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.

Technical Details

  • Manufacturer part number: 140-13224-DP
  • Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
  • Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
  • Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
  • Specified pad compound: BP-10
  • Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
  • Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
  • Rotor dimensions: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness
  • Rotor construction: Spec-37 Iron; Vented; SRP Drilled & Slotted
  • Caliper assembly: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; Radial mount
  • Piston and finish specification: Stainless pistons; Polished calipers; Polish
  • Hydraulic inlet: 1/8-27 NPT
  • Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Wheel-stud thread: 1/2-20 in
  • Wheel diameter starting requirement: 17 in; 431.8 mm; verify the individual wheel against the installation drawing

Fitment & Compatibility

Identify the TCI spindle and its retained spacer and locking hardware before assembly. Measure wheel-to-caliper clearance and check mounting-pad support against DS1005 rather than relying only on rim diameter.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Manufacturer References

Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
