Product details

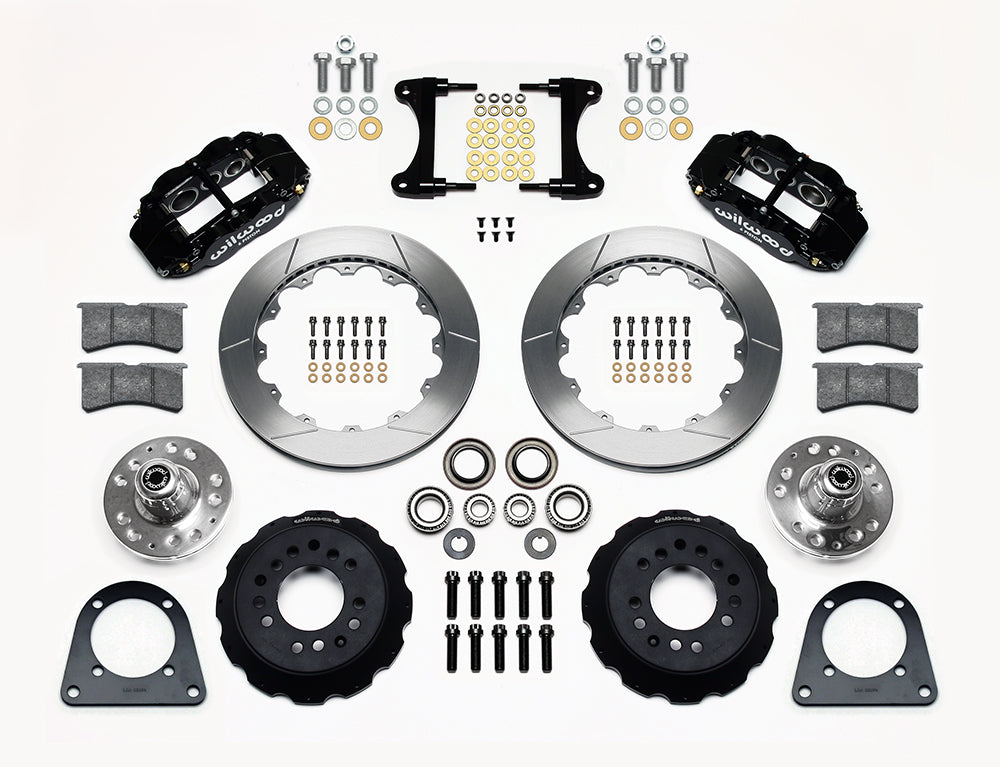

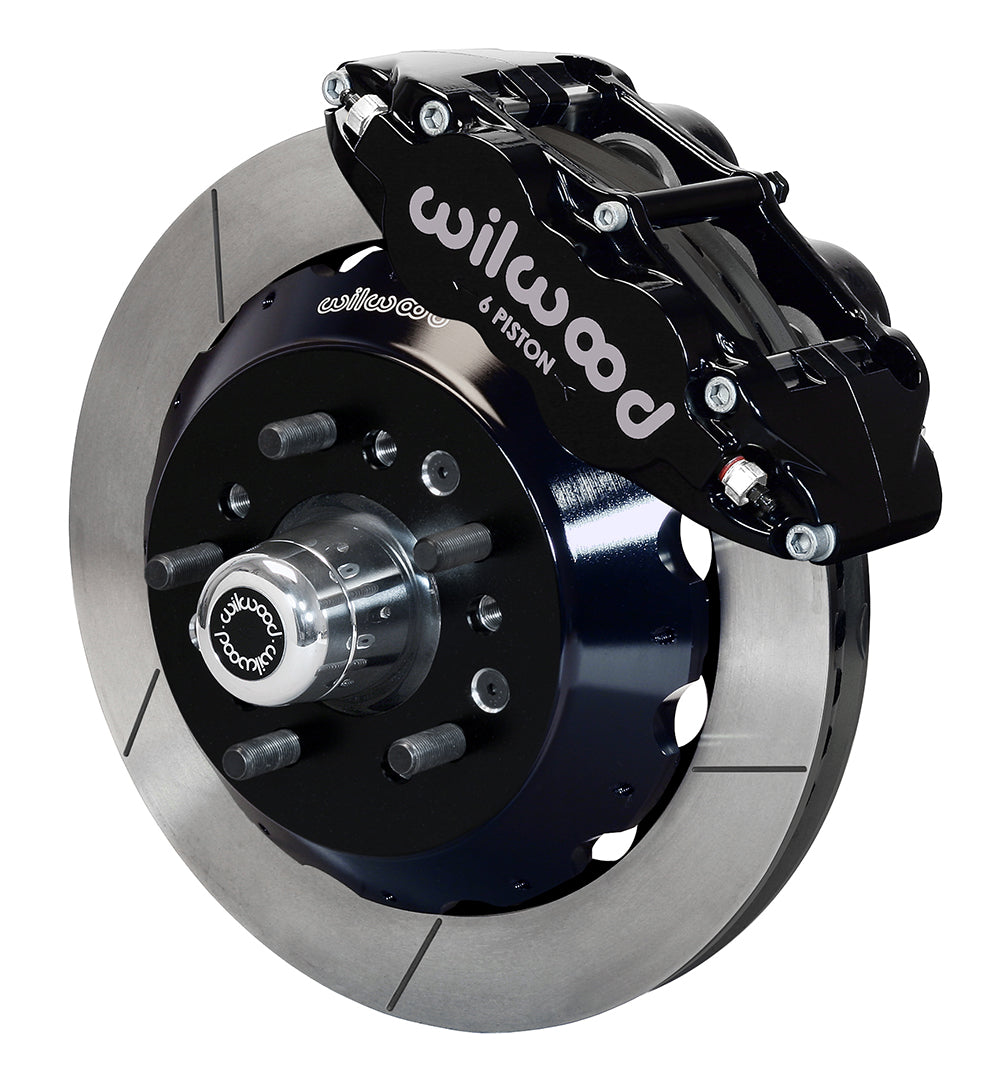

This TCI IFS front conversion combines black narrow Superlite 6R calipers with 12.88-inch slotted rotors and aluminum hubs. The installation is based on the specified TCI spindle, not an unrestricted original Pinto or Mustang II application. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 140-13224
- Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Wheel-stud thread: 1/2-20 in
- Wheel diameter starting requirement: 17 in; 431.8 mm; verify the individual wheel against the installation drawing
- Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Separate rotor-hat specification: Aluminum; Black E-Coat; offset 1.620 inch; part 170-10489
- Published wheel-position / hub offset: +.34 inch per side; verify against the documented spindle assembly
- Rotor dimensions: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thickness
- Rotor construction: Spec-37 Iron; Vented; GT Slotted
- Caliper assembly: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; Radial mount
- Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
Fitment & Compatibility
Retain the TCI-supplied spindle nut, crown-nut lock and bearing spacer identified in DS1005. Check the published +0.34-inch wheel-position change per side and the actual 17-inch-or-larger wheel profile.
Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
