Wilwood Rear Plain-Rotor Parking Brake Kit, Red Dust-Boot Calipers for Big Ford New Style Axles with 2.50-Inch Offset

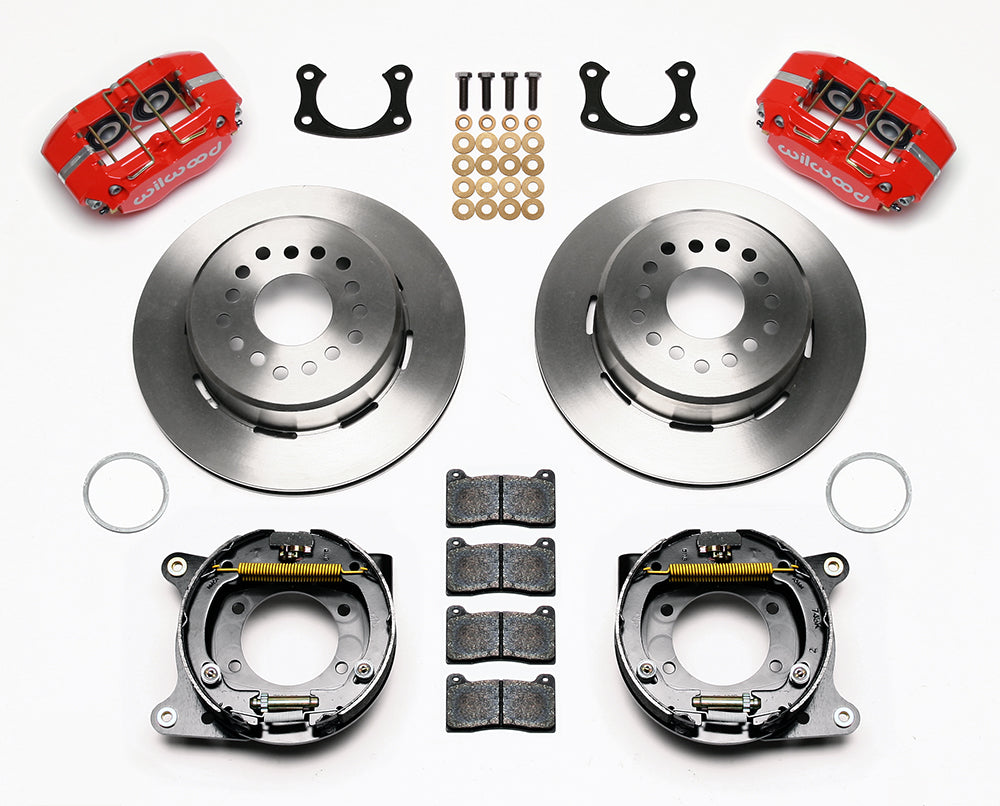

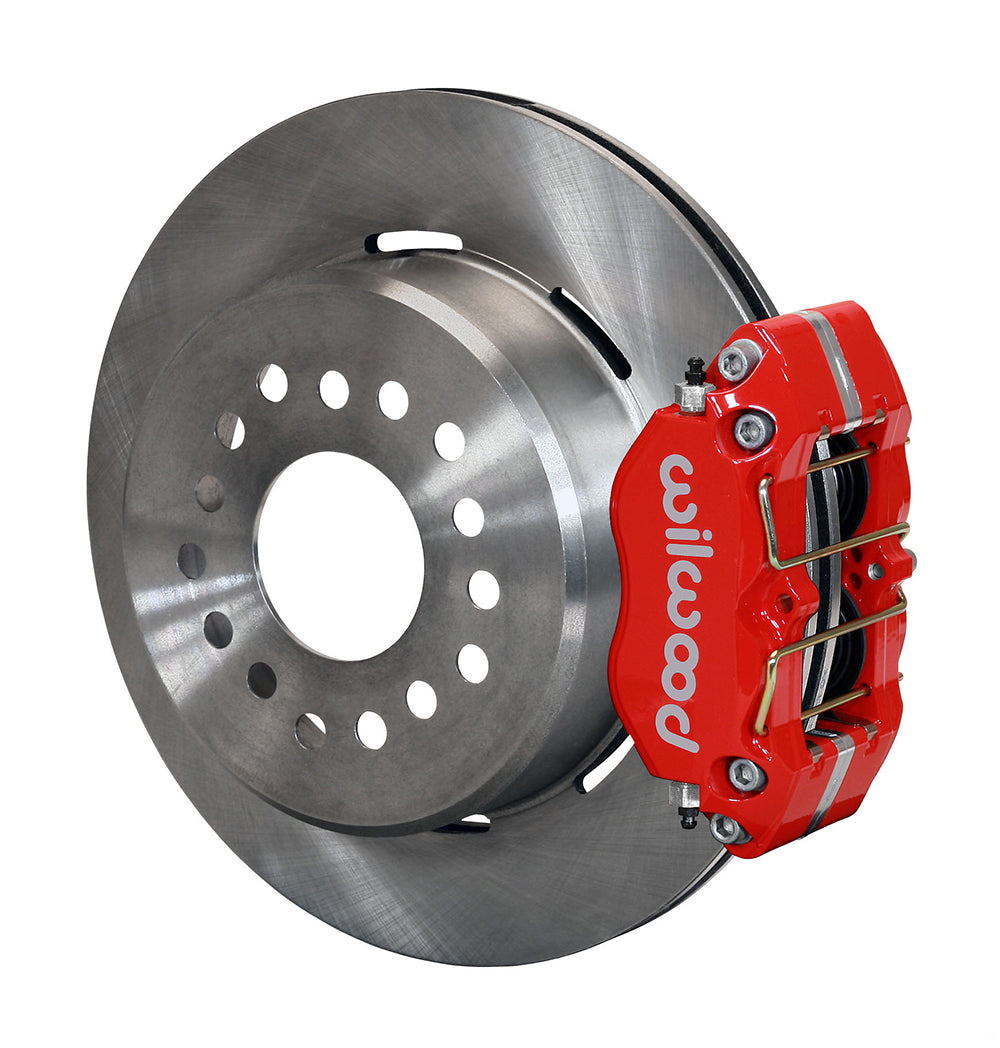

The plain-rotor option for this rear conversion includes red Dynapro dust-boot calipers and internal parking-brake hardware. The Big Ford New Style flange and 2.50-inch offset identify the correct axle-end assembly. Wilwood Engineering is a Camarillo, California manufacturer founded by Bill Wood in 1977. Disc brake design and manufacturing extend across calipers, brake rotors, master cylinders, valves, fittings and brake lines. Parts for street-performance, specialized applications and motorsport must be selected to meet the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-13207-R
• Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Red calipers; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Stud-hole / clearance provision: 0.52 in; 13.21 mm; diameter provision, not a thread designation
• Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
• Rear axle-end interface: Big Ford New Style; axle/flange offset 2.50 in; 63.5 mm
• Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; Plain Face

Fitment & Compatibility

Check the actual axle assembly's actual axle pattern, rotor-centering register and wheel engagement. The brake kit does not supply the vehicle's parking-cable adaptation or hydraulic feed hoses. The application table includes a 1990 Lincoln Town Car row, but Wilwood identifies this kit by axle flange and offset. Stock Town Car axle compatibility is not established; confirm the actual or custom axle measurements before purchase.

Measure the axle flange and register before mounting the brake: the flange must be no larger than 6.61 inches, with a 0.050-inch chamfer at 45 degrees. Use the instructions for the 2.80-inch register and its centering adapters as applicable, alongside the required offset and housing pattern.

Inspect shock-to-brake clearance as well as the axle dimensions; the installation instructions note that some shock arrangements may need modification or relocation.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1003
• Axle measurement worksheet

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.

Review the complete application table below with the year, submodel and installation qualifications above.
