Product details

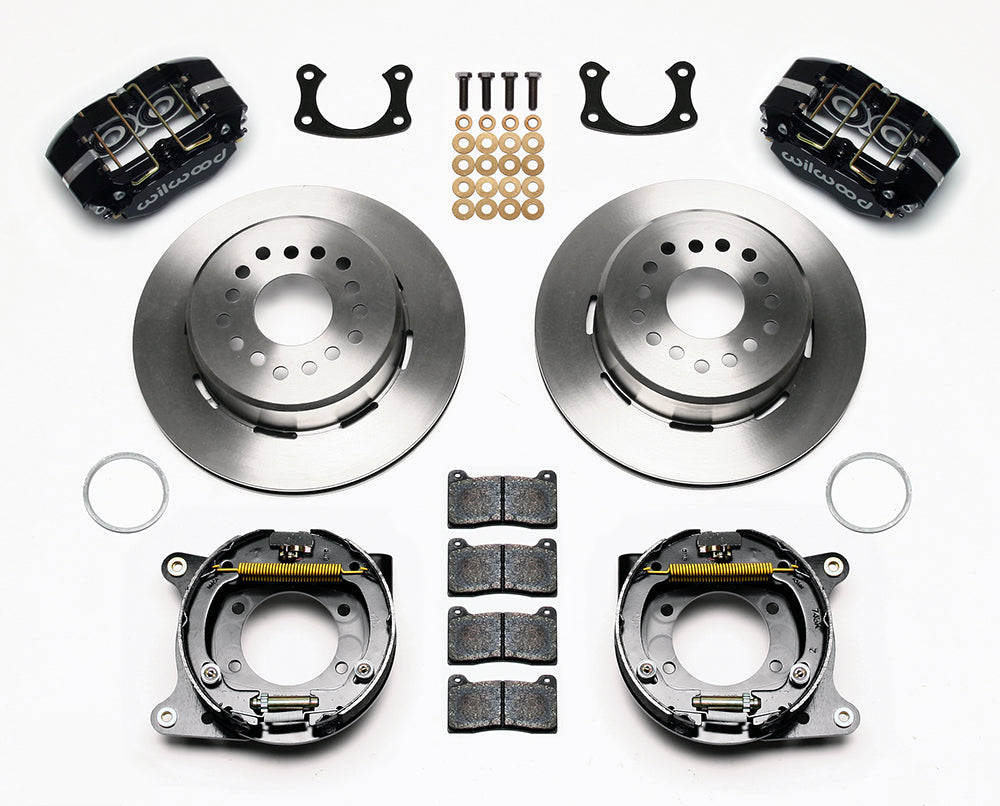

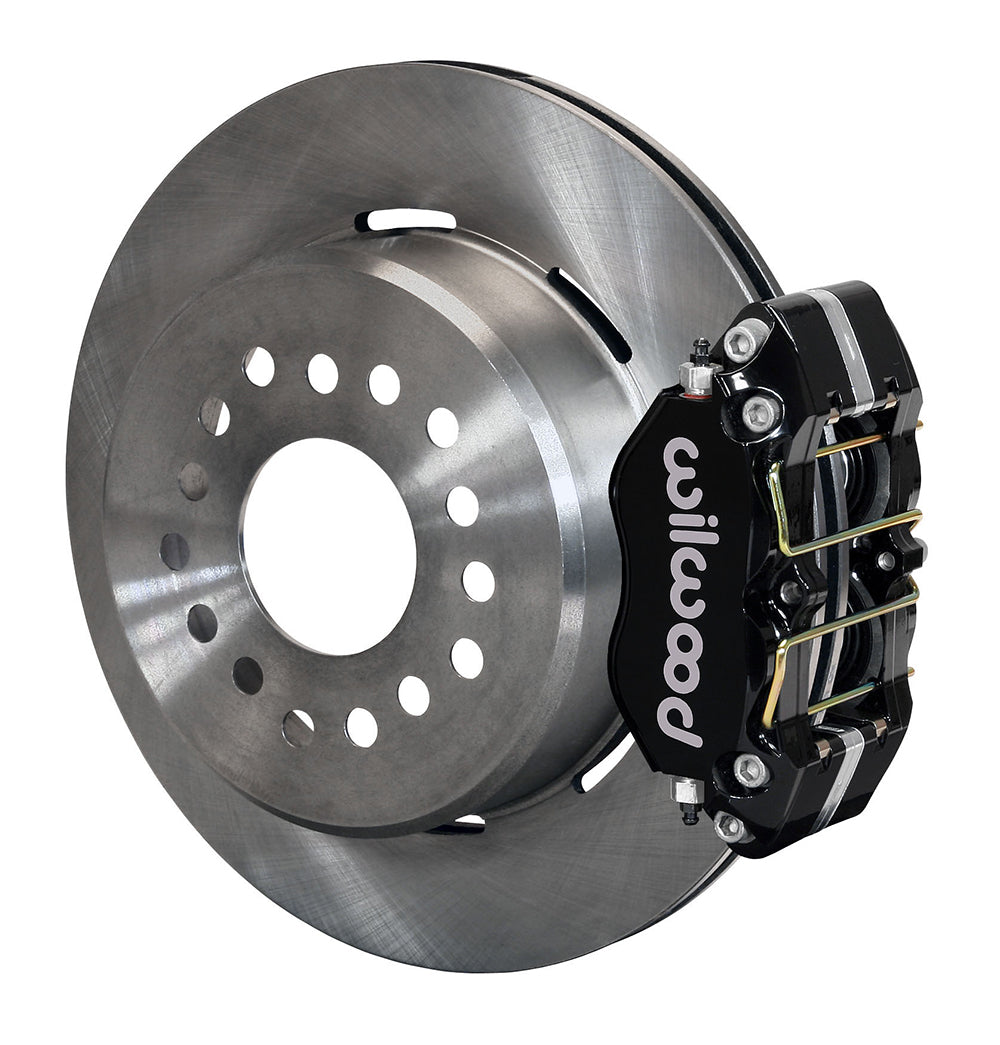

This rear kit retains the Big Ford New Style flange arrangement while using Dynapro dust-boot calipers. Plain 12.19-inch rotors house the mechanical parking brake, and the supplied brackets position it at a 2.50-inch axle offset. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.
Technical Details
- Manufacturer part number: 140-13207
- Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
- Stud-hole / clearance provision: 0.52 in; 13.21 mm; diameter provision, not a thread designation
- Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
- Rear axle-end interface: Big Ford New Style; axle/flange offset 2.50 in; 63.5 mm
- Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
- Rotor construction: Iron; Vented; Plain Face
- Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
- Piston and finish specification: Aluminum pistons; Black calipers; Black Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
Fitment & Compatibility
Use the actual axle-end pattern to confirm the 1990 Lincoln Town Car application. Compare offset and register dimensions, then check the separate hose and parking-cable requirements. The application table includes a 1990 Lincoln Town Car row, but Wilwood identifies this kit by axle flange and offset. Stock Town Car axle compatibility is not established; confirm the actual or custom axle measurements before purchase.
Measure the axle flange and register before mounting the brake: the flange must be no larger than 6.61 inches, with a 0.050-inch chamfer at 45 degrees. Use the instructions for the 2.80-inch register and its centering adapters as applicable, alongside the required offset and housing pattern.
Inspect shock-to-brake clearance as well as the axle dimensions; the installation instructions note that some shock arrangements may need modification or relocation.
Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Manufacturer References
- Wilwood exact kit specifications
- Wilwood installation instructions DS1003
- Axle measurement worksheet
For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
Review the complete application table below with the year, submodel and installation qualifications above.
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2 |
