Wilwood Black Rear SRP Conversion with Dust-Boot Calipers, Big Ford Axle Ends with 2.36-Inch Offset

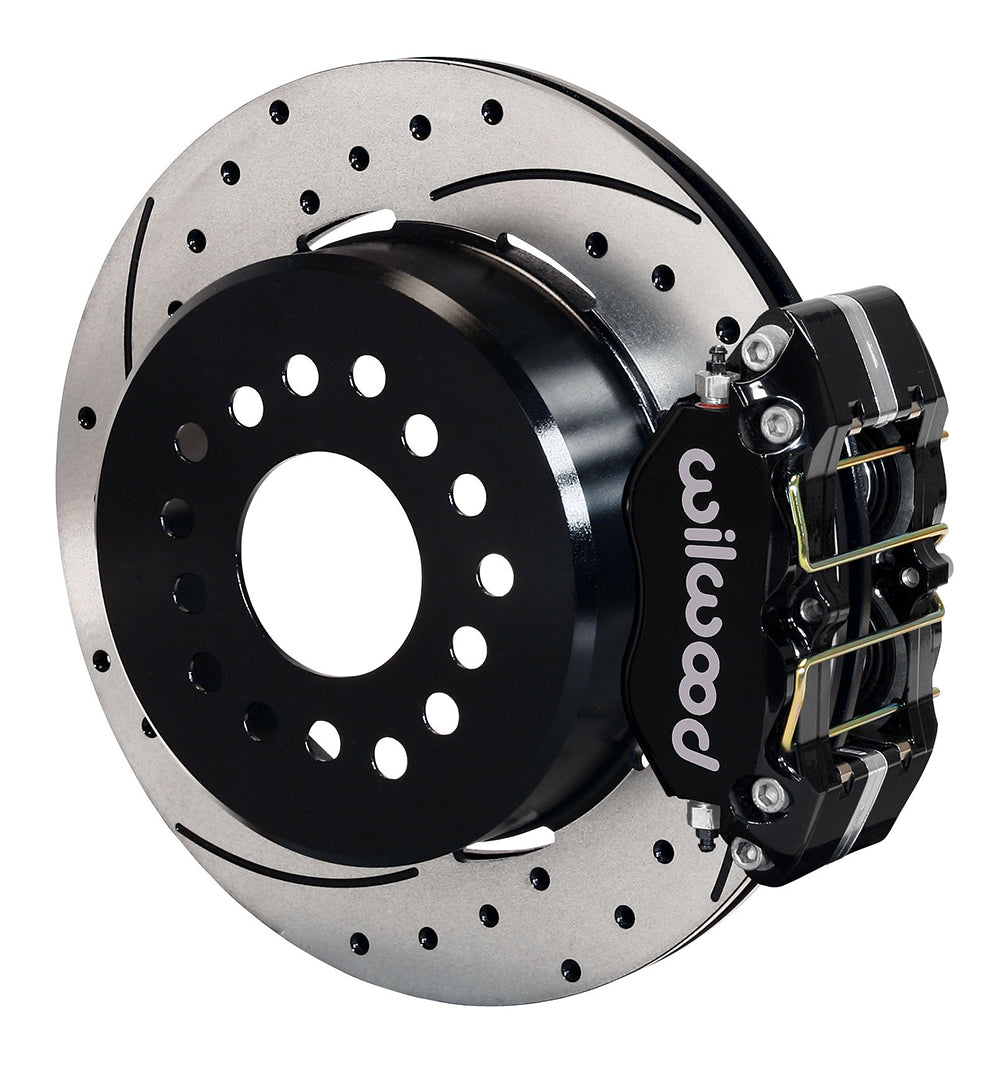

Drilled-and-slotted rotor faces accompany black four-piston dust-boot calipers in this rear package. The kit's Big Ford bracket and 2.36-inch axle offset locate both the hydraulic caliper and the internal parking-brake assembly. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

• Manufacturer part number: 140-13204-D
• Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Stud-hole / clearance provision: 0.52 in; 13.21 mm; diameter provision, not a thread designation
• Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
• Rear axle-end interface: Big Ford; axle/flange offset 2.36 in; 59.94 mm

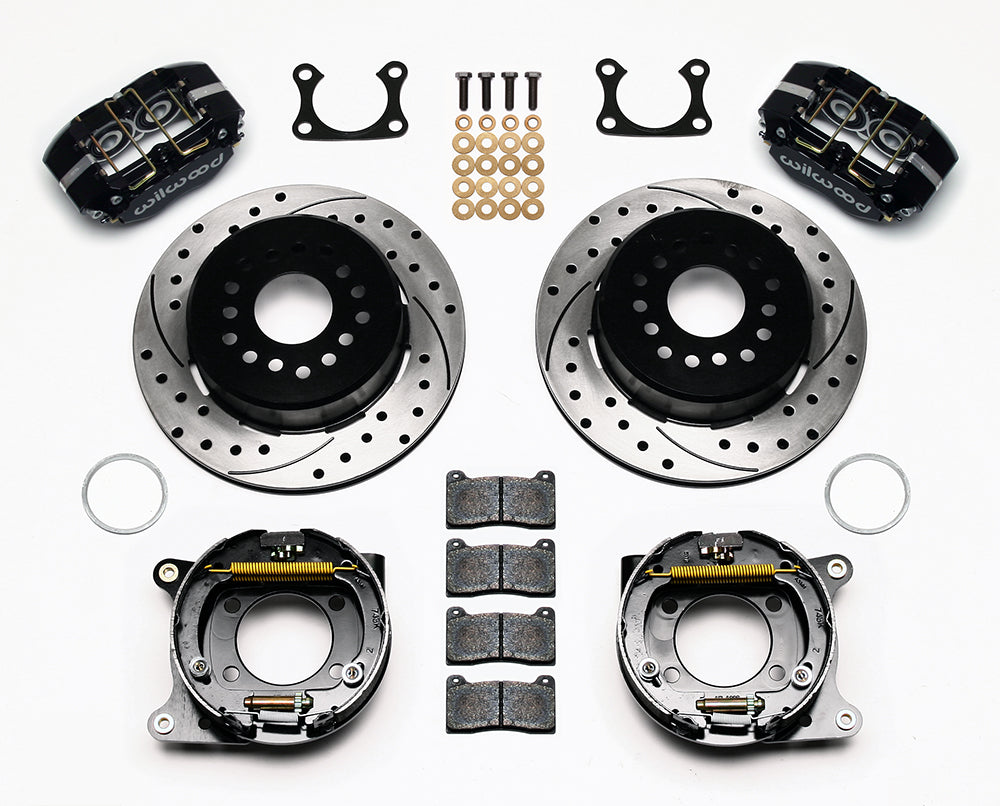

• Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; SRP Drilled & Slotted
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Black calipers; Black Powder Coat

Fitment & Compatibility

Confirm the actual actual rear axle flange, centering register and wheel-stud arrangement. Use DS1000 to check flange clearance and obtain matching hoses and parking-brake cables separately. The application table includes a 1990 Lincoln Town Car row, but Wilwood identifies this kit by axle flange and offset. Stock Town Car axle compatibility is not established; confirm the actual or custom axle measurements before purchase.

In addition to the bracket pattern and measured offset, inspect the axle flange profile. Its outside diameter may not exceed 6.61 inches and it requires the documented 0.050-inch x 45-degree chamfer. The instructions show a 2.80-inch axle register with the applicable centering provision.

Inspect shock-to-brake clearance as well as the axle dimensions; the installation instructions note that some shock arrangements may need modification or relocation.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1000
• Axle measurement worksheet

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.

Review the complete application table below with the year, submodel and installation qualifications above.
