Wilwood Rear Black Dynapro Dust-Boot Kit, Big Ford Flange, 2.36-Inch Offset and Internal Parking Brake

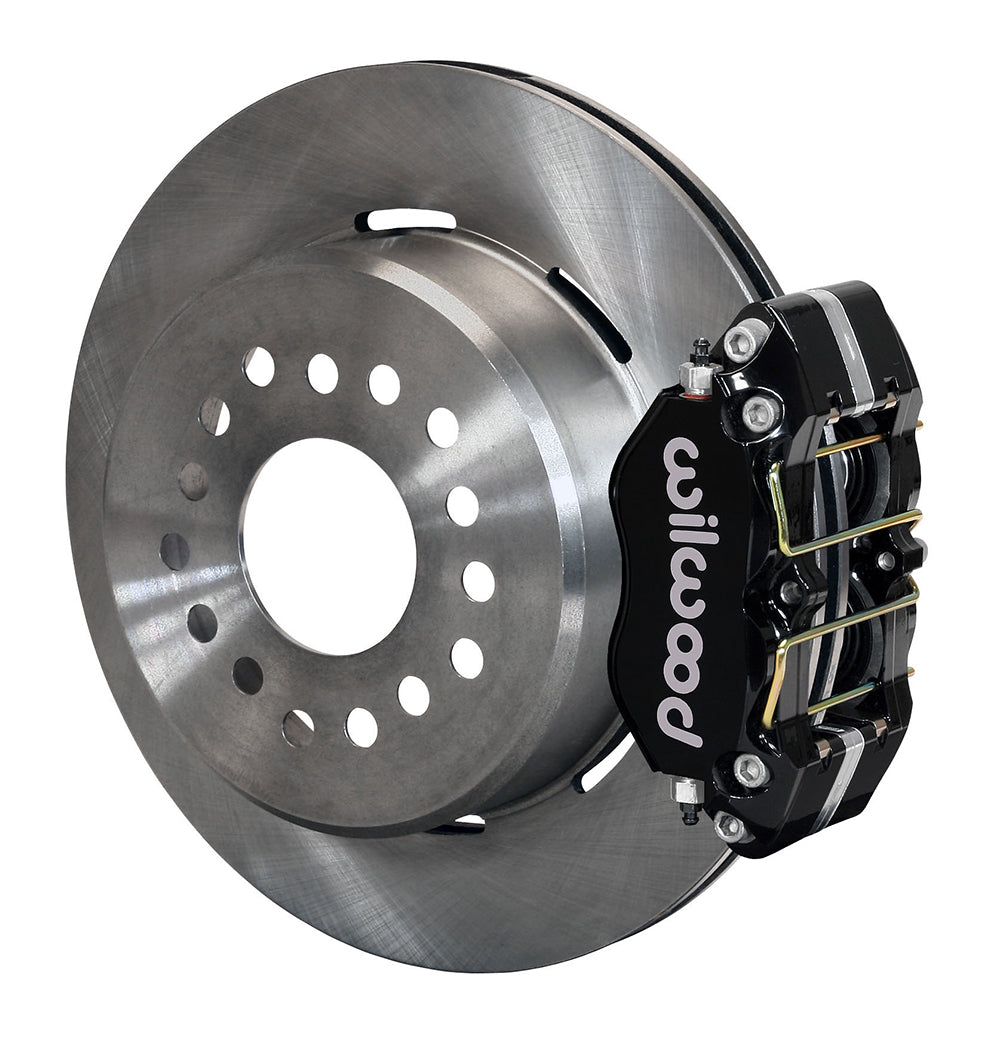

Black Dynapro dust-boot calipers and plain 12.19-inch rotors replace the service brakes at the specified Big Ford axle ends. A drum-style parking brake sits inside each rotor; the 2.36-inch axle offset is essential to caliper alignment. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.

Technical Details

• Manufacturer part number: 140-13204

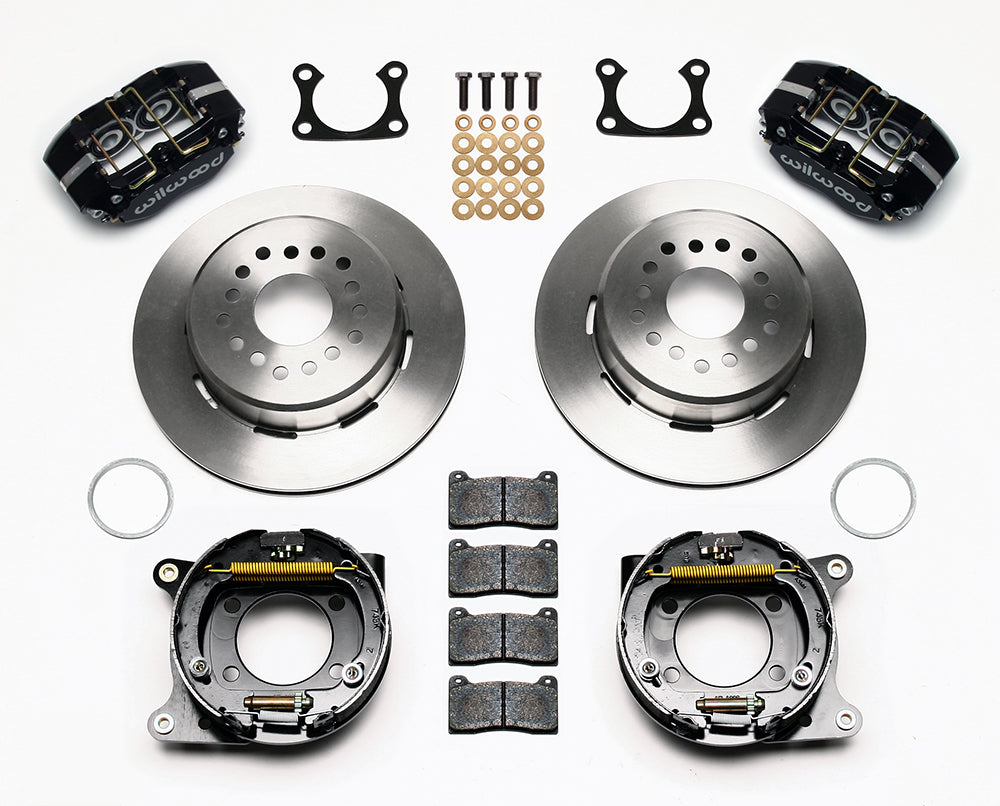

• Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Black calipers; Black Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Stud-hole / clearance provision: 0.52 in; 13.21 mm; diameter provision, not a thread designation
• Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
• Rear axle-end interface: Big Ford; axle/flange offset 2.36 in; 59.94 mm
• Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; Plain Face

Fitment & Compatibility

For the proposed installation, identify the housing flange and measure the 2.36-inch offset. The kit is selected by the axle end, not the rear-end name, and cable hardware is not supplied. The application table includes a 1990 Lincoln Town Car row, but Wilwood identifies this kit by axle flange and offset. Stock Town Car axle compatibility is not established; confirm the actual or custom axle measurements before purchase.

In addition to the bracket pattern and measured offset, inspect the axle flange profile. Its outside diameter may not exceed 6.61 inches and it requires the documented 0.050-inch x 45-degree chamfer. The instructions show a 2.80-inch axle register with the applicable centering provision.

Inspect shock-to-brake clearance as well as the axle dimensions; the installation instructions note that some shock arrangements may need modification or relocation.

Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS1000
• Axle measurement worksheet

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.

Review the complete application table below with the year, submodel and installation qualifications above.
