Wilwood Front Red Dynapro Brake Kit with Plain 12.19-Inch Rotors, Listed GM/Ridetech Pin Spindles

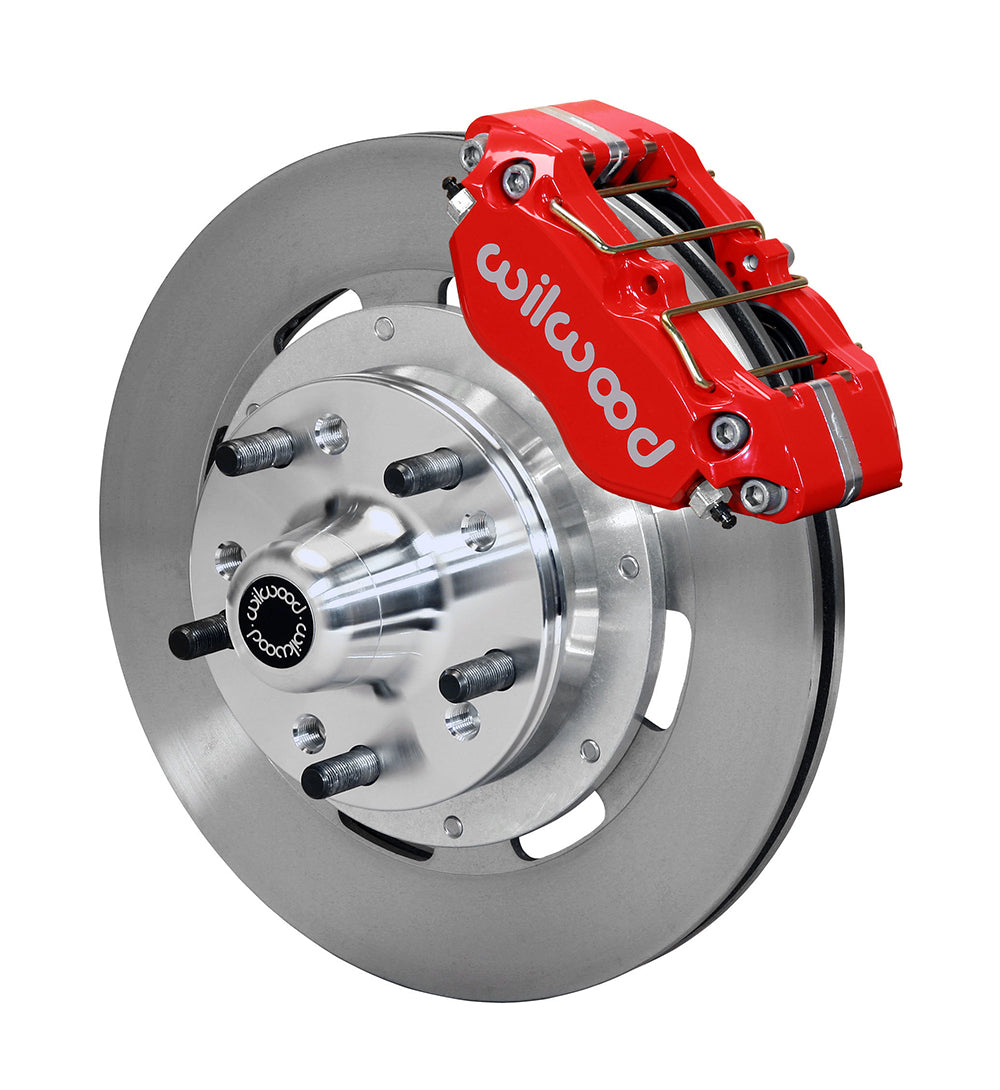

This red front package uses plain iron rotors, four-piston dust-boot calipers and dual-pattern aluminum hubs. Choosing the larger rotor does not remove the need to match the specific spindle, bearing journals and wheel profile. Wilwood Engineering is a Camarillo, California manufacturer founded by Bill Wood in 1977. Disc brake design and manufacturing extend across calipers, brake rotors, master cylinders, valves, fittings and brake lines. Parts for street-performance, specialized applications and motorsport must be selected to meet the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-13203-R
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; Plain Face
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Red calipers; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-stud thread: 1/2-20 in
• Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing

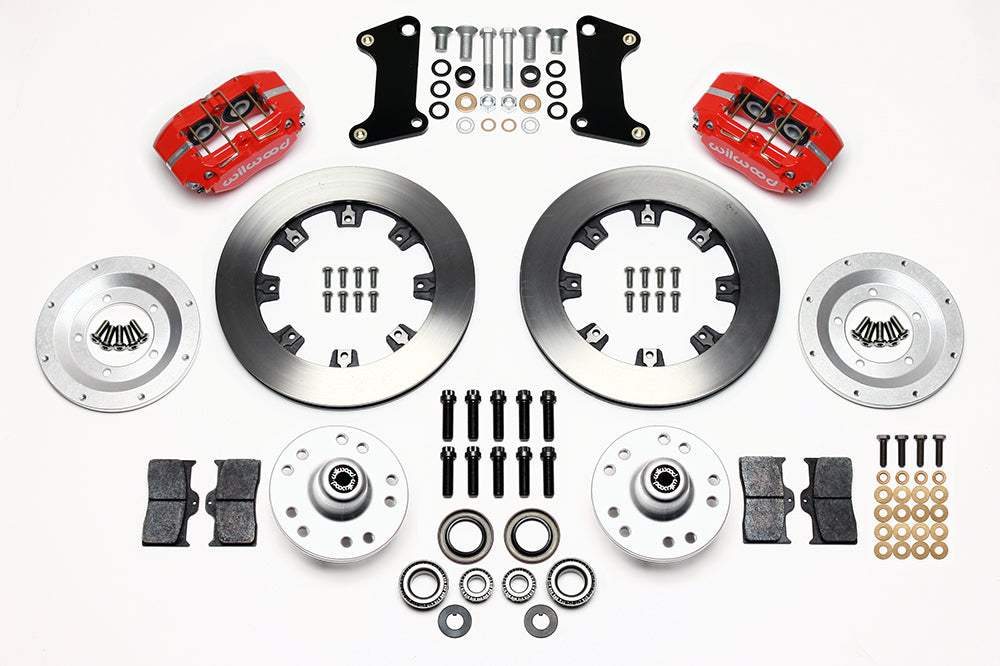

• Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Published wheel-position / hub offset: +.19 inch per side; verify against the documented spindle assembly

Fitment & Compatibility

DS999 identifies the required assembly and any machining. Read every spindle qualification for the chosen vehicle, check the wheel-to-hub contact surface and provide correctly routed hoses separately.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Ford Falcon, Mustang, F-100; Mercury Comet; Chevrolet Chevy II, Corvette, Chevelle, El Camino, Malibu, Camaro, Nova, Monte Carlo; Buick Skylark, Special, Sportwagon, Gran Sport, GS 350, GS 400, GS, GS 455, Apollo; Oldsmobile 442, Cutlass, F85, Vista Cruiser, Cutlass Supreme, Omega; Pontiac Acadian, Beaumont, GTO, LeMans, Tempest, Firebird, Grand Prix, Ventura; GMC Sprint. Application distinctions include w/ Ridetech Pin Spindle; Disc Brake Spindle; Drum Brake Spindle; Drum Brake Front; Base / Base; Z/28 w/ 4 Wheel Disc; w/ O.A.I. Drum Brake Spindles; Drum Brake Spindle w/o O.A.I.

Check how the wheel rests on the hub before evaluating spoke clearance. Part 300-11961 (sold separately) is the specified 6.60-inch-diameter, 0.20-inch-thick steel spacer for overhanging wheel contact surfaces. The separate 300-10716 hub shield is recommended for stamped steel wheels without overhang and measures 6.15 inches by 0.09 inch.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.

An independently added universal parking-brake cable system may require cable or vehicle modifications. It is separate from this front service-brake kit.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS999

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.

Review the complete application table below with the year, submodel and installation qualifications above.
