Wilwood Front Black Dynapro Hub Kit with 12.19-Inch SRP Rotors, GM and Ridetech Pin Spindle Applications

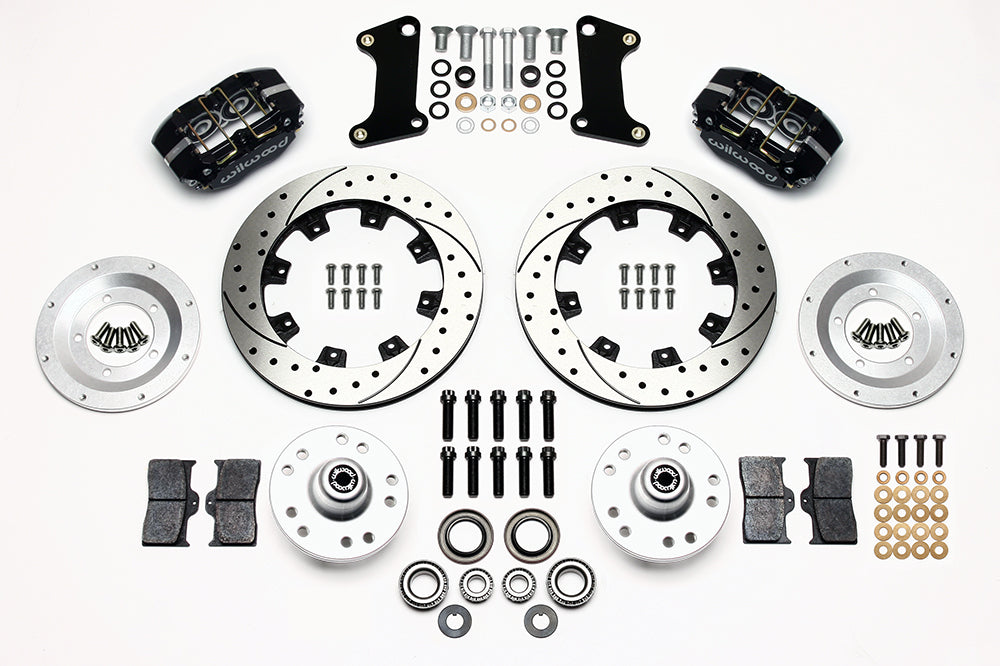

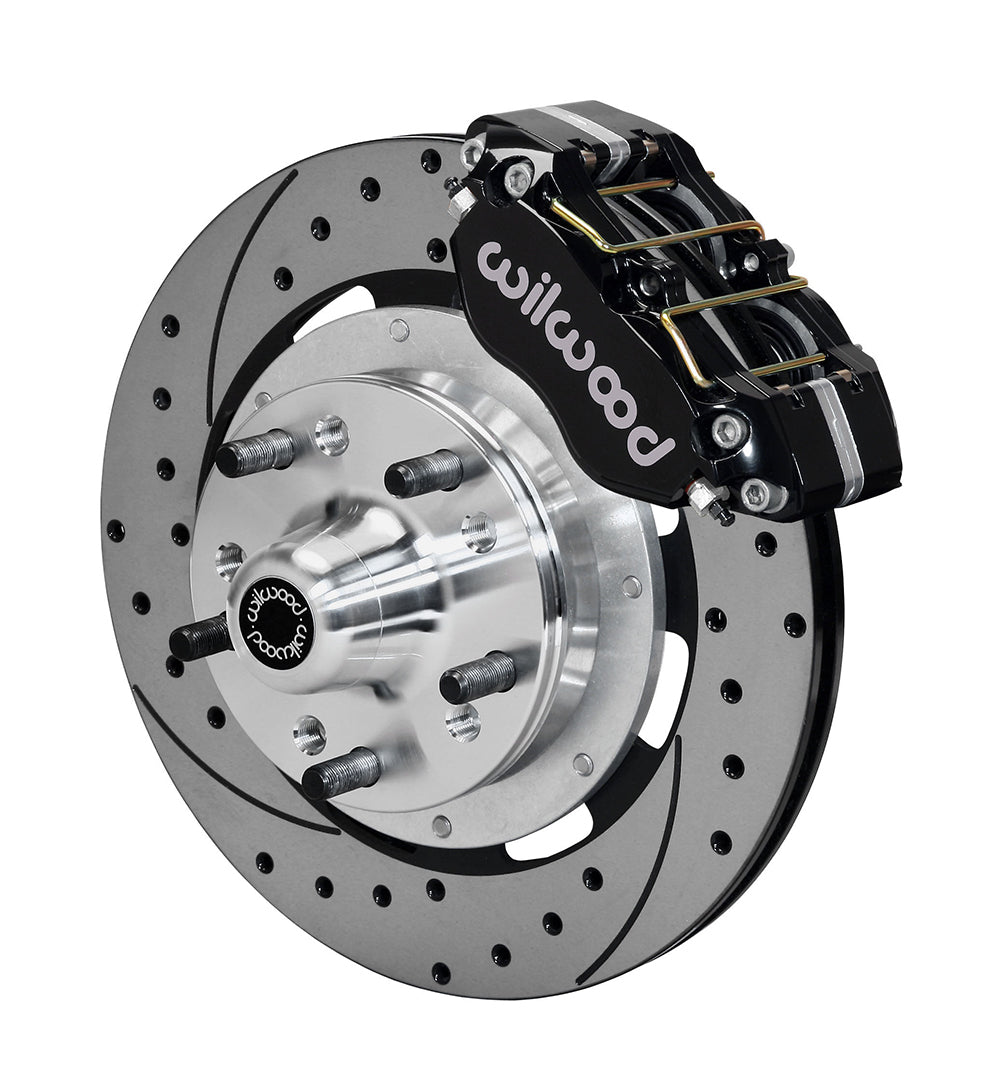

This front kit combines a drilled-and-slotted rotor surface with four-piston black Dynapro calipers and aluminum hubs. Its 12.19-inch diameter changes the wheel envelope compared with the smaller 11-inch conversion. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer part number: 140-13203-D
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Wheel-stud thread: 1/2-20 in
• Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
• Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Published wheel-position / hub offset: +.19 inch per side; verify against the documented spindle assembly
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; SRP Drilled & Slotted
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Black calipers; Black Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm

Fitment & Compatibility

The exact spindle application and bearing arrangement govern installation. Follow DS999 for early drum-spindle modifications and the required wheel-face spacer or steel-wheel shield where applicable.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Ford Falcon, Mustang, F-100; Mercury Comet; Chevrolet Chevy II, Corvette, Chevelle, El Camino, Malibu, Camaro, Nova, Monte Carlo; Buick Skylark, Special, Sportwagon, Gran Sport, GS 350, GS 400, GS, GS 455, Apollo; Oldsmobile 442, Cutlass, F85, Vista Cruiser, Cutlass Supreme, Omega; Pontiac Acadian, Beaumont, GTO, LeMans, Tempest, Firebird, Grand Prix, Ventura; GMC Sprint. Application distinctions include w/ Ridetech Pin Spindle; Disc Brake Spindle; Drum Brake Spindle; Drum Brake Front; Base / Base; Z/28 w/ 4 Wheel Disc; w/ O.A.I. Drum Brake Spindles; Drum Brake Spindle w/o O.A.I.

Check how the wheel rests on the hub before evaluating spoke clearance. Part 300-11961 (sold separately) is the specified 6.60-inch-diameter, 0.20-inch-thick steel spacer for overhanging wheel contact surfaces. The separate 300-10716 hub shield is recommended for stamped steel wheels without overhang and measures 6.15 inches by 0.09 inch.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.

An independently added universal parking-brake cable system may require cable or vehicle modifications. It is separate from this front service-brake kit.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS999

Our team at PMB Performance has over 20 years of parts and fitment experience. The existing component number and brake-system details help us check the match.

Review the complete application table below with the year, submodel and installation qualifications above.
